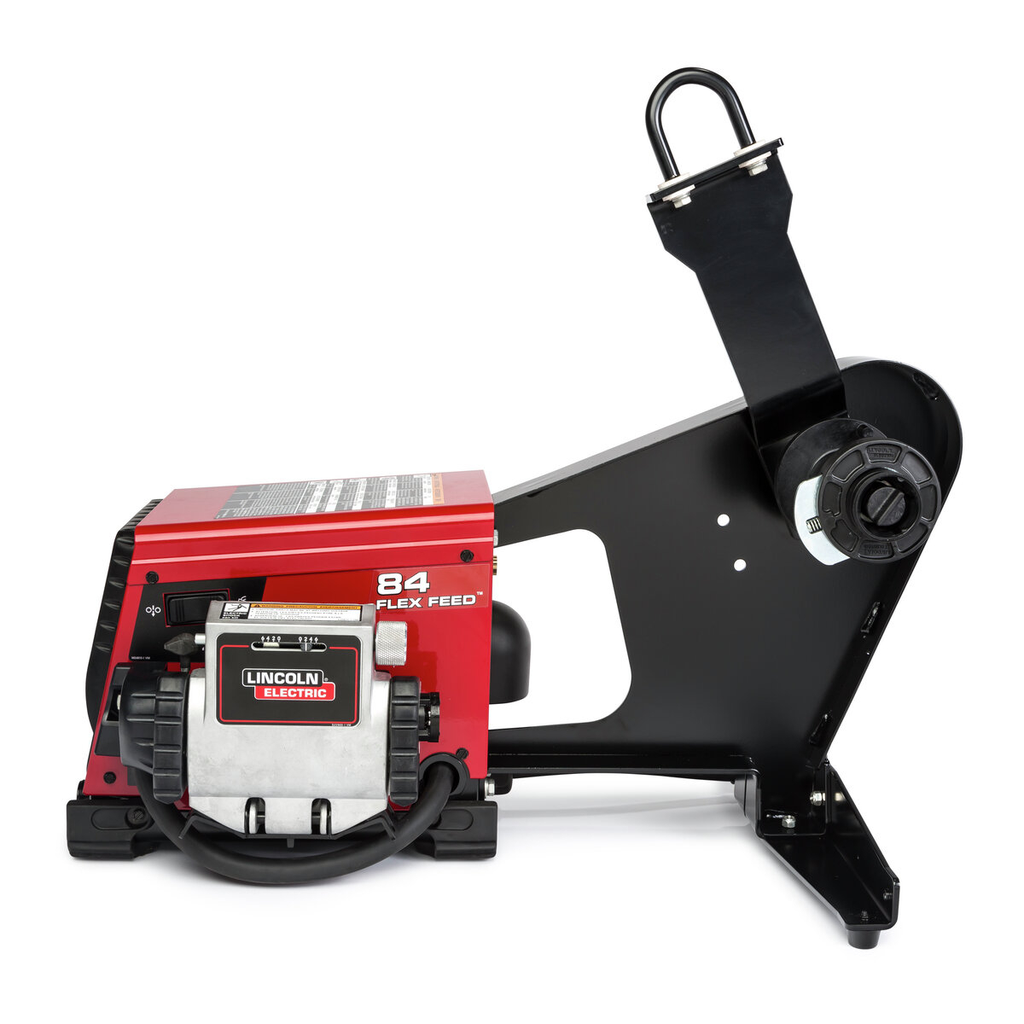

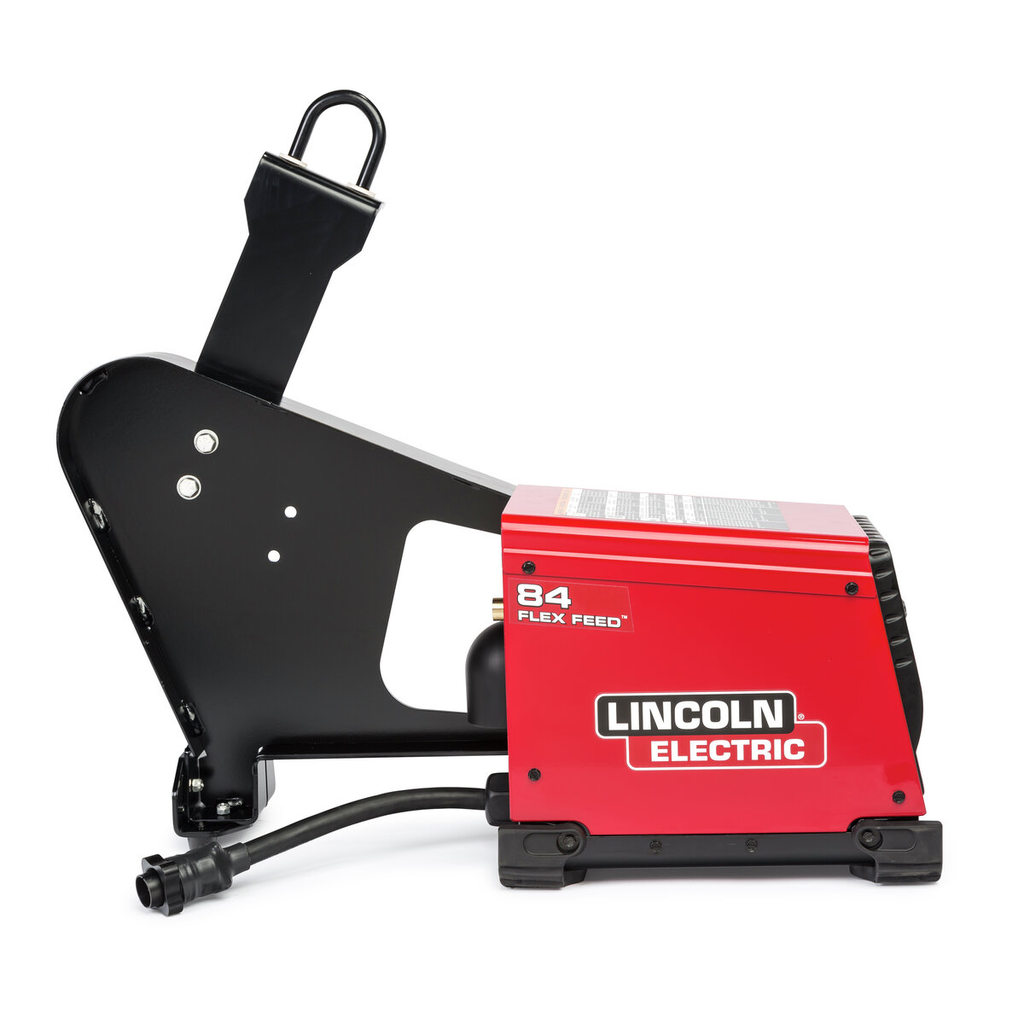

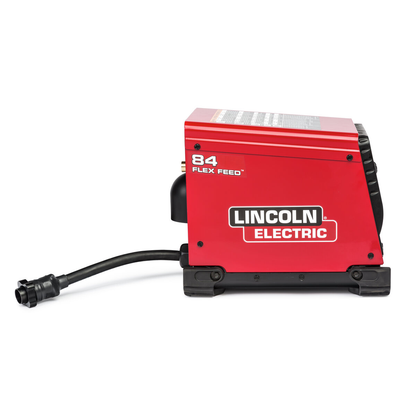

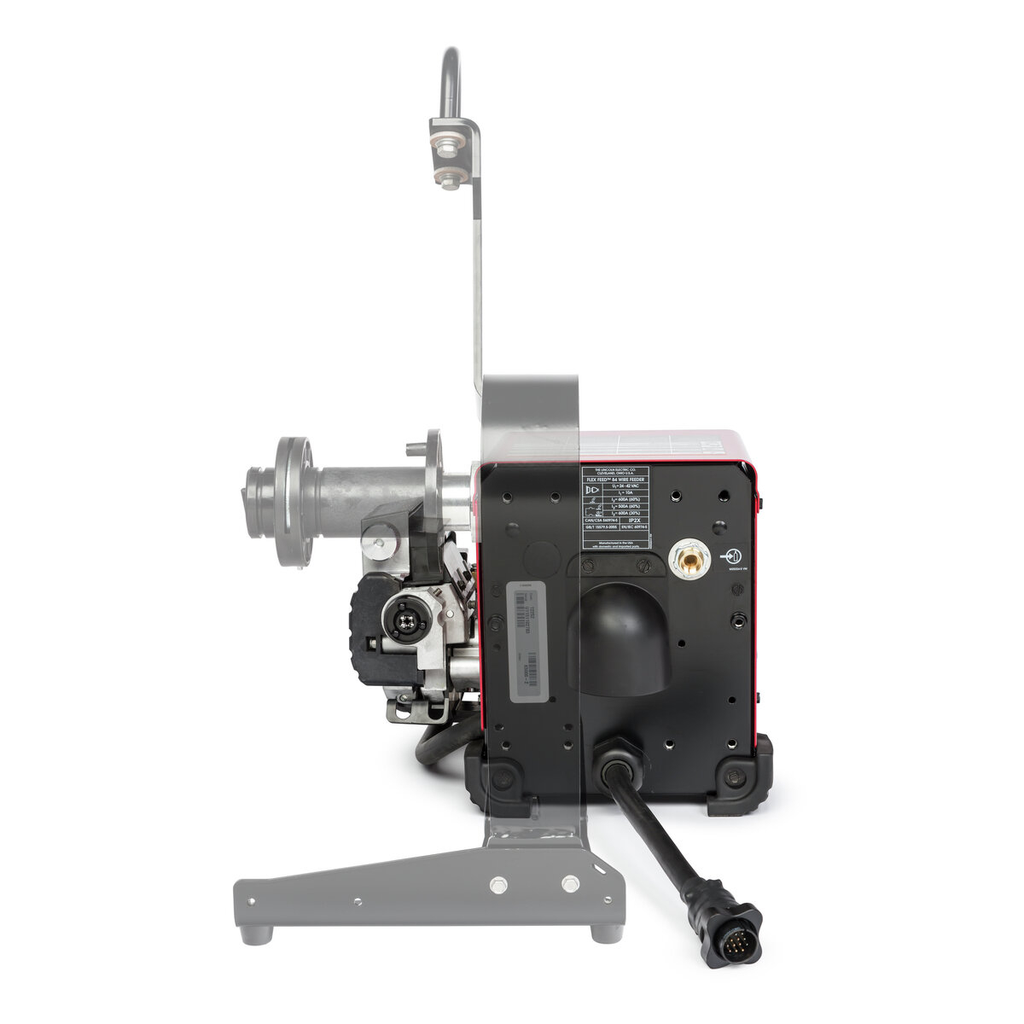

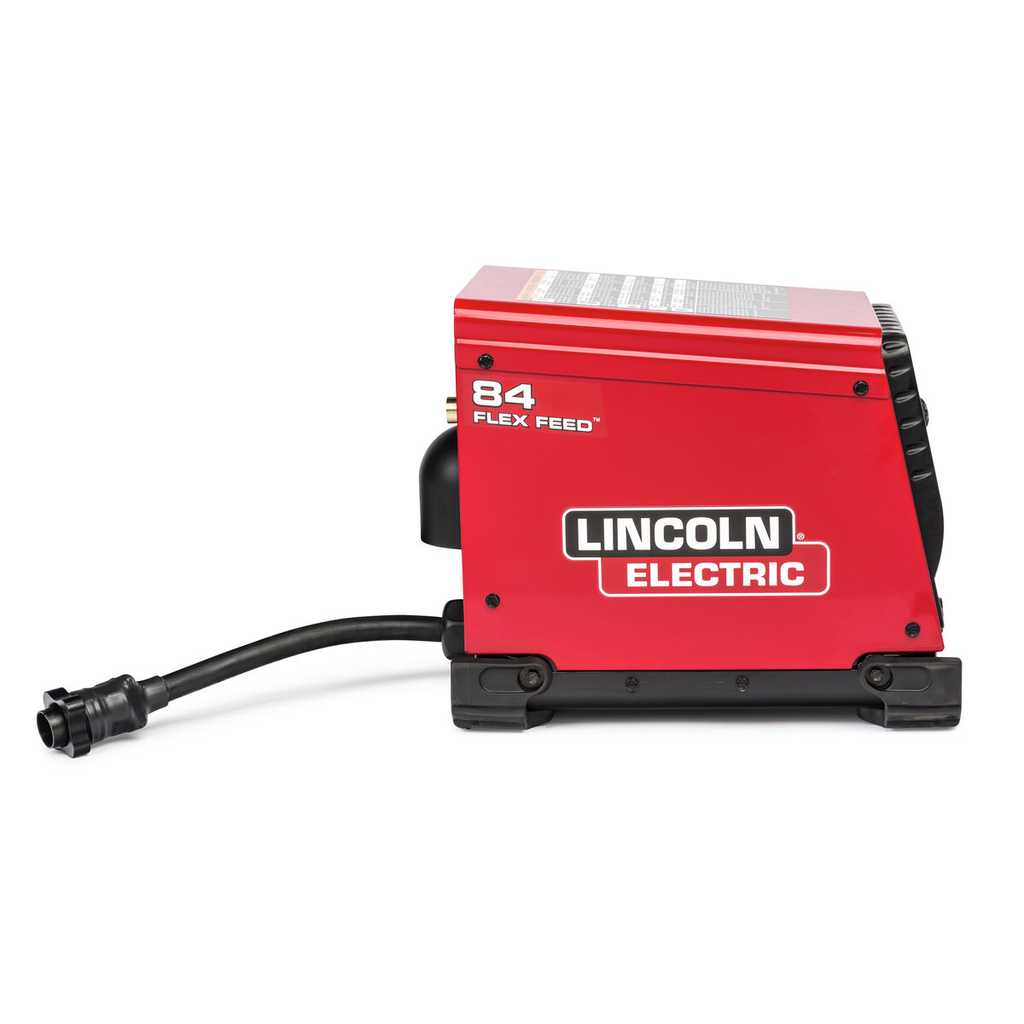

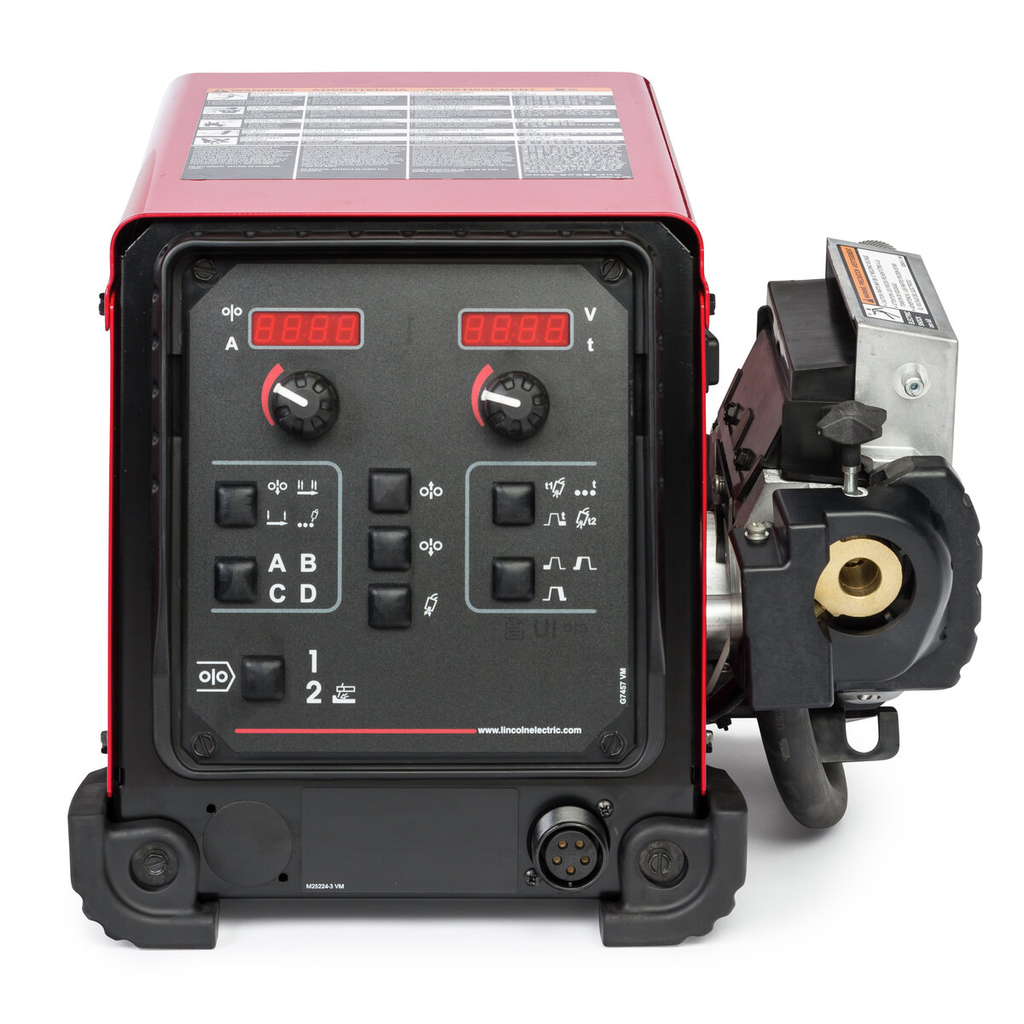

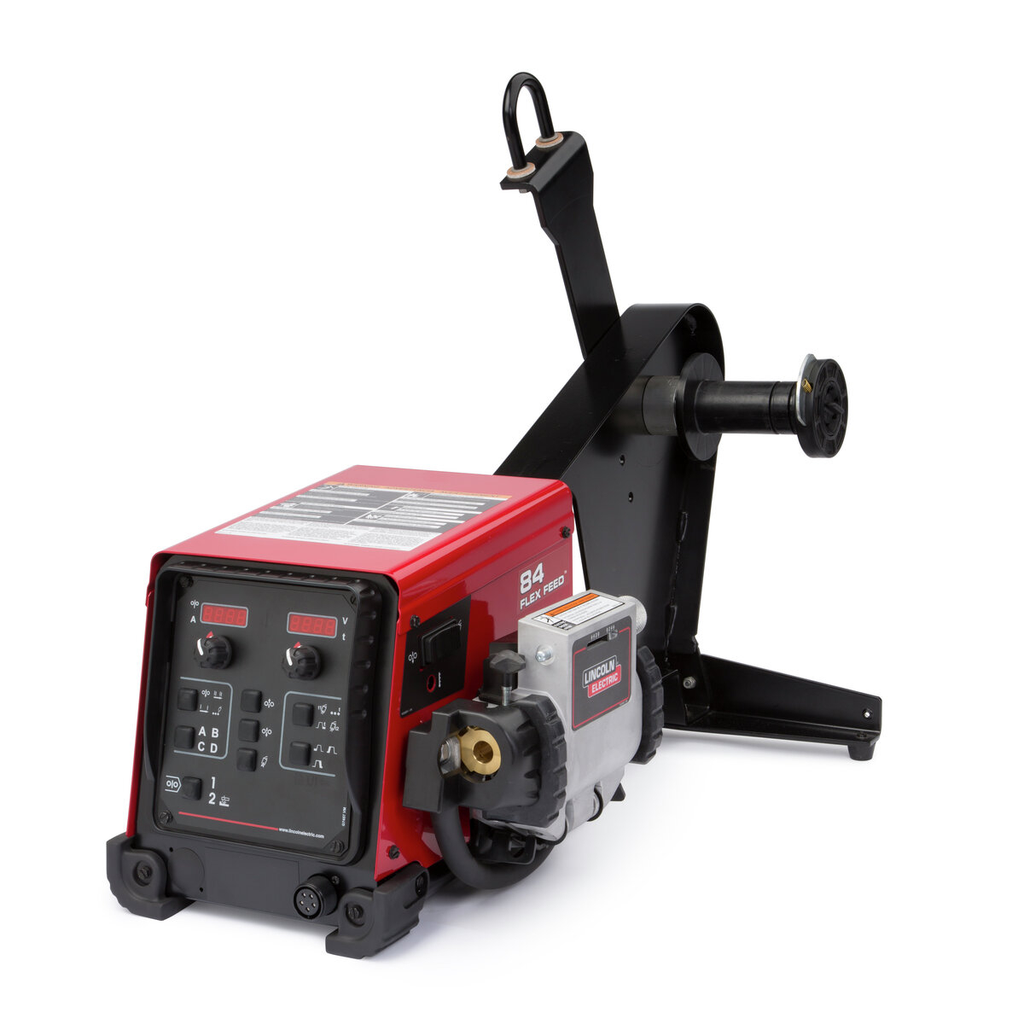

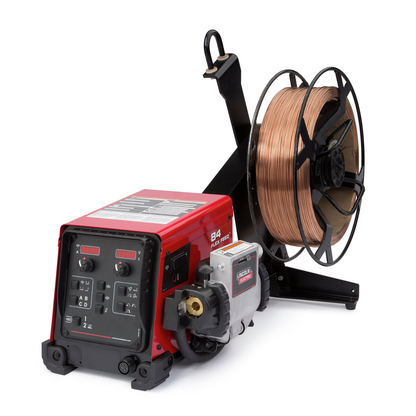

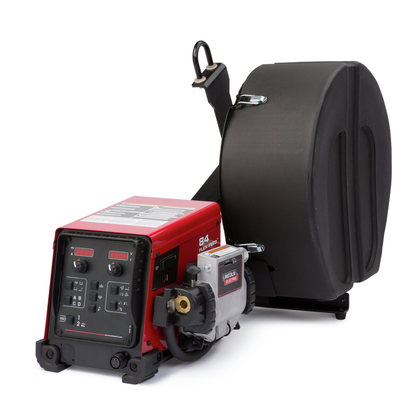

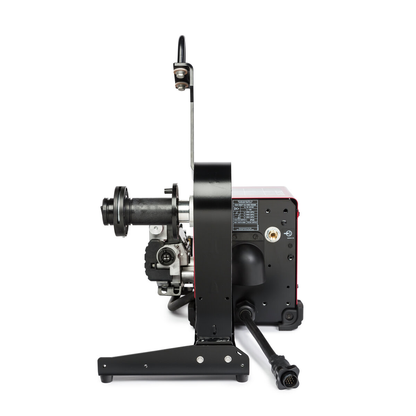

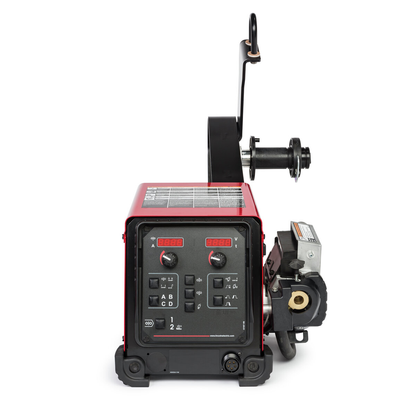

Lincoln Electric, K5000-2, Bench Wire Feeder, Single, 600A Max Output, 3/32 in Max Wire Diameter, 28 in Length

Rugged and reliable engineering -Consistent feeding over long conduit runs -Handles large-diameter wires (up to 3/32 in. (2.4 mm) solid or .120 in. (3.2 mm) cored wire), well beyond the competition’s 5/64-in. capacity -Gun adapters provide superior electrical connections reducing voltage drops and simplifying connections -Wire drive circuit board is encapsulated for maximum protection from the elements Superior process control -Digital preset for voltage and wire feed speed -Save repeated procedures in up to four user memories -Process limits can be set and passcode secured -Displays actual voltage and current while welding Safety with every process -Single wire drive model feeders can be ordered with an electrically isolated stud for arc gouging operations -Dual wire drive model can be ordered with a Power Path™ contactor that electrically isolates the non-active wire drive and gun -User selectable wire retract function physically retracts the wire back into the nozzle to prevent operator injury Advanced MaxTrac® wire drive design -Rugged cast aluminum feed plate protects wire and ensures consistent wire feeding -Patented tool-less drive rolls make adjustments and maintenance quick and easy -Patented tool-less split wire guides ensure uninterrupted feed and prevents birdnesting -Modular design provides flexibility of configurations Configure for single, dual, bench or boom setups (convert as workspace needs change) Two available wire reel stands; standard (up to 44-lb. spools) or heavy duty (up to 60-lb. coils or spools) Built-in interface for hard automation

Features

• Modular design provides flexibility of configurations
• Four Memory locations for saving and quick recall of weld schedules.
• Safety with every process
• Advanced MaxTrac® 4-roll wire drive design
• Single wire drive

What's Included?

• Heavy duty wire reel stand, Gun adapter Standard #2 - #4 (K3345-1), Control cable (K1797-10), Inlet bushing (K1551-2)

• Max Rated Output: 600 A
• Input Voltage: 24-42 VAC
• Max Wire Diameter (Solid): 3/32 in (2.4 mm)
• Max Wire Diameter (Cored): 0.120 in (3.2 mm)
• Wire Feeders Processes: MIG, Flux Cored
• Number of Driven Rolls: 4 rolls
• Drive Type: Single wire drive
• Wire Drive Design: Advanced MaxTrac 4-roll
• Length: 28 in (711 mm)
• Width: 15.5 in (394 mm)
• Height: 16.5 in (419 mm)
• Weight: 56 lb (25.4 kg)
• Material: Cast Aluminum Feed Plate
• Wire Reel Stand Capacity: up to 60 lb (30 kg)
• Wire Reel Stand: Heavy duty
• Power Source to Feeder Communication Connector Type: 14-pin
• Communication Technology: analog
• Feeder Type: Bench
• Configuration: Single
• Feedhead Configuration: Single
• Wire Configuration: Single
• Gun Bushing: Tweco #2-#4
• UI Type: Meters
• Country of Origin: United States
