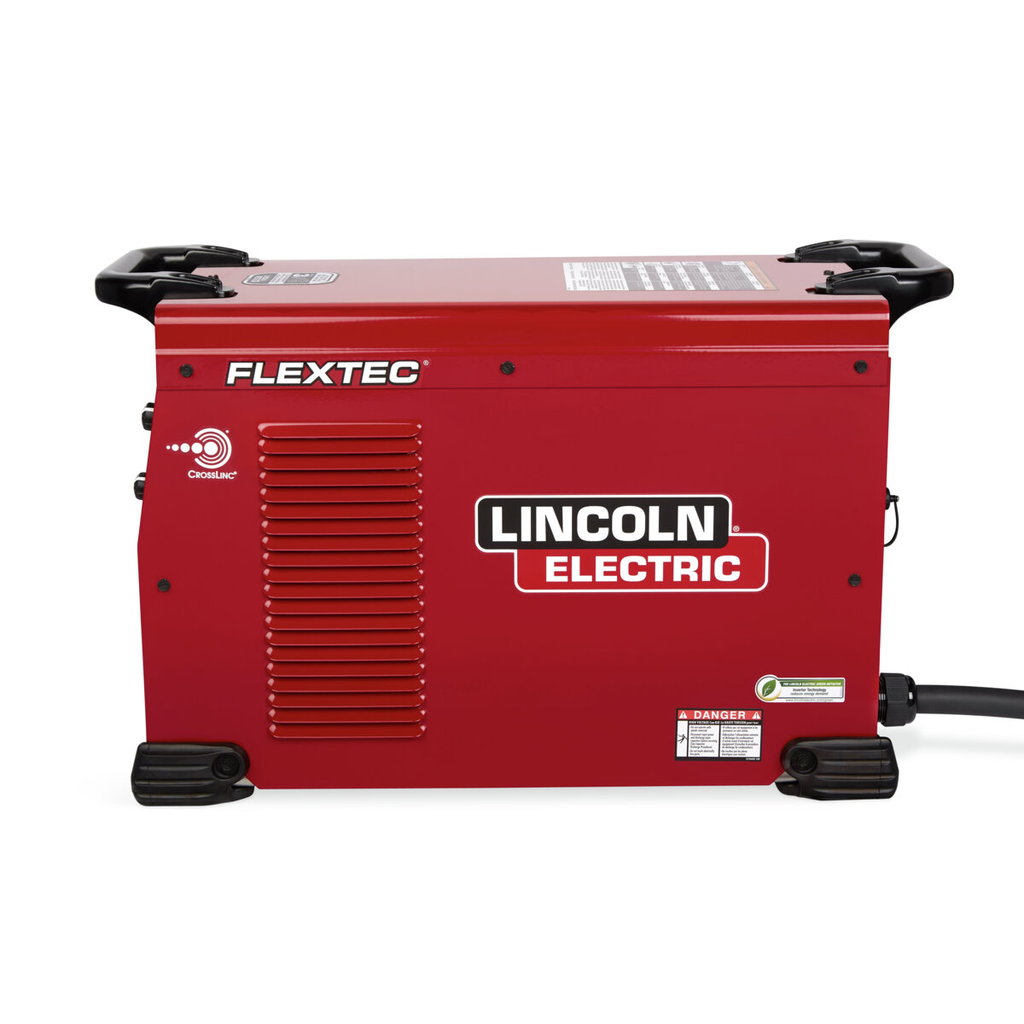

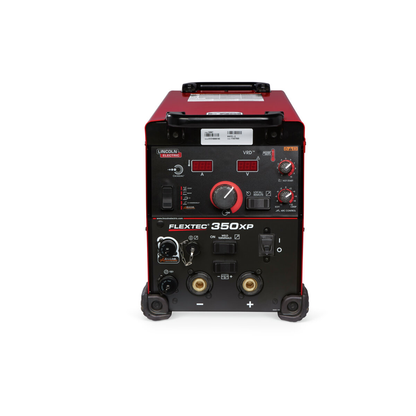

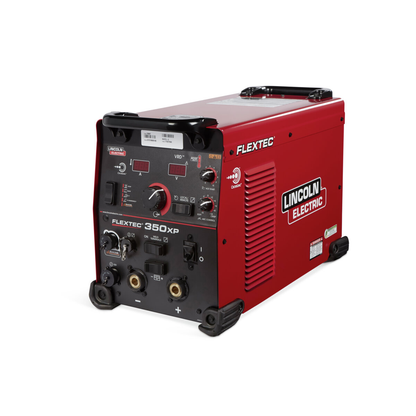

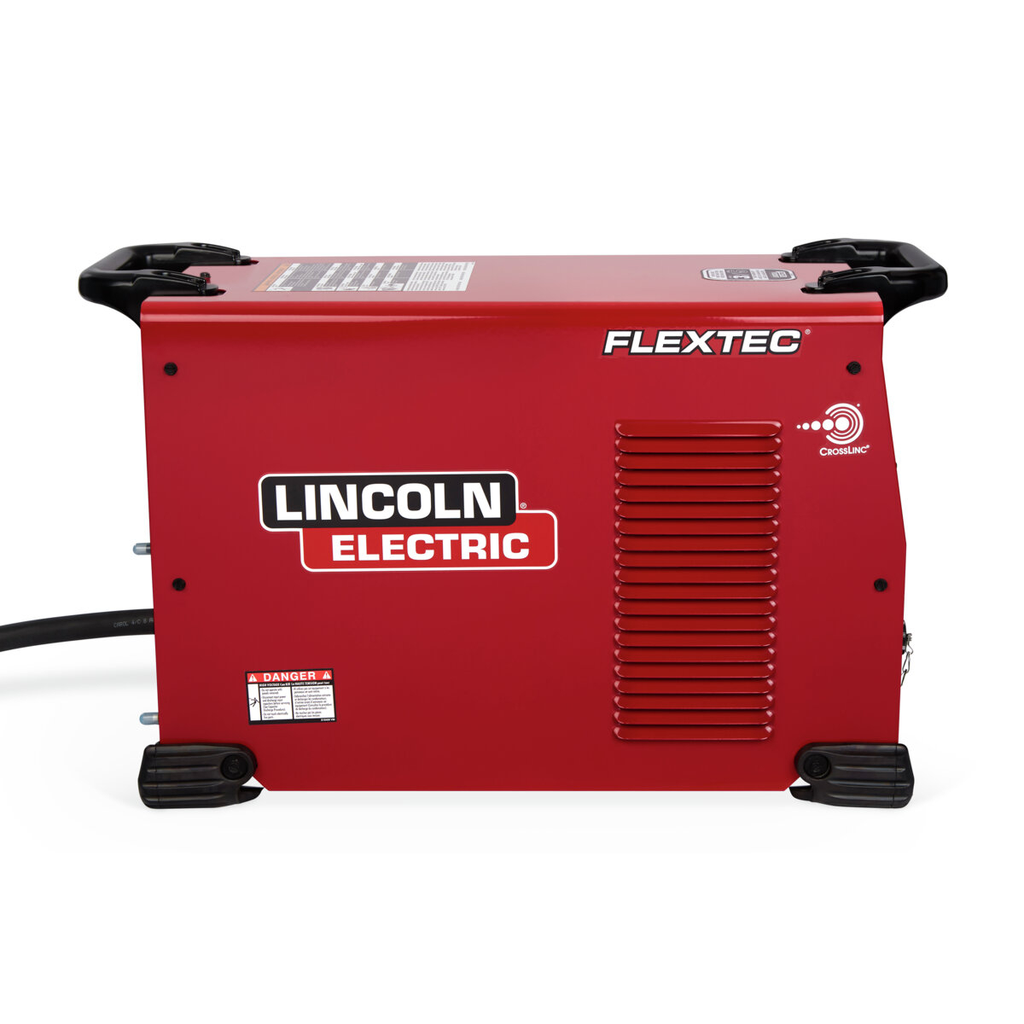

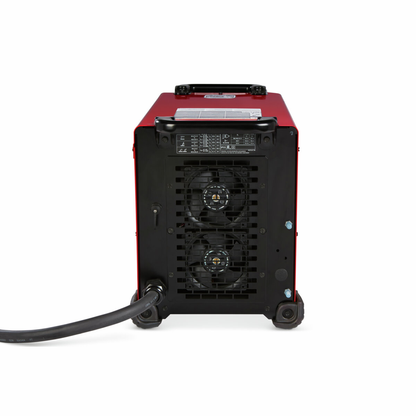

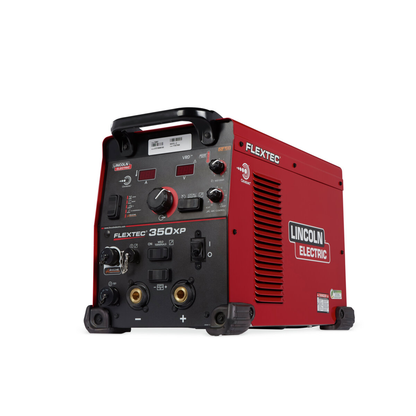

Lincoln Electric, K4272-2, Welding Machine, 350A Output; 380-575V; Inverter/Chopper; 3-Phase

The Flextec 350XP model is everything the 350X Construction model is and more. The 350XP model is not only portable and powerful, it is also even more flexible. With standard amphenol connections supporting most Lincoln Electric wire feeders, the Flextec 350XP is capable of supporting most arc welding processes. This new model 350XP now also suports Pulsed MIG welding processes when combined with a supporting Lincoln digital ArcLink wire feeder such as a Power Feed 84.

Features

• Simple - Streamlined operator panel minimizes setup time
• Reliable - Components designed to run cool for long life in high temperature environments
• Includes CrossLinc Technology
• Pulsed MIG modes unlocked when paired with a compatible Arclink capable feeder.
• Flexible - Compatible with across-the-arc, CrossLinc™, 14-pin analog and 5-pin digital wire feeders
• Supports 14-pin and 5-pin (ArcLink) wire feeders as well as CrossLinc and Across-the-Arc

What's Included?

• (1) Flextec® 350XP, (1) Input Power Cord 8.5 ft (2.6m)

• Input Voltage: 380-575 VAC, 3-Phase, 50/60 Hz
• Rated Output Current: 300A
• Rated Output Voltage: 32V
• Duty Cycle: 100%
• Output Range: 5-425A Max OCV 80V DC
• Dimensions: 17 x 13 x 24 in (432 x 330 x 609 mm)
• Weight: 82 lb (37.1 kg)
• Rated Gouging Carbon Diameter: 1/4 in (6.5 mm)
• Polarity: DC
• Welding Technology: Inverter/Chopper
• Amphenol Pins (Connector Type): 5; 12; 14
• Remote Control Options: CrossLinc; Wired
• Equipment Technologies: ArcLink; CrossLinc; USB
• Ingress Protection Rating: IP23
• Work Lead Connector Type: Tweco
• Country of Origin: United States
• Temperature Rating at Rated Output (deg C): 55
• Machines Communication Technology: CrossLinc; ArcLink
• Welding Processes Supported: Stick (SMAW), TIG (GTAW), MIG (GMAW), Pulsed MIG (GMAW-P), FCAW (Flux-Cored), Gouging
