Lincoln Electric, K4267-3, Portable Wire Feeder, 15-110 VDC; Max Wire Diameter: 5/64 in; 2 Rolls; CrossLinc Technology

FULL CONTROL OF YOUR SYSTEM WITH NO CONTROL CABLESSafety Reduce job site clutter by removing cumbersome control cables Eliminate unnecessary movement of personnel across the worksite Eliminate the need to drag control cables around the siteQuality Full voltage control at the feeder results in the correct settings for every weld Accurately compensate for voltage drop across long cable runs Eliminate unintentional machine adjustmentsProductivity Set up faster with fewer cable connections Eliminate helpers or trips to the power source when making setting adjustments Minimize rework with easy settings adjustmentReliability Fully encapsulated and environmentally protected electronics Replaceable flame resistant case can be installed in under five minutesCROSSLINC™ TECHNOLOGY: SOLVING SITE WELDING ISSUESWorker safety, weld quality, productivity and equipment reliability come to mind when welding on site or on large structures. In these environments, it is typical for the operator to work closely with a rugged, compact and lightweight wire feeder, connected to a weather-resistant power source hundreds of feet away. Until now, portable wire feeders have been available in two configurations: basic ‘across-the-arc’ models or portable feeders equipped with an added control cable.‘Across-the-arc’ models are powered by the weld cable. This configuration provides benefits of fewer cables running back to the power source, but voltage control at the point-of-use is not possible.The addition of a control cable to the system allows the operator to adjust voltage at the point-of-use, but these cables can be costly and add additional complexity to the production environment.There has to be a better way.

Features

• CrossLinc technology provides voltage control on the feeder when paired with a CrossLinc compatible power source. No control cables are needed.
• Integrated flowmeter included
• TVT compensates for voltage drop across long weld cable lengths, allowing you to weld with the voltage you set at the feeder
• Portable and light weight field construction wire feeder
• Included Tweco® or Twistmate®(Dinse®) input power connection. Flowmeter and non-flowmeter models available.

What's Included?

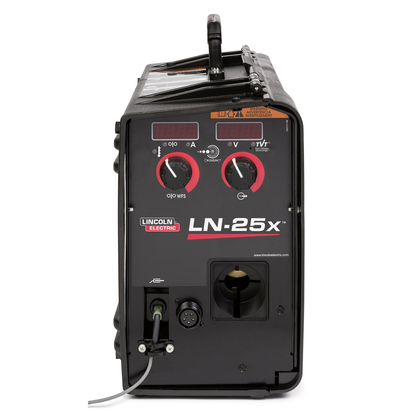

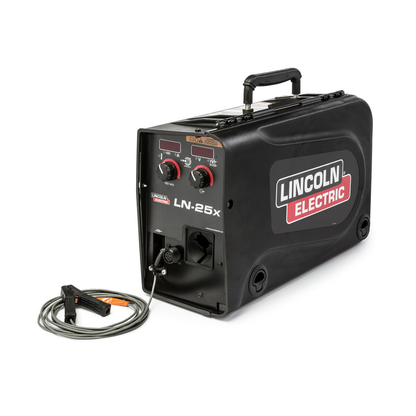

• LN-25X wire feeder w/TVT Tweco style plug on electrode cable , Flow meter integrated into the machine

• Input Voltage: 15-110 VDC
• Max Rating: 450 A @ 60%
• Wire Feed Speed Range: 50-700 ipm (1.3-17.8 m/min)
• Max Wire Diameter (Solid): 1/16 in (1.6 mm)
• Max Wire Diameter (Cored): 5/64 in (2 mm)
• Wire Size Range: .023-1/16 in (0.6-1.6 mm) solid, .030-5/64 in (0.9-2.0 mm) cored, .035-1/16 in (0.9-1.6 mm) aluminum
• Length: 23.2 in (589 mm)
• Width: 8.7 in (221 mm)
• Height: 15 in (381 mm)
• Weight: 37 lb (16 kg)
• Number of Driven Rolls: 2 rolls
• Feedhead Configuration: Single
• Gun Bushing: Tweco #2-#4
• Feeder Type: Portable
• Wire Configuration: Single
• Max Spool Diameter: 300 mm
• Wire Feeders Processes: MIG; Flux Cored
• Communication Technology: CrossLinc
• Equipment Technologies: CrossLinc
• UI Type: Simple
• Ingress Protection Rating: IP23
• Country of Origin: United States
• Warranty Length: 3 Years
