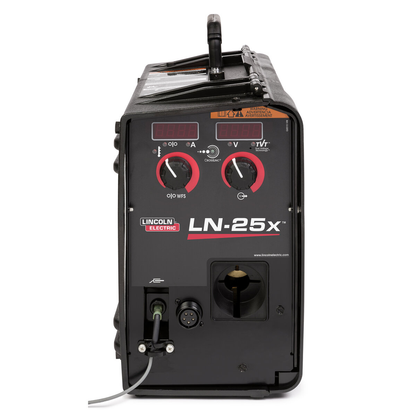

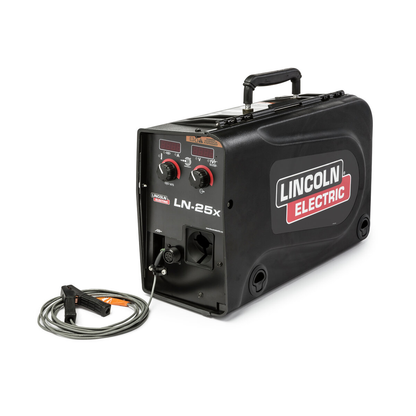

Lincoln Electric, K4267-2, Wire Feeder, Portable; CrossLinc Technology, 400-499 A, 1/16 in Max Wire Diameter

FULL CONTROL OF YOUR SYSTEM WITH NO CONTROL CABLESSafetyReduce job site clutter by removing cumbersome control cablesEliminate unnecessary movement of personnel across the worksiteEliminate the need to drag control cables around the siteQualityFull voltage control at the feeder results in the correct settings for every weldAccurately compensate for voltage drop across long cable runsEliminate unintentional machine adjustmentsProductivitySet up faster with fewer cable connectionsEliminate helpers or trips to the power source when making setting adjustmentsMinimize rework with easy settings adjustmentReliabilityFully encapsulated and environmentally protected electronicsReplaceable flame resistant case can be installed in under five minutesCROSSLINC™ TECHNOLOGY: SOLVING SITE WELDING ISSUESWorker safety, weld quality, productivity and equipment reliability come to mind when welding on site or on large structures. In these environments, it is typical for the operator to work closely with a rugged, compact and lightweight wire feeder, connected to a weather-resistant power source hundreds of feet away. Until now, portable wire feeders have been available in two configurations: basic ‘ across-the-arc’ models or portable feeders equipped with an added control cable.‘ Across-the-arc’ models are powered by the weld cable. This configuration provides benefits of fewer cables running back to the power source, but voltage control at the point-of-use is not possible.The addition of a control cable to the system allows the operator to adjust voltage at the point-of-use, but these cables can be costly and add additional complexity to the production environment.There has to be a better way.

What's Included?

• LN-25X with Internal Contactor, Gas Solenoid, Arc Sensing Lead & Clip, 2 Gun Bushings (K1500-2 installed
• K1500-1 loose)

Features

• TVT compensates for voltage drop across long weld cable lengths, allowing you to weld with the voltage you set at the feeder
• Included Tweco® input power connection.
• Portable and light weight field construction wire feeder
• CrossLinc technology provides voltage control on the feeder when paired with a CrossLinc compatible power source. No control cables are needed.
• No flowmeter.

• Output Current: 450 A @ 60% duty cycle
• Input Voltage: 15-110 VDC
• Wire Feed Speed Range: 50-700 ipm (1.3-17.8 m/min)
• Max Wire Diameter Solid: 1/16 in (1.6 mm)
• Max Wire Diameter Cored: 5/64 in (2.0 mm)
• Wire Diameter Aluminum: .035-1/16 in (0.9-1.6 mm)
• Output Mode: CV; 2-roll
• Wire Configuration: Single
• Feeder Type: Portable
• Gun Bushing: Tweco #2-#4
• Wire Feeder Supply Voltage: 15-110 VDC
• Number of Driven Rolls: 2 rolls
• Product Dimensions: 15 x 8.7 x 23.2 in (381 x 221 x 589 mm)
• Weight: 37 lb (16.8 kg)
• Max Spool Diameter: 300 mm
• Material: Flame resistant case
• Ingress Protection Rating: IP23
• Communication Technology: CrossLinc
• UI Type: Meters
• Country of Origin: United States
• Warranty Length: 3 Years
