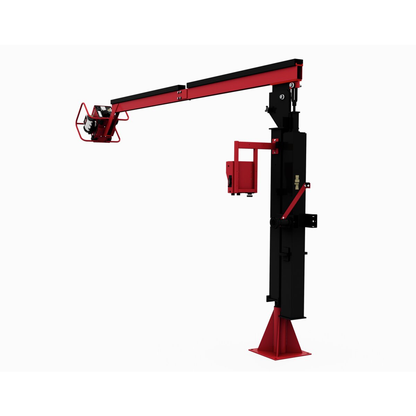

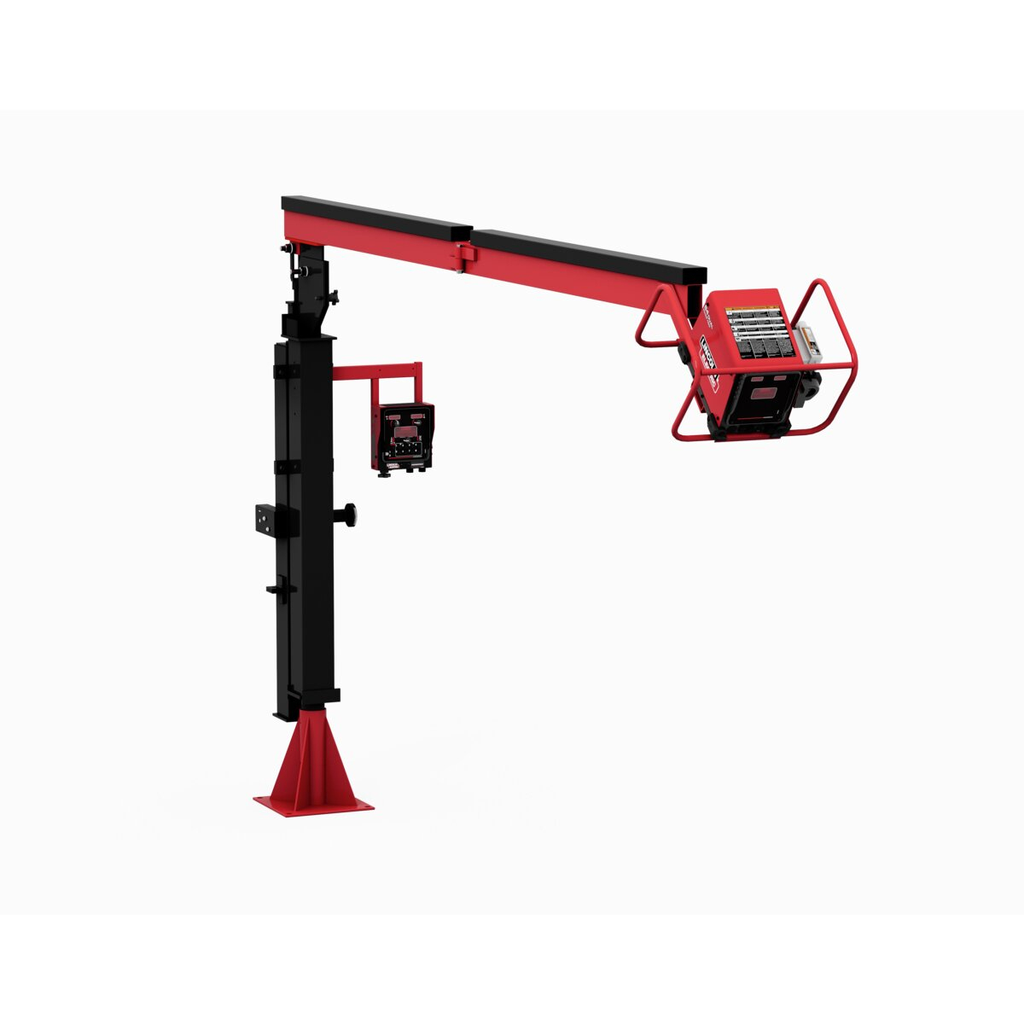

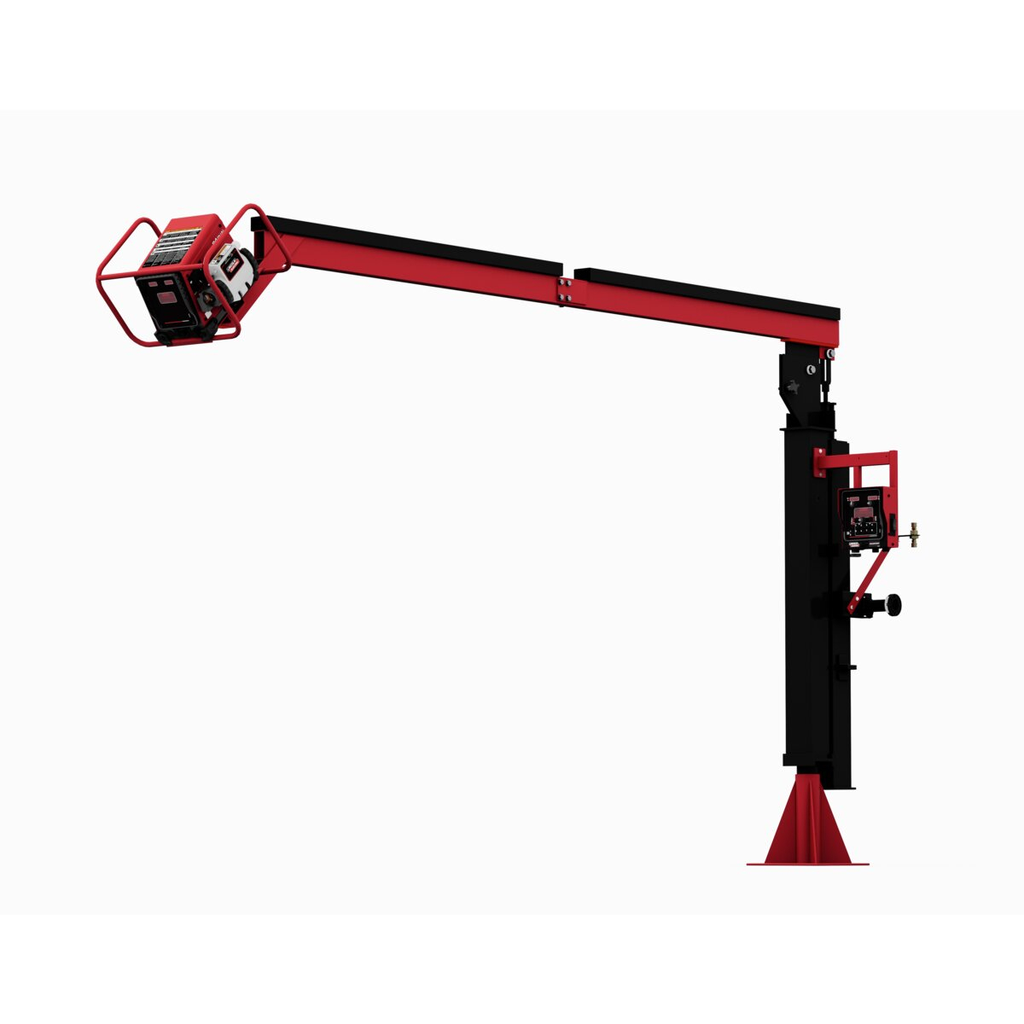

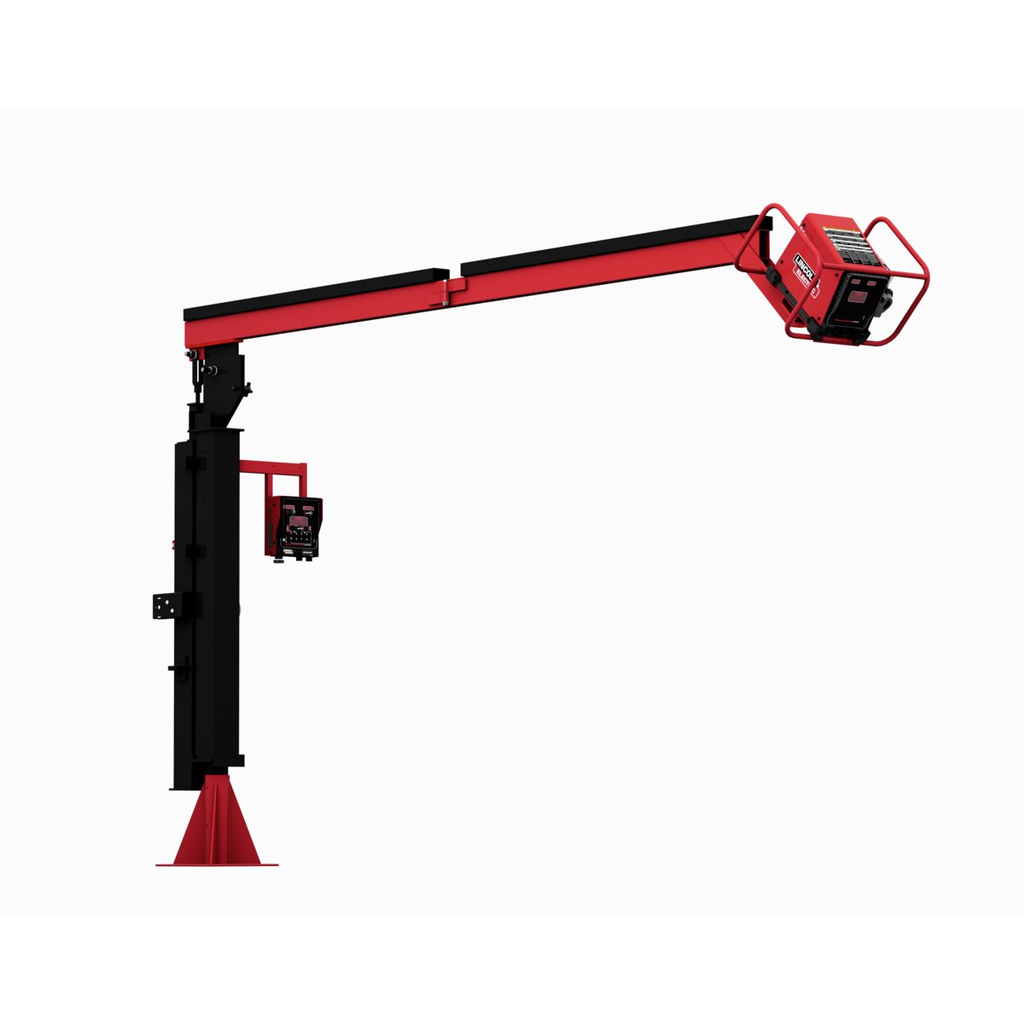

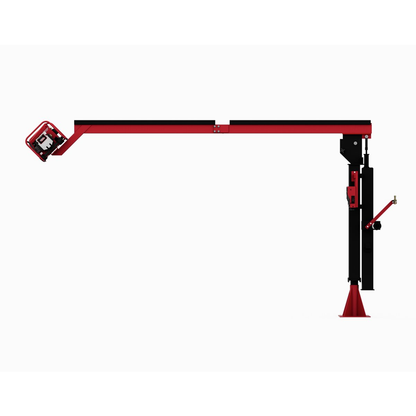

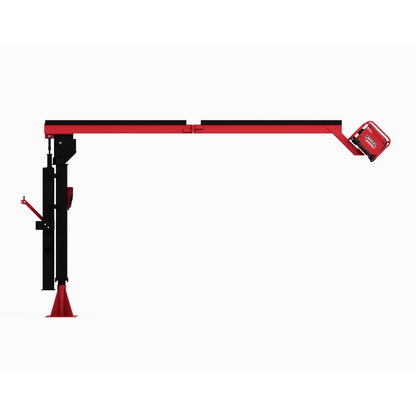

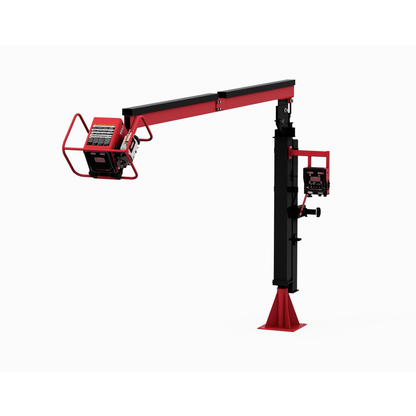

Lincoln Electric, K4047-1-12S, Boom Wire Feeder, 12 ft Swing Arm; 4 Rolls; Compatible with Spools, Coils, or Bulk Wire

Improve operator comfort, productivity, and safety with the Power Feed® 84 Single Boom Ready-Pak System. These boom systems will help increase operator mobility around their work area while streamlining cable routes for improved work space safety.

Features

• Spring balanced arm holds the feeder in place for easy up/down arm adjustments
• Portable user interface control box can be easily mounted away from the arm and reduces trips back to the power source for process adjustments
• Optional pallet base allows arm to be easily moved for additional mobility
• Compatible with spools, coils, or bulk wire delivery systems
• Streamlined cable routing helps maintain an organized work area
• 12' swing arm with 360° radius extends work area mobility
• Paired with the Power Feed 84 Advanced Process Wire Feeder - delivering intelligent process control and field-proven reliability

What's Included?

• Complete Zipline Boom Column-Arm-Pedestal,Power Feed® 84 Single Boom Feeder (K3328-1) (Drive Rolls sold separately),Control Box (K3336-2),Gas Hose – 28 ft. (K4062-1),Extended-Flex Arclink Cable - 25 ft. (K4483-25),Weld Power Cable – 3/0 2 Lug 35 ft. (K1842-35),Polymer Weld Wire Conduit – 15.5 ft. (K4063-2),Control Cable – 8 ft. (K1543-8),Bulk Head Connector Kit (K5104-12),Wire Spindle Assembly

• Weight: 500 lb (227 kg)
• Height: 88.25 in (2242 mm)
• Width: 166 in (4216 mm)
• Dimensions: 8 x 12 ft (2.4 x 3.65 m)
• Feedhead Configuration: Single
• Feeder Type: Boom
• Number of Driven Rolls: 4 rolls
• Equipment Technologies: Arclink
• Output Icon: 4-roll
• Country of Origin: United States
