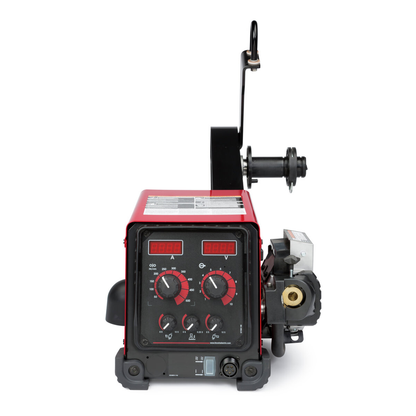

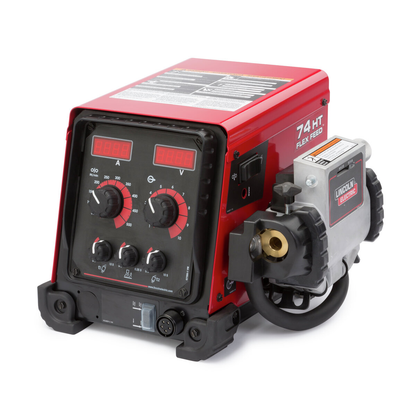

Lincoln Electric, K3883-2, Wire Feeder, Bench, 600A, 4-roll, 3/32 in Max Wire Diameter, 50-700 IPM Feed Speed

Semiautomatic Wire Feeder - The Flex Feed™ 74 HT (High Torque) is a heavy duty industrial semiautomatic wire feeder for general and structural fabrication. The Flex Feed wire feeder is designed to be customized for each application.

Features

• Robust connection points allow for reliable operation in tough conditions
• Strong drive motor for large diameter wire applications
• Simple design including simply digital user interface that streamlines operator setup.
• Advanced MaxTrac® 4-roll wire drive design
• Modularity allows for customizable configurations
• Digital meters show actual current and voltage during welding
• Improved isolation and environmental protection

What's Included?

• (1) Flex Feed® 74 HT Wire Feeder, (1) K3929-1 Inlet Bushing - Quick Connect Style

• Max Rated Output: 600 A
• Max Rating: 600 A
• Input Voltage: 24-42 VAC
• Wire Feed Speed Range: 50-700 IPM
• Max Wire Diameter (Solid): 3/32 in (2.4 mm)
• Max Wire Diameter (Cored): 0.120 in (3 mm)
• Wire Feeders Processes: MIG; Flux Cored
• Wire Configuration: Single
• Feedhead Configuration: Single
• Number of Driven Rolls: 4 rolls
• Drive Design: MaxTrac 4-roll
• Feeder Type: Bench
• Length: 23.6 in (599 mm)
• Width: 15.5 in (394 mm)
• Height: 13.3 in (338 mm)
• Weight: 36 lb (16.33 kg)
• Max Spool Size: 60 lb (30 kg)
• Max Spool Diameter: Drum
• Power Source to Feeder Communication Connector Type: 14-pin
• Communication Technology: Analog
• UI Type: Meters
• Work Clamp Included: No
• Gun Bushing: Tweco #2-#4
• Torque: High Torque
• Type: Semiautomatic Wire Feeder
• Country of Origin: United States
