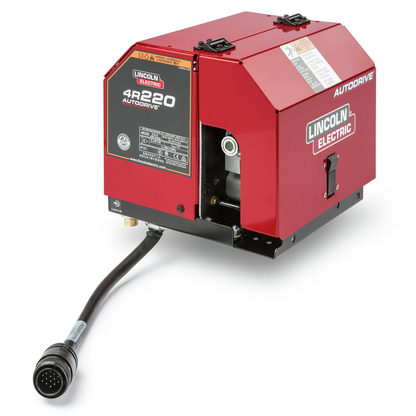

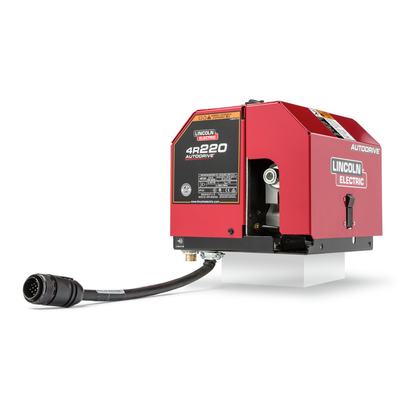

Lincoln Electric, K3561-1, Wire Drive System, 4-roll; 40 VDC, 256 in Width, 10.43 in Height

INDUSTRY-PROVEN PERFORMANCEThe AutoDrive® 4R220 Robotic Wire Feeding Systems offer powerful, industry-proven wire feeding performance for robotic and hard automation applications. Engineered with the patented MAXTRAC® Wire Drive System, the AutoDrive® 4R220 delivers the wire feeding results you need for maximizing automated welding productivity and quality.

Features

• Easy Build Your System Approach - Simply select your wire feeder model and then the appropriate mounting bracket.
• Best in Class Torque - For high-speed applications or long conduit runs.

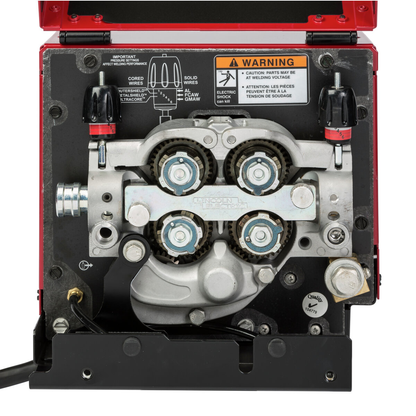

• Patented MAXTRAC 4-roll Wire Drive System - Delivers powerful and dependable wire feeding.
• Hassle-free, toolless maintenance
• Quick release mounting robot-specific mounting brackets for quick and easy servicing.

What's Included?

• (1) AutoDrive 4R220 Wire Drive

• Input Voltage: 40 V DC, 8 A
• Output Capacity: 500 Amps @ 100% Duty Cycle
• Wire Feed Speed Range: 30-1200 in/min (0.8-30.5 m/min)
• Wire Size Range: 0.023-1/16 in (0.6-1.6 mm) solid, 0.035-5/64 in (0.9-2.0 mm) cored
• Motor Power: 220 W
• Wire Drive System: MAXTRAC 4-roll
• Height: 10.43 in (265 mm)
• Width: 10.07 in (256 mm)
• Depth: 9.92 in (252 mm)
• Net Weight: 12.25 lb (5.56 kg)
• Country of Origin: United States
• Warranty Length: 5 Years
