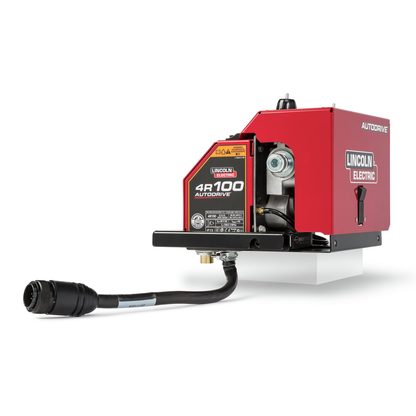

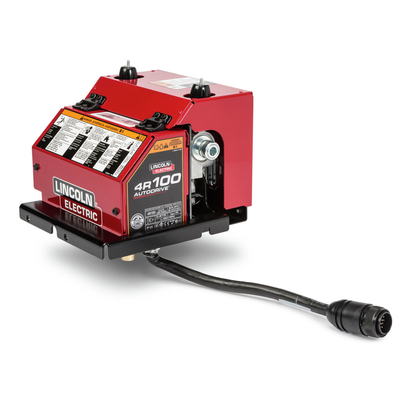

Lincoln Electric, K3560-1, Robotic Wire Feeder, 500 Amps; 40 VDC, 9.1 in, 4-roll

INDUSTRY-PROVEN PERFORMANCE. The AutoDrive® 4R100 Robotic Wire Feeding Systems offer powerful, industry-proven wire feeding performance for robotic and hard automation applications. Engineered with the patented MAXTRAC® Wire Drive System, the AutoDrive® 4R100 delivers the wire feeding results you need for maximizing automated welding productivity and quality.

What's Included?

• (1) AutoDrive 4R100 Wire Drive

Features

• Quick release mounting robot-specific mounting brackets for quick and easy servicing.

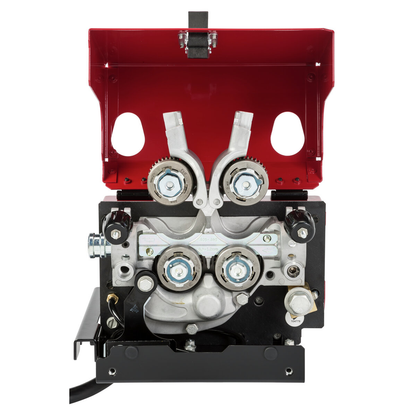

• Patented MAXTRAC 4-roll Wire Drive System - Delivers powerful and dependable wire feeding.
• Best in Class Torque - For high-speed applications or long conduit runs.
• Easy Build Your System Approach - Simply select your wire feeder model and then the appropriate mounting bracket.
• Hassle-free, toolless maintenance

• Output Capacity: 500 Amps @ 100% Duty Cycle
• Wire Feed Speed Range: 50-800 in/min (1.3-20.3 m/min)
• Wire Size Range Solid: 0.023-0.052 in (0.58-1.3 mm)
• Wire Size Range Cored: 0.035-0.045 in (0.9-1.2 mm)
• Input Voltage: 40 VDC
• Input Current: 4 A
• Dimensions (H x W x D): 8.4 x 7.5 x 9.1 in (213 x 191 x 231 mm)
• Weight: 13.2 lb (6.0 kg)
• Wire Drive System: Patented MAXTRAC 4-roll
• Mounting: Quick release robot-specific brackets
• Warranty Length: 5 Years
• Country of Origin: United States
