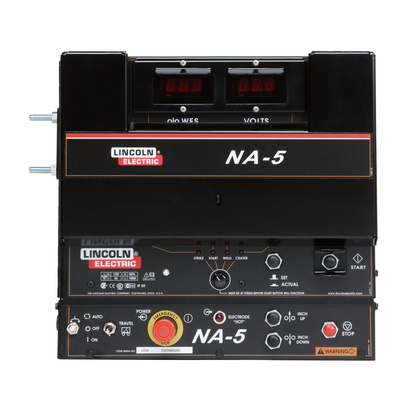

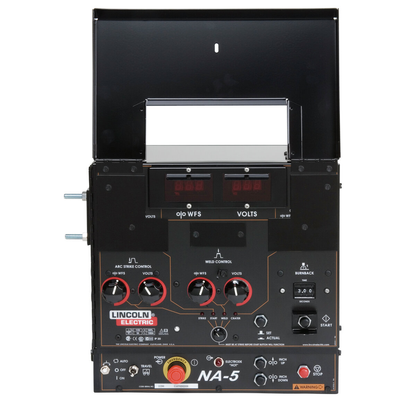

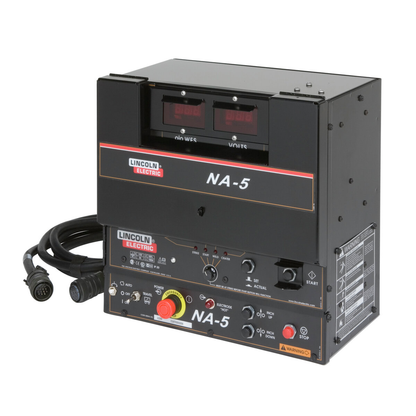

Lincoln Electric, K356-2, Automatic Wire Feeder, 115 VAC; 18.6 kg, Maximum Wire Thickness 7/32 in, Submerged Arc (SAW)

AUTOMATIC WELDING SYSTEMS - Improve productivity with the NA-5 automatic wire feeders. These systems have been specially designed to deposit more weld metal at fast travel speeds which eliminates bottlenecks and cuts costs.

Features

• Operating Versatility - Easily adapt to a wide range of wire feed speeds and wire sizes.
• Compact Units With Excellent Flexibility - Fit into simple fixtures or the most complex automated production lines.
• Rugged Construction - Minimize downtime and maintenance costs.

What's Included?

• (1) NA-4 Control, (1) 10 ft. (3.1 m) Control Cable

• Input Voltage: 115 VAC
• Input Frequency: 50/60 Hz
• Maximum Wire Thickness: 7/32 in
• Minimum Wire Thickness: .045 in
• Wire Feed Speed Range: 25-775 ipm (0.6-16.5 m/min)
• Weight: 18.6 kg (41 lb)
• Dimensions (H x W x D): 12.75 x 18.5 x 22.25 in (324 x 470 x 565 mm)
• Feedhead Configuration: Control Box Only
• Machines Processes: Submerged Arc (SAW)
• UI Type: Meters
• Power Source to Feeder Communication Connector Type: 9-pin
• Warranty Length: 3 Years
• Country of Origin: United States
• Communication Technology: analog
• Feeder Type: Automatic
• Work Clamp Included: No
