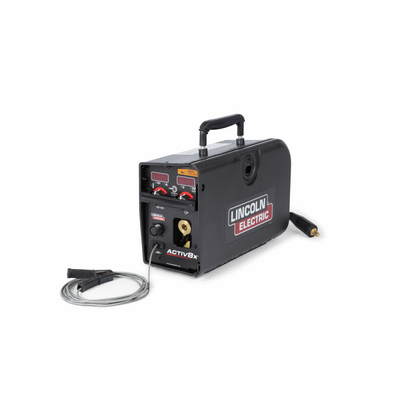

Lincoln Electric, K3519-2, Portable Wire Feeder, 330 A, 15-110 VDC, 50-700 IPM, CrossLinc Technology

PORTABLE, SEMIAUTOMATIC WIRE FEEDER. Activate your shipbuilding, offshore, or construction operations with the Activ8X portable wire feeder with CrossLinc Technology. Small enough to fit through manways and light enough to carry around the site, the Activ8X wire feeder also allows remote control of the power source without the need for control cables via CrossLinc Technology. This includes True Voltage Technology™ (TVT™) which ensures you get the voltage you set at the arc, even when you are hundreds of feet away from the power source.

Features

• Compact - Lightest construction feeder on the market today.
• Potted PC Boards for moisture and corrosion protection.
• True Voltage Technology (TVT) - Automatically compensates for voltage drops across long welding cables.

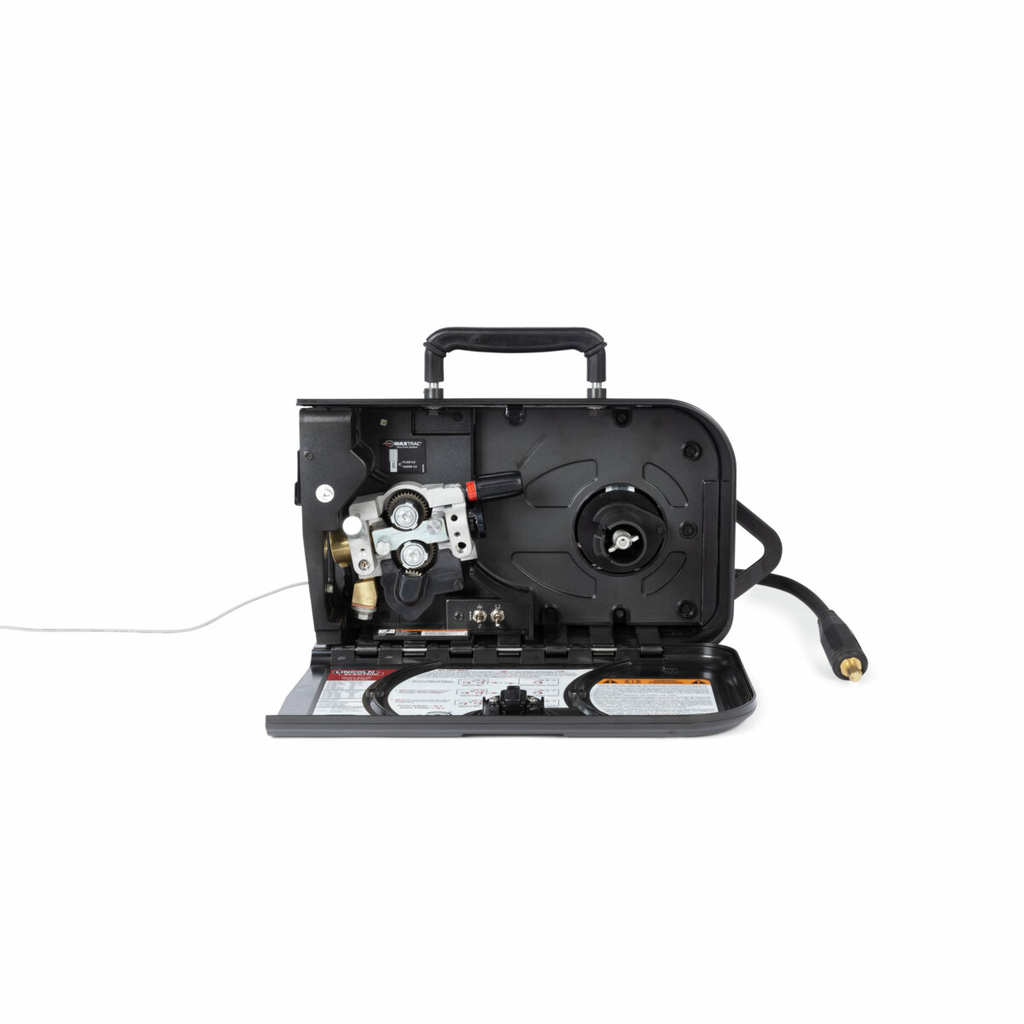

• Maxtrac® Wire Drive System – Heavy-duty cast aluminum wire drive system provides reliable feeding and durability.
• Tachometer feedback delivers accurate wire feed speed.
• Accepts up to 8 in. (203 mm) diameter wire spools.
• CrossLinc Technology – Enables voltage or current control at the arc without a control cable to help improve safety, quality, and productivity with less trips to the power source and reduced jobsite clutter.
• Impact resistant, flame retardant case provides rugged durability for tough conditions.

What's Included?

• (1) Activ8X CE Wire Feeder

• Max Rating: 330 A
• Wire Feed Speed Range: 50-700 IPM
• Input Voltage: 15-110 VDC
• Max Wire Diameter (Solid): 0.052 in (1.3 mm)
• Max Wire Diameter (Cored): 5/64 in (2 mm)
• Max Spool Diameter: 8 in (203 mm)
• Max Spool Size: 15 lb
• Length: 18.7 in (475 mm)
• Width: 7.4 in (188 mm)
• Height: 11.8 in (298 mm)
• Weight: 27.5 lb (12.474 kg)
• Feeder Type: Portable Semiautomatic Wire Feeder
• Wire Feeders Processes: MIG, Flux Cored
• Communication Technology: CrossLinc, True Voltage Technology (TVT)
• Gun Bushing: Tweco #2-#4
• Wire Configuration: Single
• Feedhead Configuration: Single
• Number of Driven Rolls: 2 rolls
• Ingress Protection Rating: IP23
• Material: Cast Aluminum, Flame Retardant, Impact Resistant
• Country of Origin: United States
