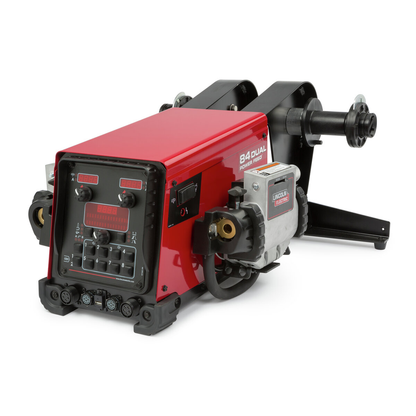

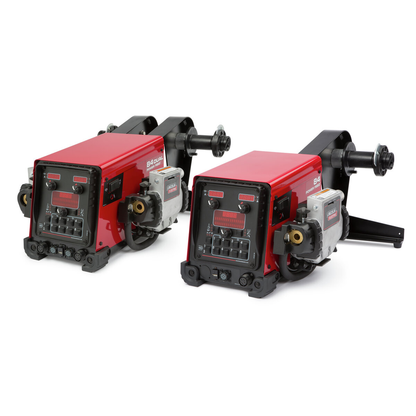

Lincoln Electric, K3330-7, Dual Bench Wire Feeder, 40 VDC, 500-599 Max Output, Modularity, USB

Single Digital Control Semiautomatic Wire FeedersThe Power Feed® 84 semiautomatic industrial wire feeder is built on a modular platform to be used in a variety of applications. Simple & Customizable Controls Auto Settings simplify process setup Eight User Memories- Per Feed Head for complete WPS recall Rugged Improved Isolation & Environmental Protection Robust connection points allow for reliable operation in tough conditions Modular Modularity allows for customizable configurations Advanced Interface – includes digital meters for actual and preset weld display and full weld sequence control including run-in, start, weld, burnback and crater parameters. USB Port – included on select models for unlimited memory expansion or for future upgrades. Feed plate – can be located on either right or left side of the wire drive housing for easy integration into any work center. Electrode input stud – mounted on the wire drive frame – protects the feed plate from misuse caused by pulling on the gun cable. New Gun Adapters – deliver improved electrical reliability, less voltage loss and simplified connection. Optional Digital Gas Flow Kit – displays actual gas flow rate while welding. Push-pull capable – drive systems.

What's Included?

• User interface Standard #2 - #4 gun adapter 20 tooth pinion gear Standard duty reel stand 8 ft. (2.4 m) control cable (K1543-8) USB

Features

• Eight User Memories – Per feed head for complete welding procedure recall
• Robust connection points allow for reliable operation in tough conditions
• Modularity ensures the feeder can be configured to fit a variety of application needs
• New Auto-Settings simplify process setup
• Improved isolation & environmental protection

• Input Power: 40 VDC
• Rated Output Current/Duty Cycle: 600A/60% (wire drive only), 500A/60% (wire drive with gouging kit), 600A/30% (gouging stud)
• Wire Feed Speed Range: 50-750 ipm (1.3-19.0 m/min), 50-1200 ipm (1.3-30.4 m/min)
• Wire Size Range: Solid: 0.025-1/16 in (0.6-1.6 mm), Cored: 0.035-5/64 in (0.9-2.0 mm)
• Dimensions (H x W x D): 25.2 x 22.5 x 30.6 in (640 x 572 x 777 mm)
• Net Weight: 64 lbs (29.0 kg)
• Equipment Technologies: Arclink, USB
• Country of Origin: United States
