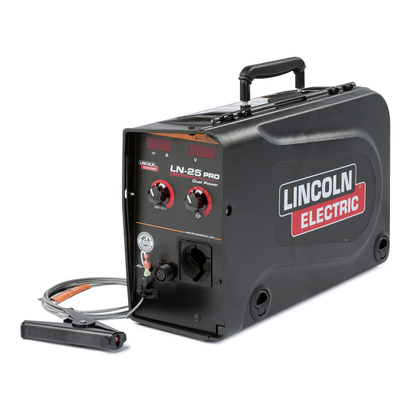

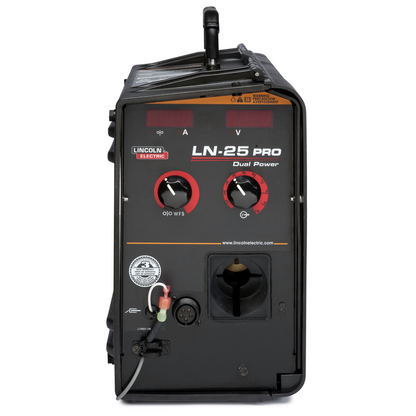

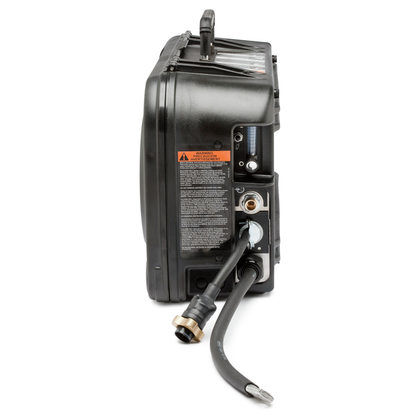

Lincoln Electric, K2614-6, Portable Wire Feeder, Dual Range Wire Feed Speed, 450 A, 15-110 VDC, 1/16 in (1.6 mm) Max Wire Diameter

LN-25 PRO series wire feeders are designed to be simple, reliable and easy to service. Whether you are an ironworker, pipeline welder, or weld at a construction site, shipbuilding facility or metal fabrication shop, we have the right semiautomatic wire feeder for you.· Maxtrac® Wire Drive System - Heavy-duty cast aluminum wire drive system provides reliable feeding and durability. · Dual Range Wire Feed Speed - Delivers greater precision at low end wire feed speeds. · Trigger Interlock Switch - Provides operator comfort for long welds. · Replaceable and Flame Resistant Case - Rugged and durable case can be replaced in less than five minutes.· Potted PC Boards - For moisture and corrosion protection.

Features

• Dual Range Wire Feed Speed
• Powered by welding output power or control cable
• Maxtrac® Wire Drive System
• Replaceable and Flame Resistant Case
• Trigger Interlock Switch

What's Included?

• Internal Contactor Gas Solenoid Flowmeter Arc Sensing Lead & Clip, 15 ft. (4.5 m) 2 Gun Bushings (K1500-2 installed
• K1500-1 loose)

• Input Voltage: 15-110 VDC, 24-42 VAC
• Maximum Amperage: 450 A / 60% Duty Cycle
• Wire Feed Speed Range: 50-700 ipm (1.3-17.7 m/min)
• Wire Size Range Solid: .030-.5/64 in. (0.8-2.0 mm)
• Wire Size Range Cored: 5/64 in (2 mm)
• Wire Size Range Aluminum: .035-1/16 in. (0.9-1.6 mm)
• Dimensions (H x W x D): 15 x 8.7 x 23.2 in. (381 x 221 x 589 mm)
• Weight: 37 lb (16 kg)
• Material: Cast Aluminum (wire drive system)
• Ingress Protection Rating: IP23
• Country of Origin: United States
