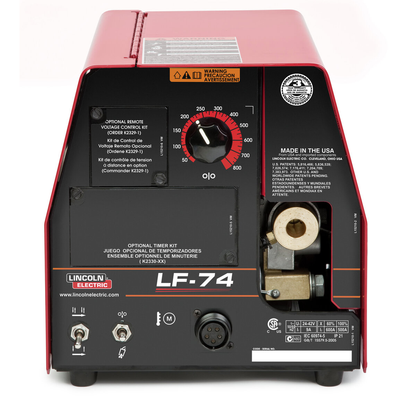

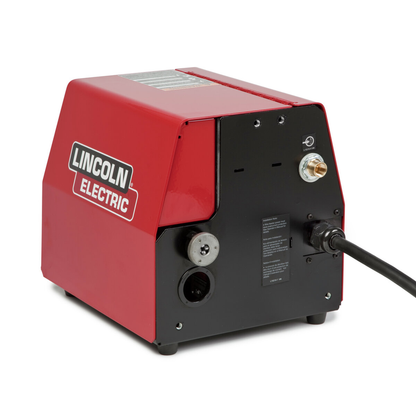

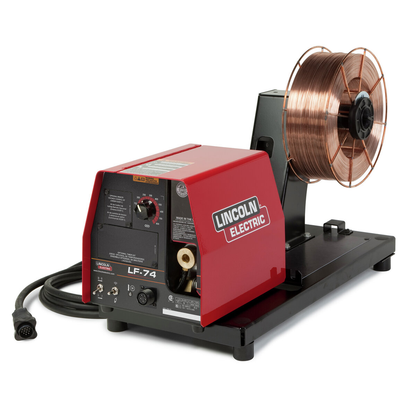

Lincoln Electric, K2426-5, Wire Feeder, 4-Roll; Geardriven, 13 in Width, Heavy Duty, Bench Model

4-Roll Heavy Duty Industrial FeedersDesigned for MIG and cored wire welding in job shop and manufacturing environments, these rugged wire feeders are built to deliver reliable performance day after day.

Features

• Geardriven wire drive rolls slide on and off easily!
• Brass-to-brass gun connections for better electrical conductivity that results in better arc performance.
• Totally tool-less drive rolls and wire guide installation.
• LF-74 Wire Feeder
• Calibrated wire feed speed dial for precise and accurate settings.
• Patented 4-drive roll MAXTRAC® heavy-duty cast aluminum wire drive system provides reliable feeding and durability.

• Output Current / Duty Cycle: 600 Amps @ 60%
• Input Power: 24-42 VAC, 50/60 Hz, 9 Amps
• Wire Feed Speed Range: 50-800 ipm (1.3-20.3 m/min)
• Wire Size Range, Solid: .023-1/16 in (0.6-1.6 mm)
• Wire Size Range, Cored: .030-5/64 in (0.8-2.0 mm)
• Wire Feed System: MAXTRAC
• Width: 13 in
• Height: 15.3 in
• Length: 27.7 in
• Weight: 63 lbs
• Material: Cast Aluminum
• Number of Rolls: 4
• Country of Origin: United States
