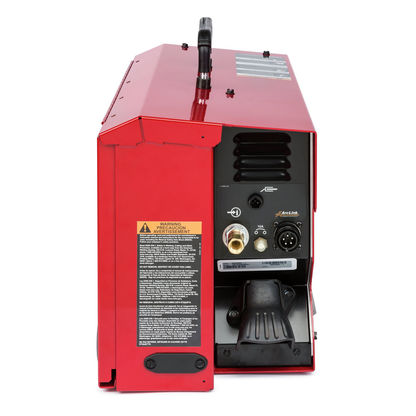

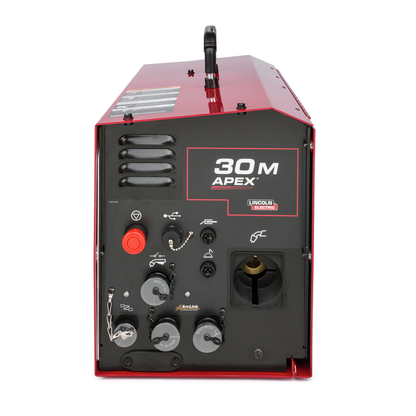

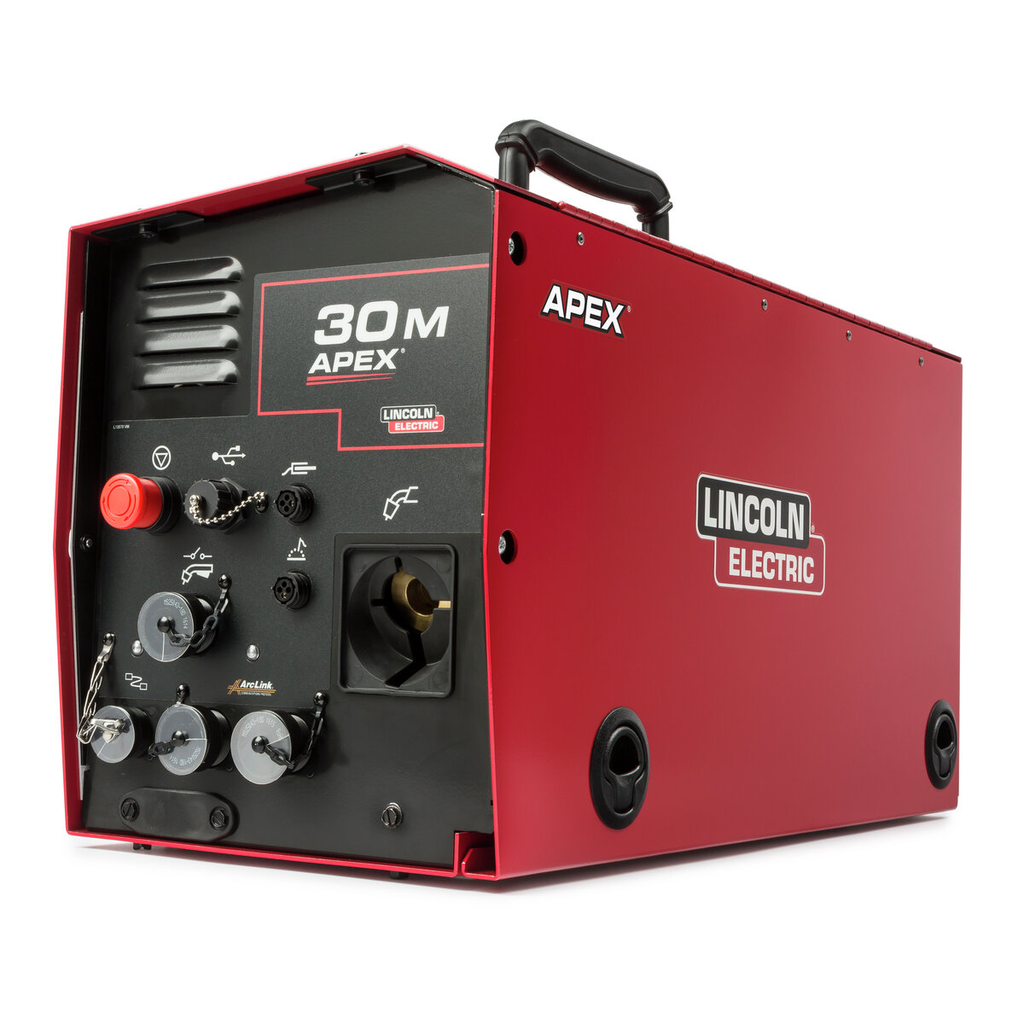

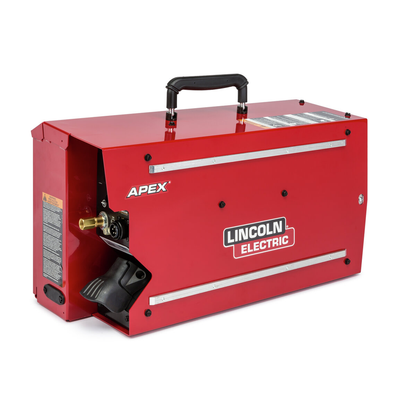

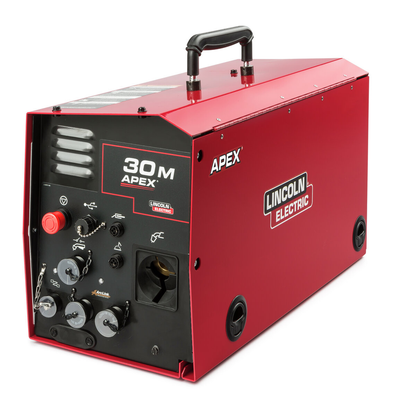

Lincoln Electric, K52160-1, Mechanized Controller, 10.9 in; 40VDC; 4-roll wire drive; ArcLink enabled

The APEX 30M controller offers the power of synchronizing amps, volts, travel speed and oscillation combined with powerful wire-feeding performance. Part of the APEX 3 Series platform of mechanized controllers, it is designed with the patented MAXTRAC® Wire Drive System, delivering the wire-feeding results you need for maximizing welding productivity and quality. The APEX 30M controller is engineered primarily for GMAW / FCAW processes, but it can also be configured for GTAW processes. Incorporating an enclosed housing, wire feeder and a spool holder allows for quick and easy setup in the shop or in the field. Weighing less than 50 lbs. (23 kg) with a convenient handle on top, it's as mobile as it is functional. Built as part of a digital platform geared towards reducing product obsolescence, the APEX 30M controller is designed for a longer service life as future enhancements to welding technologies become available.

What's Included?

• (1) APEX 30M Mechanized Controller

Features

• Integrated digital motion control system and wire feeder as a single unit that eliminates additional equipment, simplifies cable management, and reduced set up.
• Lightweight, portable controller up to 100 ft. (30.5 m) from power source.
• Designed to connect directly to select HELIX M85 Weld Head, Power Wave® S Series welders or Vantage® 600 SD/ Air Vantage® ArcLink® enabled engine driven welders to create a completely versatile solution.

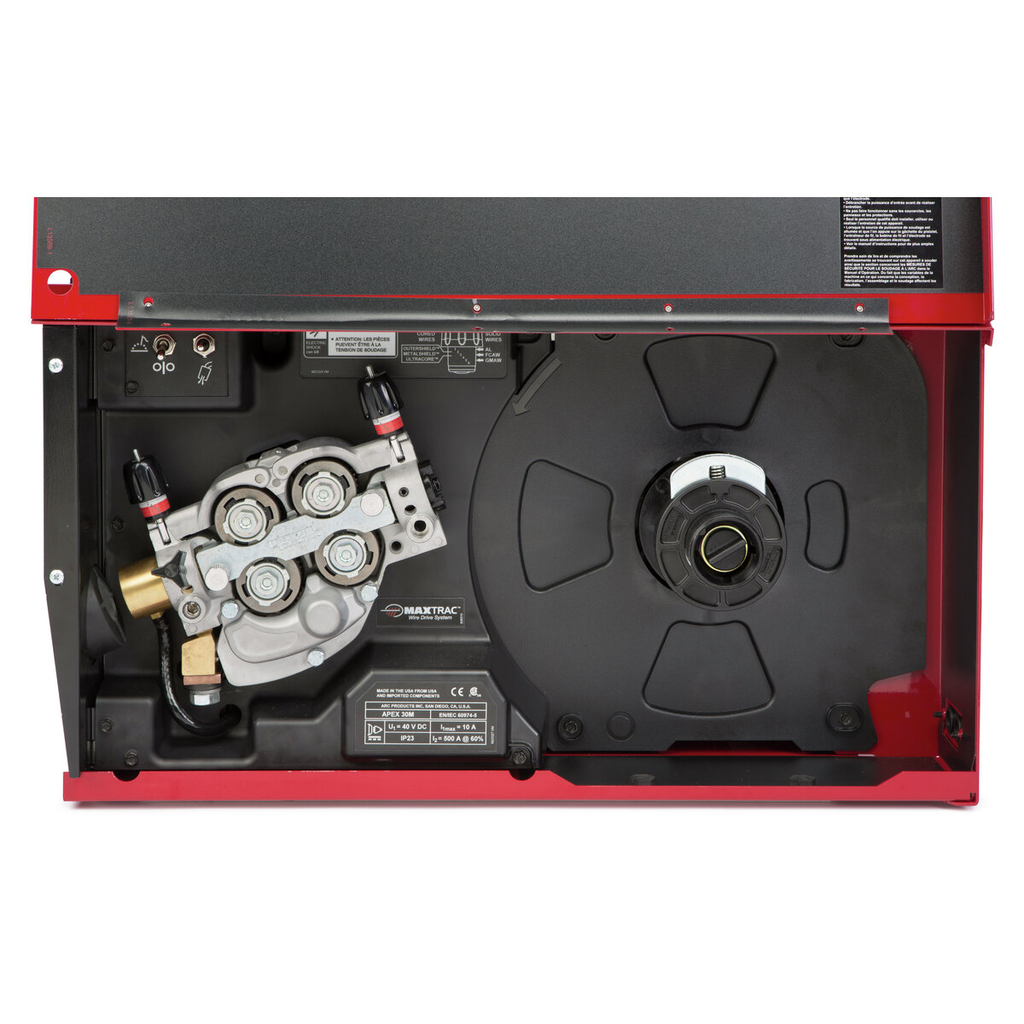

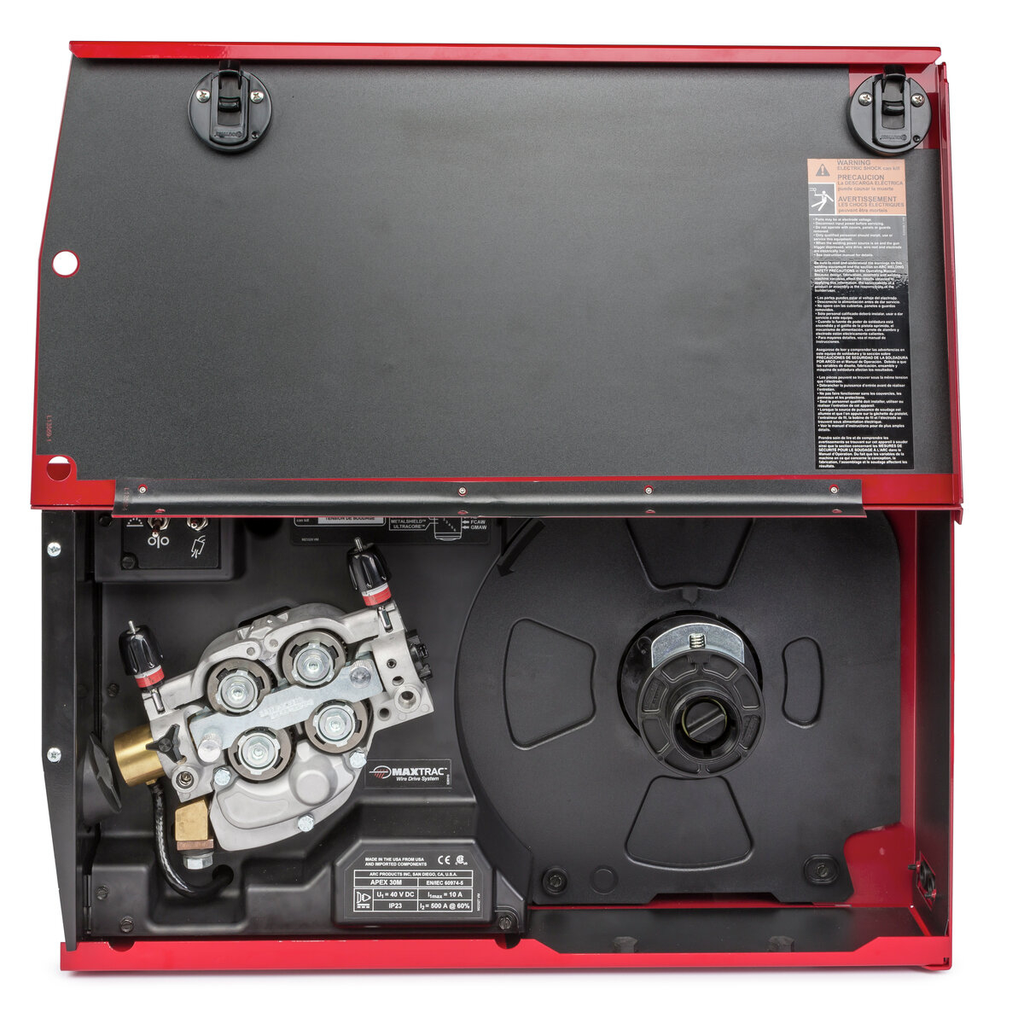

• Patented MAXTRAC® 4-roll wire drive system delivers powerful and dependable wire feeding.

• Input Power: 40 VDC
• Output Voltage: 24 VDC
• Rated Output Current / Duty Cycle: 500A / 60%, 450A / 100%
• Input Current: 10A Max
• Wire Feed Speed Range: 30-1200 ipm (76-3048 cm/min)
• Max Wire Diameter (Solid): 1/16 in (1.6 mm)
• Max Wire Diameter (Cored): 1/8 in (3.2 mm)
• Weight: 48.5 lb (22 kg)
• Dimensions: 25 x 15.3 x 10.9 in (635 x 388 x 277 mm)
• Wire Spool Size: 10-33 lb (4.5-15 kg)
• Material: Aluminum (cast frame)
• Wire Drive System: Patented MAXTRAC 4-roll
• Processes: GMAW, FCAW, GTAW (configurable)
• Power Source to Feeder Communication Connector Type: 5-pin (Amphenol, 5 pins)
• Communication Technology: ArcLink, USB
• Feeder Type: Automatic
• Configuration: Single
• Polarity: DC
• Mode Icon: CV
• Warranty Length: 1 Year
• Country of Origin: United States
• NAFTA Certified: Yes
