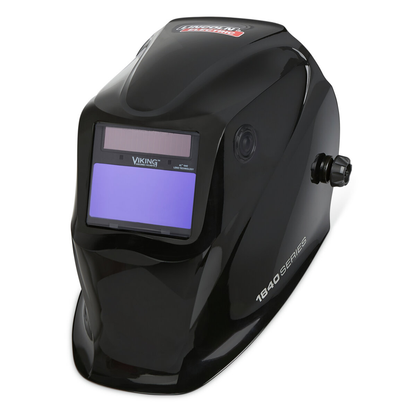

Lincoln Electric, K3023-4, Welding Helmet, Auto-Darkening, 7-13 Shade Range, 7 sq. in. Viewing Area, 4-Point Pivot Headgear

The Lincoln Electric VIKING™ 1840 Series is our mid-range auto-darkening helmet tier that offers superior 4C® optics with a versatile user interface and premium external controls to increase productivity. This helmet includes our exclusive 4C lens technology and 1/1/1/1 optical clarity for industry leading optics and provides an expanded variable 7-13 shade range and low profile external grind control. The digital user interface has moisture and abrasion resistant push button LED UI controls that allow for intuitive adjustments for precise performance. The upgraded 4-point pivot headgear features a soft, padded headband to help eliminate pressure points, while two top head straps evenly distribute weight for all-day comfort.

What's Included?

• (1) Helmet, (1) Helmet Bag, (1) Bandana, (5) KP3043-1 Outside Cover Lenses, (2) KP2897-1 Inside Cover Lenses, (1) Decal Sheet

Features

• 1/1/1/1 Optical Clarity that eliminates distortion, removes blurriness, and provides uniform shade & consistent shade at all angles.
• 4-point pivot headgear combines two adjustable top head support, soft front headband, polymer backpad, orientation adjustment pin and simple ratchet tightening mechanism for a personalized, secure fit.
• External low profile grind control that makes switching between weld and grind modes easy, which increases productivity, prevents accidental activation and provides enhanced application versatility.
• 7.0 sq. inch (3.78 x 1.85 in.) wide viewing area
• Variable 7-13 shade range and low profile, external grind control provides an expanded versatility.
• Welding helmet is hard hat and cheater lens compatible and provides enhanced outdoor performance.
• Digital User Interface with moisture and abrasion resistant push button LED UI controls that promote simple, intuitive adjustments for precise and consistent performance.
• Replaceable CR2450 batteries ensure increased battery life
• 4C Lens Technology is Lincoln Electric's proprietary liquid crystal display (LCD) that enhances the visible color spectrum of the display, which broadens the color range & hues in both light and dark states. This eliminates imperfections and color saturation to create the clearest view of the base material, arc & puddle, while reducing eye strain.

• Lens Shade Rating: 7-13
• Light to Dark Switch Time: 1/25,000 sec
• Number of Sensors: 4
• TIG Amp Rating: DC > 2 Amp, AC > 5 Amp
• Headgear Type: Pivot, 4-point with adjustable top supports, soft padded headband, polymer backpad, orientation adjustment pin, ratchet tightening
• Lens Viewing Area: 7 sq. in. (3.78 x 1.85 in)
• External Controls: Grind Button
• Grind Mode: Yes, external low profile control
• Battery Type: Replaceable CR2450
• Compatibility: Hard hat and magnifying cheater lenses compatible
• Material Color/Finish: Glossy Black
• Shell Type: Black
• Compliance: ANSI Z87.1
• Country of Origin: China
