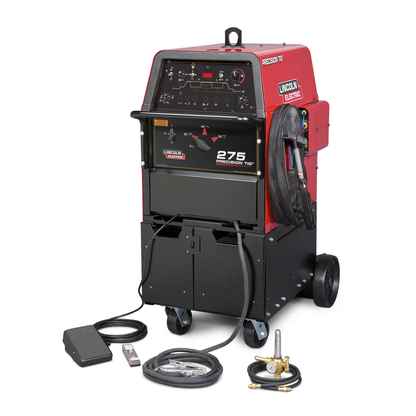

Lincoln Electric, K2618-1, TIG Welder, 275A; 208/230/460V; Water-Cooled; AC/DC

The Precision TIG® 275 is a versatile shop machine ideal for any type of TIG or Stick welding maintenance application, including the use of 5/32-in. (4.0 mm) stick electrode. The Precision TIG 275 features the patented Micro-Start™ II Technology, which enhances starting and arc stability, and provides for more precise welds and crater fills.

What's Included?

• (1) K2619-1 Precision TIG 275 Welder, (1) K1828-1 Under-Cooler Cart Water Cooler, (1) K870 Foot Amptrol™ with 25 ft (7.6 m) Cable Assembly, (1) 3100211 Harris Gas Regulator/Flowmeter and 10 ft Hose Kit, (1) K1784-4 PTW-20 250A Water Cooled TIG Torch with 25 ft Cable, (1) K918-2 Zippered Torch Cover with 25 ft Cable Assembly, (1) KP510 Parts Kit for PTW-20 Series Torches, (2) S19558-4 Water Hoses, (1) K2150-1 2/0 Work Cable and Clamp 15 ft, (1) S20403-4 Adapter for PTA-9 or -17 Torch (3/8 in)

Features

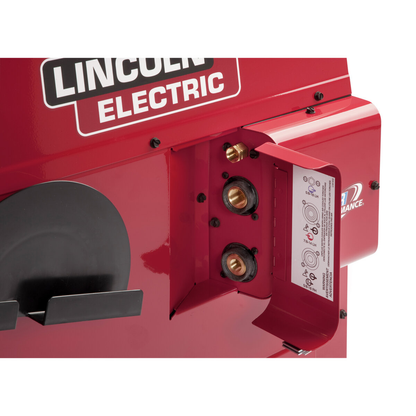

• Water-Cooled Torch Connections with No Adapters Required - Side mounted, out of the way, and well protected.
• Widest Output Range in its Class - 2-340 amps for both AC and DC
• Upgrade with the optional Advanced Pulse Control panel to enable better control over heat input, resulting in less warping and distortion on thin metals
• Ready-Pak ships fully assembled with water cooler, Foot Amptrol™, regulator and hose kit, TIG torch, torch cover, parts kit, water hoses, work cable and clamp, and adapter.
• AC Auto-Balance® - Automatically adjusts for the optimal mix of cleaning and penetration when welding aluminum. Or, take full control - adjust the AC Balance® to increase or decrease cleaning action or penetration on aluminum.

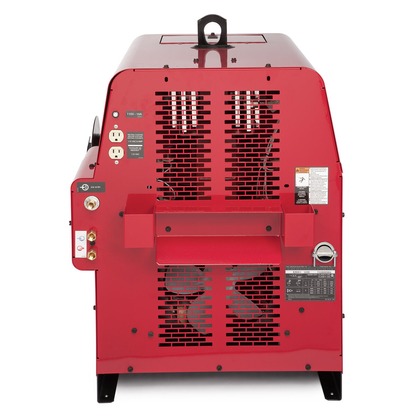

• 115 Volt Auxiliary Power Receptacles - Great for powering an optional water cooler or power tools.
• High Duty Cycles - 275 amps at 40% duty cycle.

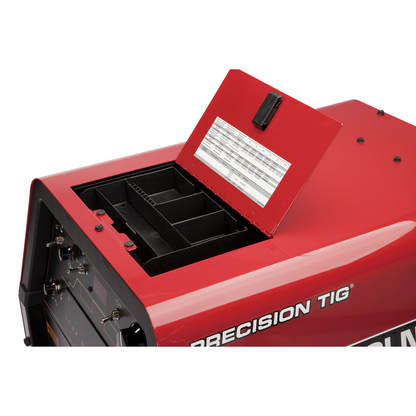

• Built-in Storage Compartment - With removeable tray for torch consumables.
• Excellent Stick Welder - Even with Fleetweld® 5P (E6010) with new Automatic Hot Start™ and Auto Adaptive Arc Force™ controls.
• Patented Micro-Start II Technology - Delivers extremely stable low amperage starting, welding and cratering for both AC and DC welding.

• Amperage: 275A
• Duty Cycle: 40%
• Output Range: 2-340A Max OCV: 75V
• Voltage: 208/230/460V, 1 phase, 60 Hz
• Input Current: 104A @ 208V, 94A @ 230V, 47A @ 460V; 40% Duty Cycle
• Weight: 683 lb (309.8 kg)
• Dimensions (H x W x D): 49.7 x 28 x 41 in (1262 x 711 x 1041 mm)
• Material: Water-cooled torch connections
• Cooling: Water
• Compliance: CSA C/US Certified
• Output Polarity: AC; DC; AC/DC
• Input Phase: 1Ph
• Input Hertz: 60 Hz
• Welding Technology: Conventional
• Warranty Length: 3 Years
• Country of Origin: United States
