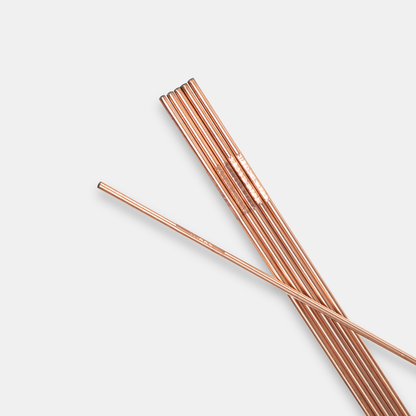

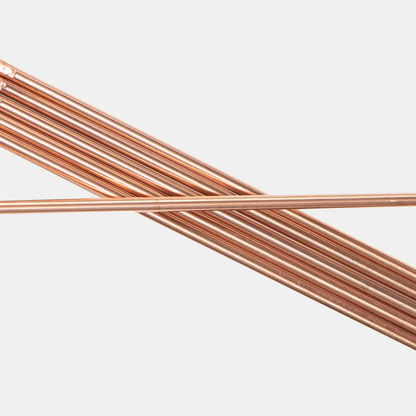

Washington Alloy, TT 120S-1 03, Welding Wire, 0.045 in, 36 in, Alloy ER120S-1, 100,000 psi YS, 125,000 psi TS

ER120S-1 is used for a variety of steels where high strength and ductility are critical. It is designed to give high notch toughness, yield strength and impact resistance. ER120S-1 can be welded at an interpass temperature as low as 300°F while also offering high ductility to -75°F. Typical application may be high yield steels such as T-1, HY-100 and other steels in the 100,000 psi YS class, pressure vessels. Mechanical properties from the weld deposit will vary depending on heat input used. Preheat and interpass of 300°F may be required.

• Diameter: 0.045 in.
• Length: 36 in
• Yield Strength: 100,000 psi YS class
• Yield Strength (Weld Metal): 110,000 psi
• Tensile Strength: 125,000 psi
• Elongation: 15%
• Charpy V-notch Impact: 70 ft-lbs at -60 F
• Interpass Temperature: 300 F
• Ductility Temperature: -75 F
• Weight: 10 LB
• Material: Alloy ER120S-1
• AWS A5.28 Specification: ER120S-1
• ANSI/AWS Specification: A5.28 ER120S-1
• ASME Specification: SFA 5.28 ER120S-1
• Carbon: 0.07%
• Manganese: 1.55%
• Silicon: 0.35%
• Phosphorus: 0.006%
• Sulfur: 0.008%
• Nickel: 2.40%
• Molybdenum: 0.55%
• Chromium: 0.45%
