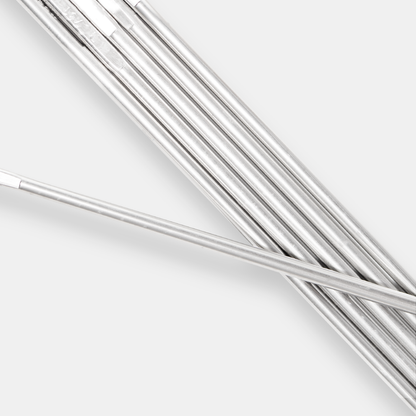

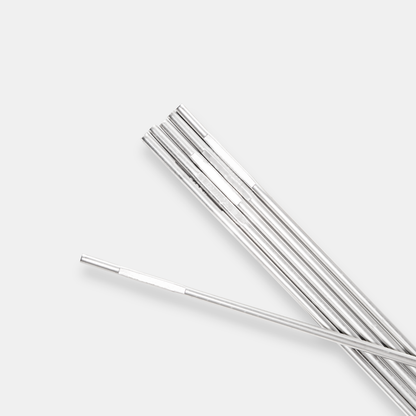

Washington Alloy, TN C22/04, Welding Wire, 1/16 in; 36 in, C22 (ERNiCrMo-10), Nickel-Chromium-Molybdenum

Alloy C22® is a nickel chromium molybdenum alloy wire designed for joining Hastelloy® C22®, 625, 825 or combinations of these alloys, or other Ni-Cr-Mo alloys to themselves or to stainless steels. Washington Alloy C22® is equivalent to Hastelly® C22® and is also used extensively for overlays and cladding of lower alloy steels. Washington Alloy C22® weld deposits offer better overall resistance to weld metal corrosion than most other Ni-Cr-Mo alloys such as C276, C4 and 625. Washington Alloy C22® has outstanding resistance to pitting, crevice corrosion and stress-corrosion cracking. This alloy is used in chemical processing application involving ferric and cupric and inorganic, chlorine formic and acetic acids, acetic anhydride, sea water, and brine solutions.

• Size: 1/16 in.
• Length: 36 in.
• Weight: 10 LB
• Alloy: C22 (ENICRMO-10)
• AWS Specification: AWS A5.14 ERNiCrMo-10
• Material: Nickel, Chromium, Molybdenum
• Tensile Strength: 115,000 psi
• Yield Strength: 77,000 psi
• Elongation: 47%
• Carbon Max: 0.015%
• Manganese Max: 0.50%
• Iron: 2.0-6.0%
• Phosphorus Max: 0.02%
• Sulphur Max: 0.010%
• Silicon Max: 0.08%
• Copper Max: 0.50%
• Molybdenum: 12.5-14.5%
• Cobalt Max: 2.50%
• Nickel + Cobalt: Balance
• Chromium: 20.0-22.5%
• Vanadium Max: 0.35%
• Tungsten: 2.5-3.5%
