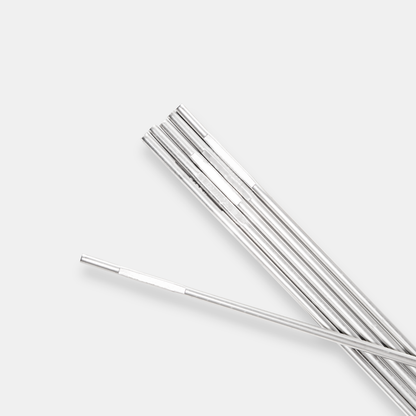

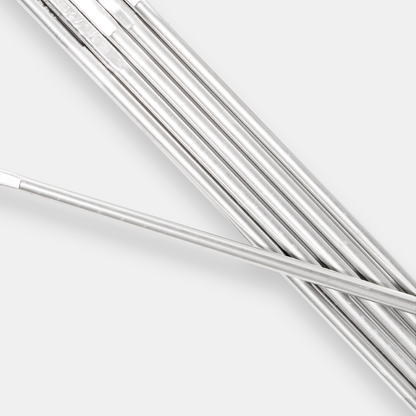

Washington Alloy, TN 82/04, Filler Metal, 1/16 in; 36 in, Nickel-Chromium-Iron, ERNiCr-3

Alloy 82 is a nickel-chromium-iron filler metal used for MIG, TIG, submerged arc and plasma arc welding of nickel base Inconel® 600 and 601 as well as Incoloy® 800 and 800 HT to themselves or to carbon steel, stainless steel, high nickel base 200 and to nickel-copper Monel® 400. ER82 can also be used for joining high nickel base 200 to stainless steel, nickel-copper Monel® 400 to carbon steel and for overlaying on steel.

• Size: 1/16 in.
• Length: 36 in
• Weight: 10 lb
• Filler Metal Type: Nickel-Chromium-Iron
• Alloy / Product Title: 83 (ERNiCr-3)
• Welding Processes: MIG, TIG, Submerged Arc, Plasma Arc
• Compatible Base Metals: Inconel 600, 601; Incoloy 800, 800 HT; Carbon steel; Stainless steel; High nickel base 200; Nickel-copper Monel 400
• AWS Specification: ANSI/AWS A5.14 ERNiCr-3
• ASME Specification: ASME SFA 5.14 ERNiCr-3
• Tensile Strength: 80,000 psi
• Yield Strength: 40,000 psi
• Elongation: 30%
• Chemical Composition - Carbon: 0.10% max
• Chemical Composition - Manganese: 2.50 3.50%
• Chemical Composition - Iron: 3.00% max
• Chemical Composition - Phosphorus: 0.030% max
• Chemical Composition - Sulphur: 0.015% max
• Chemical Composition - Silicon: 0.50% max
• Chemical Composition - Copper: 0.50% max
• Chemical Composition - Nickel + Cobalt: 67.0% min
• Chemical Composition - Niobium + Tantalum: 2.0 3.0%
• Chemical Composition - Cobalt (if specified): 0.12% max
• Chemical Composition - Chromium: 18.0 22.0%
• Chemical Composition - Titanium: 0.75% max
