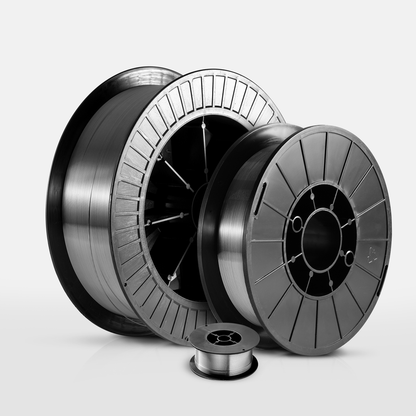

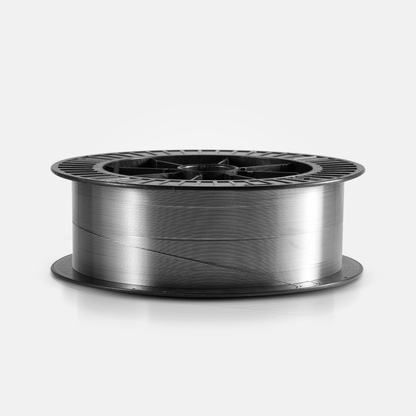

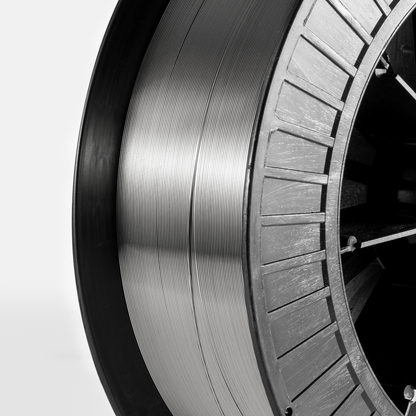

Washington Alloy, TN 82 17, Filler Metal, 0.045 in; Nickel, Chromium, Iron; 80,000 psi Tensile Strength

Name: Washington Alloy, TN 82 17, Filler Metal, 0.045 in; Nickel, Chromium, Iron; 80,000 psi Tensile Strength
Brand: Washington Alloy
SKU: WYTN 82 17
Availability: InStock

Product variants

Looking for a Quote?

Call our Sales Department! 773-384-7622

- or -

Email Us! - Sales@wiscoonline.com

Or Fill Out the Form Below.

Contact Us

Enhance Your Gear With Accessories

Alloy 82 is a nickel-chromium-iron filler metal used for MIG, TIG, submerged arc and plasma arc welding of nickel base Inconel® 600 and 601 as well as Incoloy® 800 and 800 HT to themselves or to carbon steel, stainless steel, high nickel base 200 and to nickel-copper Monel® 400. ER82 can also be used for joining high nickel base 200 to stainless steel, nickel-copper Monel® 400 to carbon steel and for overlaying on steel.

Wire Diameter: 0.045 in.
Weight: 33 lb
Alloy / Product Title: 82 (ERNICR-3)
Material: Nickel, Chromium, Iron
Tensile Strength: 80,000 psi
Yield Strength: 40,000 psi
Elongation: 30%
Typical Composition Carbon: 0.10% max
Typical Composition Manganese: 2.50-3.50%
Typical Composition Iron: 3.00% max
Typical Composition Phosphorus: 0.030% max
Typical Composition Sulfur: 0.015% max
Typical Composition Silicon: 0.50% max
Typical Composition Copper: 0.50% max
Typical Composition Nickel + Cobalt: 67.0% min
Typical Composition Niobium + Tantalum: 2.0-3.0%
Typical Composition Chromium: 18.0-22.0%
Typical Composition Titanium: 0.75% max
Typical Composition Cobalt: 0.12% max
AWS Specification: ANSI/AWS A5.14 ERNiCr-3
ASME Specification: ASME SFA 5.14 ERNiCr-3
Application: MIG, TIG, submerged arc, plasma arc welding
Compatible Base Metals: Inconel 600, 601, Incoloy 800, 800 HT, carbon steel, stainless steel, high nickel base 200, nickel-copper Monel 400
