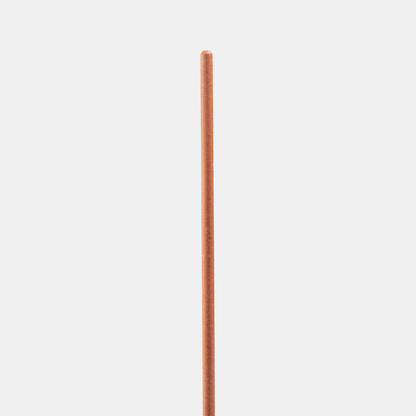

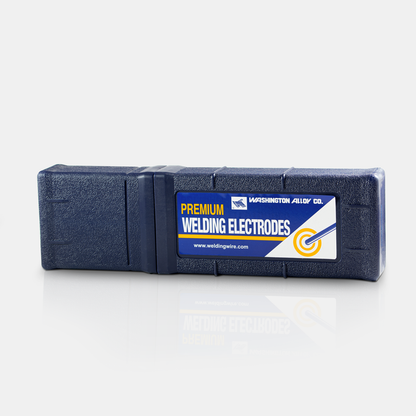

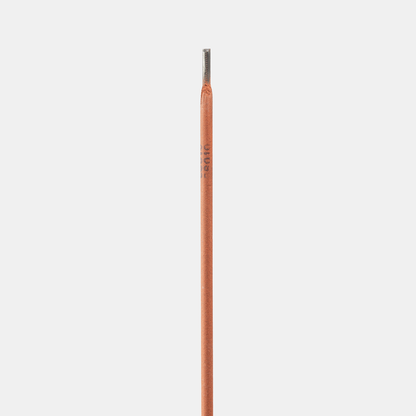

Washington Alloy, TE 6010 04, Welding Electrode, E6010, 3/16 in.

E6010 is a high cellulose coated electrode designed to provide a smooth stable arc forceful enough to achieve deep penetration into the base metal. This electrode exhibits high deposition efficiency and low spatter loss. It produces a weld puddle that wets and spreads well, yet sets up fast enough to make this electrode ideal for vertical up or vertical down welding techniques. E6010 electrodes produce a flat weld bead with coarse ripples and a thin easily removable slag. E6010 electrodes may be used in the flat, horizontal, vertical or overhead welding positions.

• Type: E6010
• Electrode Diameter: 3/16 in.
• Amperage Range: 150-200A (Flat)
• Voltage Range: 25-30V
• Coating: High Cellulose
• Welding Positions: Flat, Horizontal, Vertical, Overhead
• Current Type: DCEP
• Tensile Strength: 70 ksi
• Yield Strength: 61 ksi
• Elongation: 30%
• Charpy Impact: 36 ft lbs at -20 F
• Material Chemistry: C 0.10%, Mn 0.47%, Si 0.20%, P 0.014%, S 0.012%
• Compliance: ANSI/AWS A5.1, ASME SFA 5.1
• Weight: 10 lb
