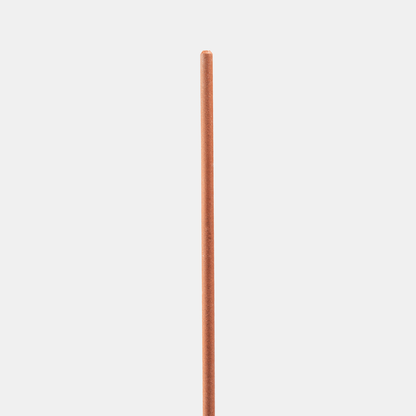

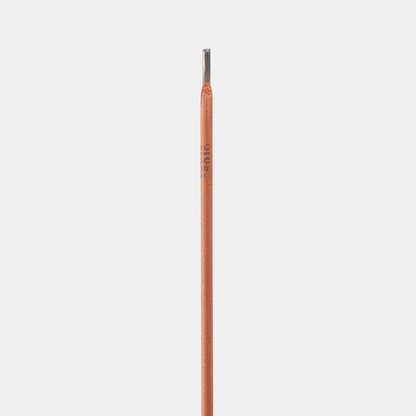

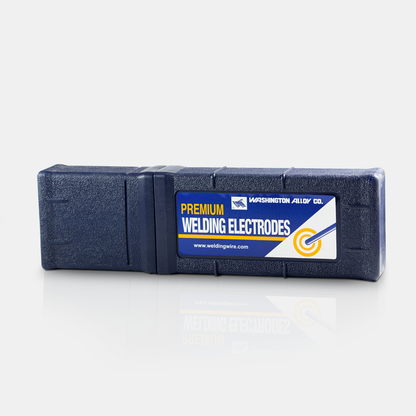

Washington Alloy, TE 6010 033, Welding Electrode, E6010; 5/32 in, 110-160 A, 25-30 V

E6010 is a high cellulose coated electrode designed to provide a smooth stable arc forceful enough to achieve deep penetration into the base metal. This electrode exhibits high deposition efficiency and low spatter loss. It produces a weld puddle that wets and spreads well, yet sets up fast enough to make this electrode ideal for vertical up or vertical down welding techniques. E6010 electrodes produce a flat weld bead with coarse ripples and a thin easily removable slag. E6010 electrodes may be used in the flat, horizontal, vertical or overhead welding positions.

• Size: 5/32 in.
• Amperage Range (Flat): 110-160 A
• Voltage Range (Flat): 25-30 V
• AWS A5.1 Class: E6010
• Electrode Type: High Cellulose Coated
• Welding Positions: Flat, Horizontal, Vertical, Overhead
• Tensile Strength: 70 ksi
• Yield Strength: 61 ksi
• Elongation in 2": 30%
• Charpy V-notch at -20 F: 36 ft lbs
• Carbon Content: 0.10%
• Manganese Content: 0.47%
• Silicon Content: 0.20%
• Phosphorus Content: 0.014%
• Sulphur Content: 0.012%
• Weight: 5 lb
• Compliance: ANSI/AWS A5.1 E6010, ASME SFA 5.1 E6010
