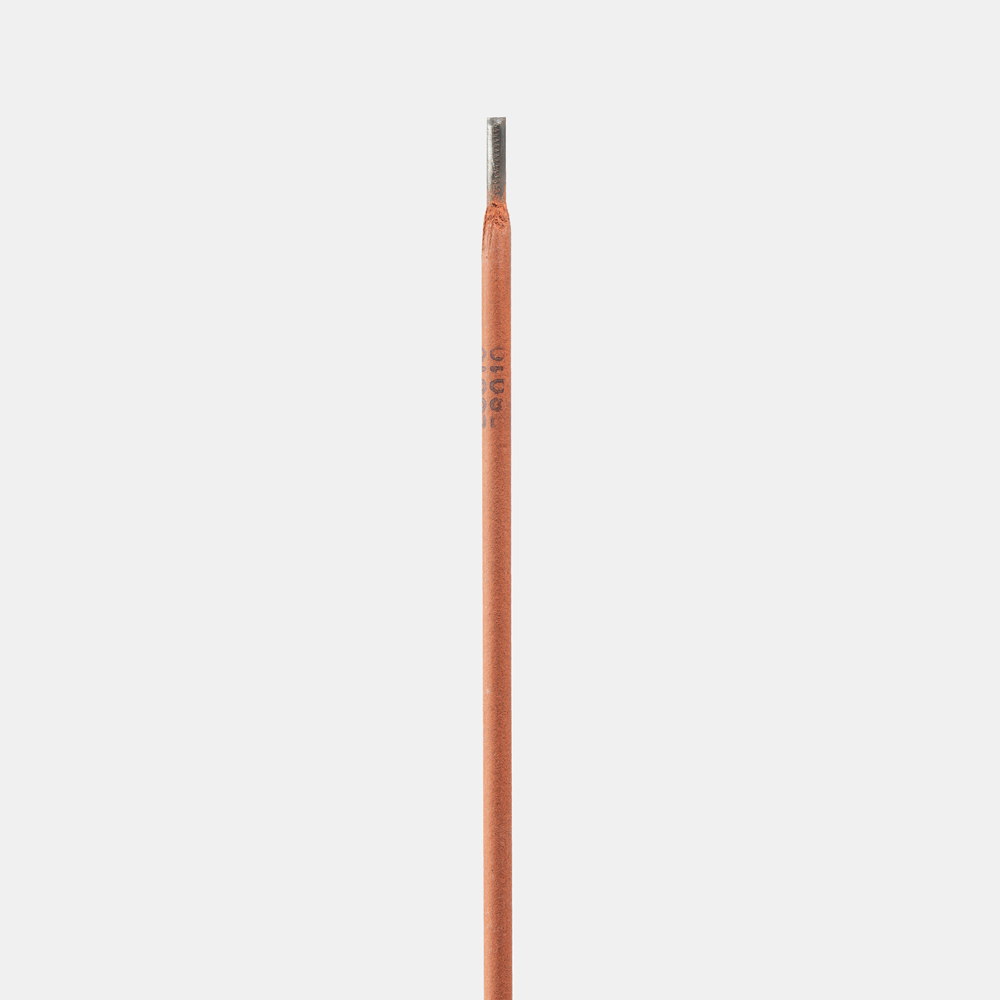

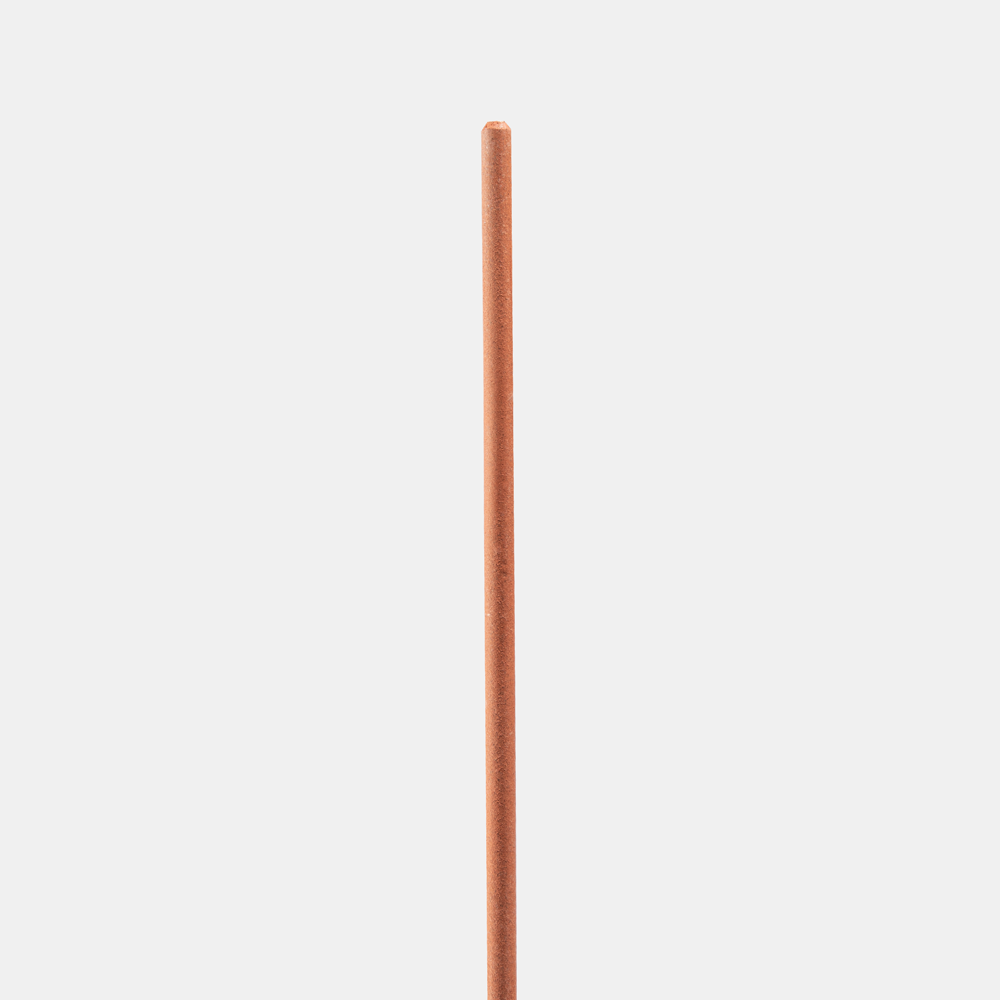

Washington Alloy, TE 6010 03, Welding Electrode, E6010; 5/32 in, AWS A5.1 Class

E6010 is a high cellulose coated electrode designed to provide a smooth stable arc forceful enough to achieve deep penetration into the base metal. This electrode exhibits high deposition efficiency and low spatter loss. It produces a weld puddle that wets and spreads well, yet sets up fast enough to make this electrode ideal for vertical up or vertical down welding techniques. E6010 electrodes produce a flat weld bead with coarse ripples and a thin easily removable slag. E6010 electrodes may be used in the flat, horizontal, vertical or overhead welding positions.

• Diameter: 5/32 in.
• Typical Amperage Range: 110-160 A
• Typical Voltage Range: 25-30 V
• Tensile Strength: 70 ksi
• Yield Strength: 61 ksi
• Elongation: 30%
• Charpy V-notch Impact: 36 ft lbs at -20 F
• AWS Specification: AWS A5.1 E6010
• Coating Type: High Cellulose
• Welding Positions: Flat, Horizontal, Vertical, Overhead

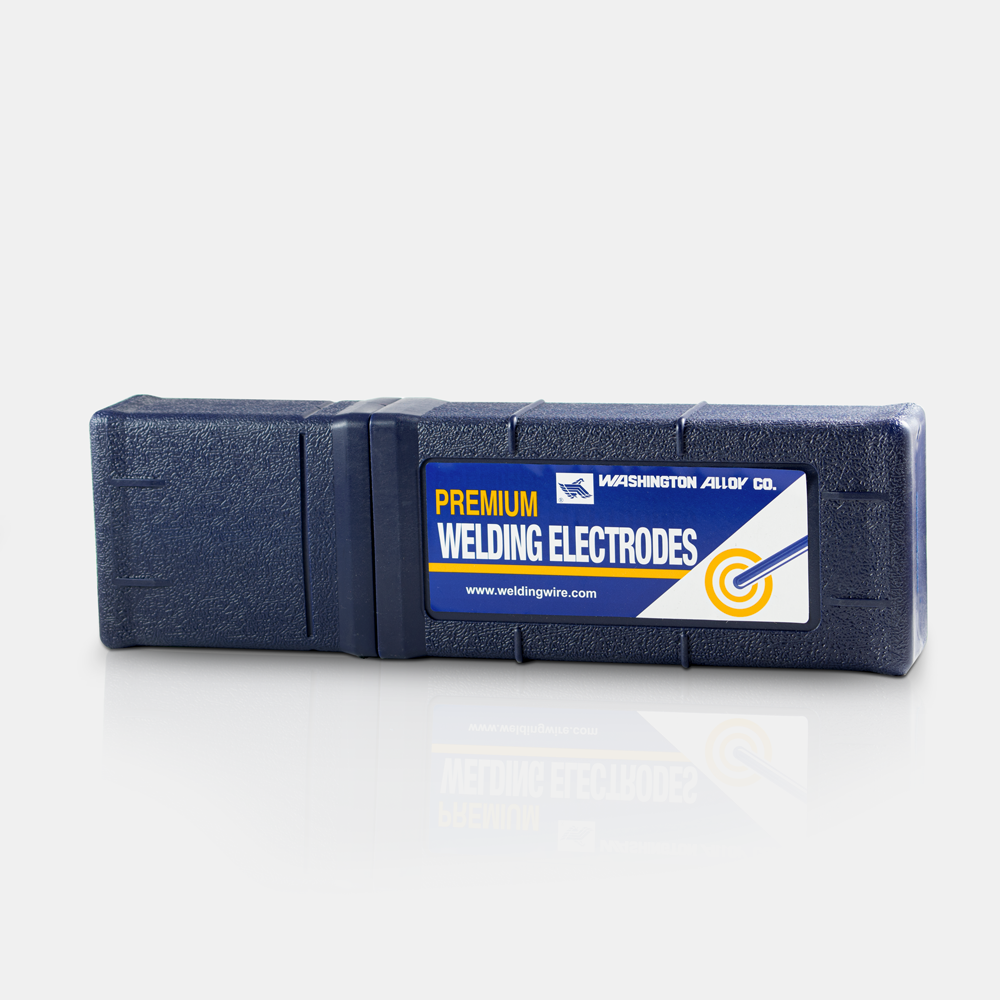

• Weight: 10 lb
