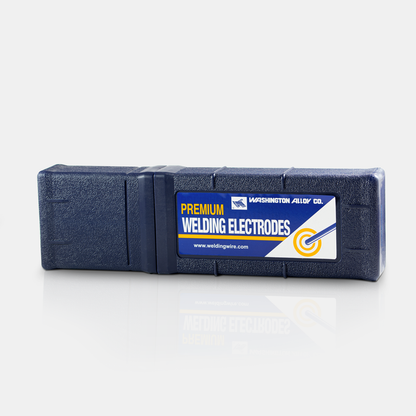

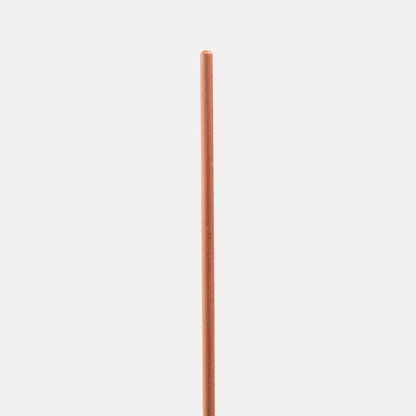

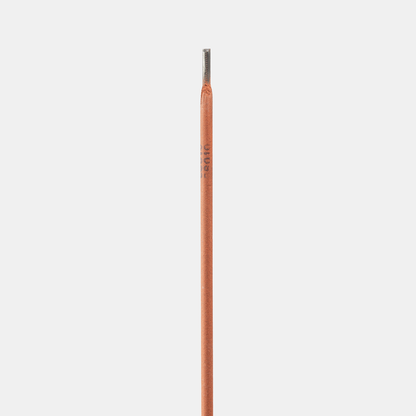

Washington Alloy, TE 6010 022, Electrode, 1/8 in; 80-120A, 25-30V, High Cellulose Coated

E6010 is a high cellulose coated electrode designed to provide a smooth stable arc forceful enough to achieve deep penetration into the base metal. This electrode exhibits high deposition efficiency and low spatter loss. It produces a weld puddle that wets and spreads well, yet sets up fast enough to make this electrode ideal for vertical up or vertical down welding techniques. E6010 electrodes produce a flat weld bead with coarse ripples and a thin easily removable slag. E6010 electrodes may be used in the flat, horizontal, vertical or overhead welding positions.

• Amperage Range: 80-120A
• Voltage Range: 25-30V
• Electrode Diameter: 1/8 in.
• Size: 1/8 in.
• Material: High Cellulose Coated
• Tensile Strength: 70 ksi
• Yield Strength: 61 ksi
• Elongation: 30%
• Charpy V-notch Impact: 36 ft lbs at -20 F
• Carbon Content: 0.10%
• Manganese Content: 0.47%
• Silicon Content: 0.20%
• Phosphorus Content: 0.014%
• Sulfur Content: 0.012%
• AWS A5.1 Class: E6010
• Compliance: ANSI/AWS A5.1 E6010, ASME SFA 5.1 E6010
• Weight: 5 lb
• Alloy / Product Title: E6010
