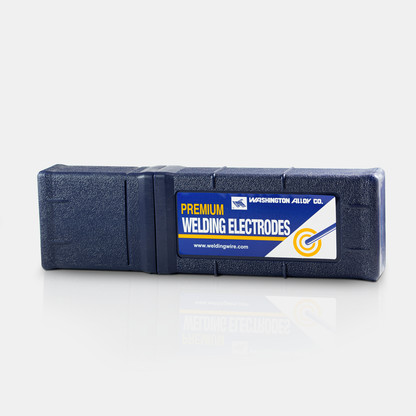

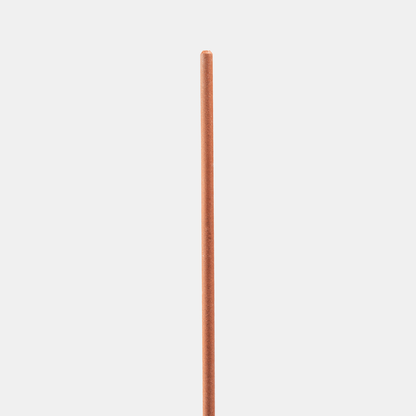

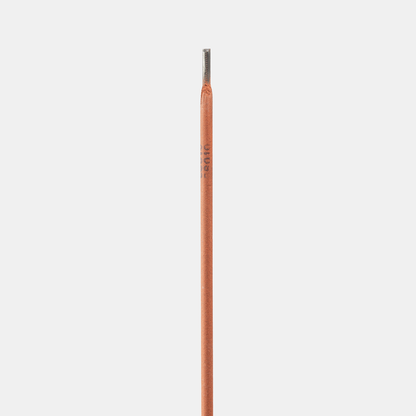

Washington Alloy, TE 6010 02, Welding Electrode, E6010, 1/8 in, AWS A5.1 Class

E6010 is a high cellulose coated electrode designed to provide a smooth stable arc forceful enough to achieve deep penetration into the base metal. This electrode exhibits high deposition efficiency and low spatter loss. It produces a weld puddle that wets and spreads well, yet sets up fast enough to make this electrode ideal for vertical up or vertical down welding techniques. E6010 electrodes produce a flat weld bead with coarse ripples and a thin easily removable slag. E6010 electrodes may be used in the flat, horizontal, vertical or overhead welding positions.

• AWS Specification: A5.1 E6010
• Diameter: 1/8 in.
• Amperage Range: 80-120A (Flat)
• Voltage Range: 25-30V
• Weld Positions: Flat, Horizontal, Vertical, Overhead
• Tensile Strength: 70 ksi
• Yield Strength: 61 ksi
• Elongation: 30%
• Charpy V-Notch Impact: 36 ft lbs at -20 F
• Type: High Cellulose Coated Electrode
• Deposition Efficiency: High
• Spatter Loss: Low
• Weld Bead Appearance: Flat with Coarse Ripples
• Slag: Thin, Easily Removable
• Chemical Composition - Carbon: 0.10%
• Chemical Composition - Manganese: 0.47%
• Chemical Composition - Silicon: 0.20%
• Chemical Composition - Phosphorus: 0.014%
• Chemical Composition - Sulfur: 0.012%
