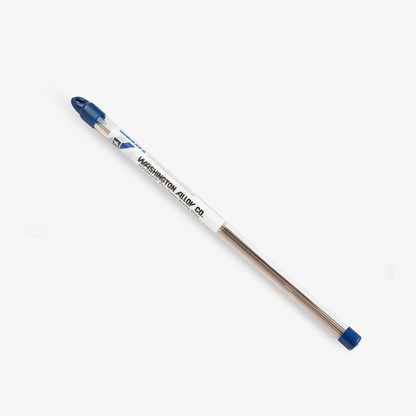

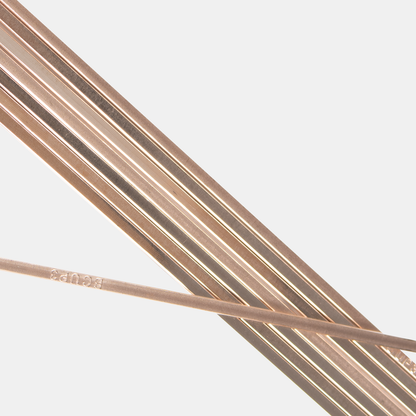

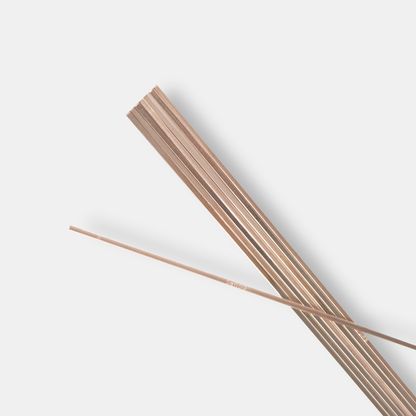

Washington Alloy, TCU PBA/07, Filler Metal, 5/32 in; 36 in; Phos-Bronze A; ERCuSn-A

Washington Alloy Phos-Bronze A filler metal is used for MIG and TIG welding of tin-bronze base metals such as 509 to 519 series, for brass and for overlay welding of steel. Phos-Bronze A contains approximately 5% tin and up to 0.35% phosphorus. The tin content increases the wear resistance of the weld deposit while the phosphorus acts as a deoxidizer. Preheating is recommended.

• Size: 5/32 in.
• Length: 36 in.
• Weight: 10 lb
• Material Composition: Copper remainder, Tin 4.0-6.0%, Phosphorus 0.10-0.35%, Aluminum 0.01%, Lead 0.02%, Iron 0.50%
• Tensile Strength: 35,000 psi min.
• Brinell Hardness: 70-85
• Melting Temperature: 1922 F
• Alloy: PHOS-BRONZE A ERCuSn-A
• AWS Class: ERCuSn-A
• Standards: ANSI/AWS A5.7, ASME SFA 5.7
