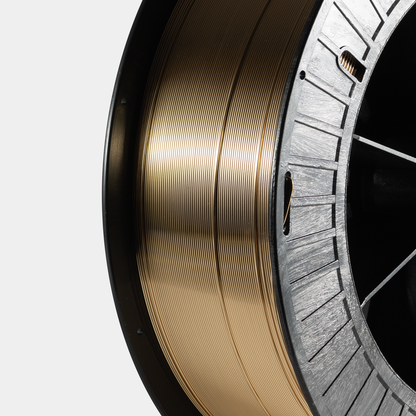

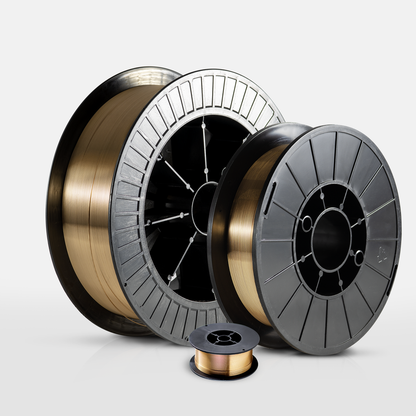

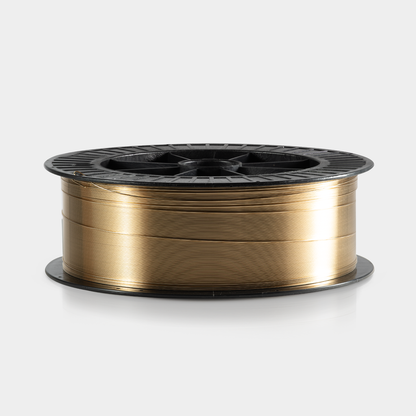

Washington Alloy, TCU PBA 16, Filler Metal, Phos-Bronze A; 0.045 in, AWS A5.7 Class ERCuSn-A, 35,000 psi min.

Washington Alloy Phos-Bronze A filler metal is used for MIG and TIG welding of tin-bronze base metals such as 509 to 519 series, for brass and for overlay welding of steel. Phos-Bronze A contains approximately 5% tin and up to 0.35% phosphorus. The tin content increases the wear resistance of the weld deposit while the phosphorus acts as a deoxidizer. Preheating is recommended.

• AWS A5.7 Class: ERCuSn-A
• Size: 0.045 in.
• Weight: 10 lb
• Material: Phos-Bronze A ERCUSN-A
• Alloy Composition: Approx. 5% Tin, 0.10-0.35% Phosphorus
• Tensile Strength: 35,000 psi min.
• Brinell Hardness: 70-85
• Melting Temperature: Approx. 1922 F
• Compliance: ANSI/AWS A5.7, ASME SFA 5.7
