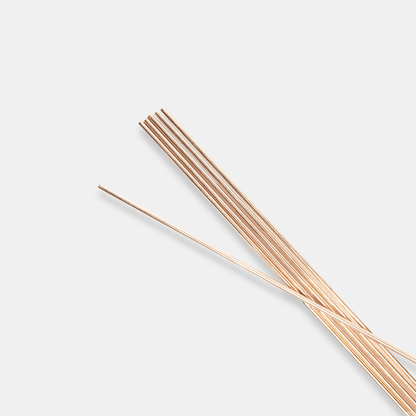

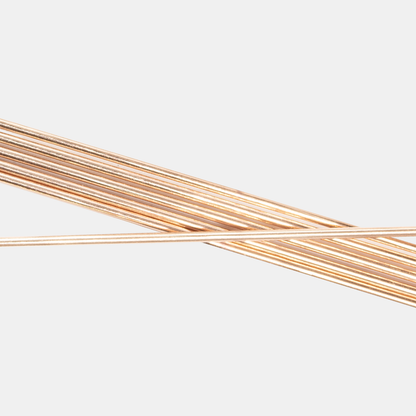

Washington Alloy, TCU DEOX/02, Welding Filler Metal, 0.035 in; 36 in, Deoxidized Copper, Rcu

Washington Alloy DEOX Copper is a 98% copper filler metal used for MIG, TIG, and oxyacetylene welding of copper and copper-alloyed base metals. DEOX Copper contains small amounts of phosphorus and silicon which act as the deoxidizing agents to promote sound weld joints. Washington Alloy DEOX Copper is easy flowing and produces weld deposits that are porosity-free, electrically conductive and the color will match that of copper. The oxyacetylene gas flame must be neutral or slightly oxidizing. Tip size must be one to two sizes larger than the base plate. Preheating should be done only if the part is thick. A boric acid or borax flux is recommended

• Wire Diameter: 0.035 in.
• Weight: 10 lb
• Material: Deoxidized Copper (ERCu), 98% Copper
• Alloy: Rcu
• Length: 36 in
• Electrical Conductivity: 40% IACS annealed
• Tensile Strength: 25,000-30,000 psi
• Brinell Hardness: 50-60
• Elongation: 29%
• Melting Point: 1967 F
• Density: 0.31 lbs/in3
• Phosphorus: 0.15%
• Silicon: 0.50%
• Compliance: ANSI/AWS A5.7 ERCu, ASME SFA 5.7 ERCu, AWS A5.27 Rcu
