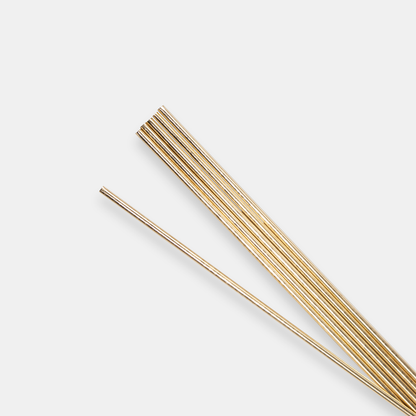

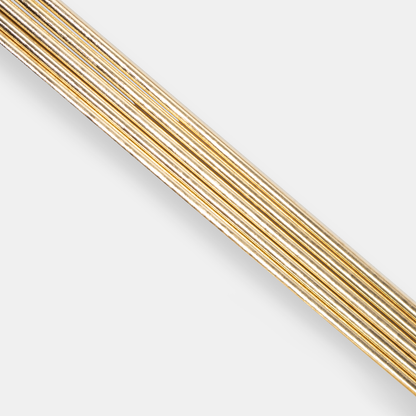

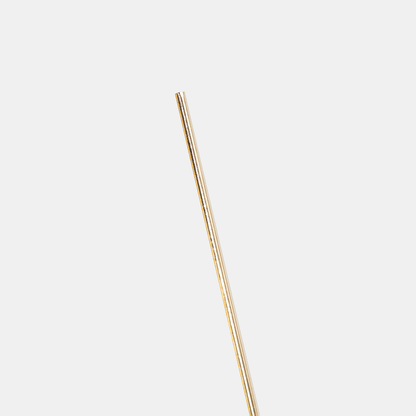

Washington Alloy, TCU CU-NI-AL/05, Filler Metal, 3/32 in; 36 in, Nickel-Aluminum Bronze, ERCuNiAl

Washington Alloy Nickel-Aluminum Bronze filler metal is used for MIG and TIG welding of cast and wrought nickel-aluminum bronze parts such as ship propellers, where high resistance to corrosion, erosion and cavitation in salt or brackish water is required

• Size: 3/32 in.
• Weight: 10 lb
• Material: Nickel-Aluminum Bronze
• AWS A5.7 Class: ERCuNiAl
• Alloy / Product Title: NI-AL BRONZE ERCUNIAL
• Length: 36 in
• Resistance: Corrosion, erosion, cavitation
• Zinc: 0.02%
• Iron: 3.0-5.0%
• Silicon: 0.10%
• Aluminum: 8.5-9.5%
• Lead: 0.02%
• Copper: Remainder
• Manganese: 0.6-3.5%
• Nickel: 4.0-5.5%
• Solidus Temperature: 1904 F
• Liquidus Temperature: 1940 F
• Density: 0.275 lbs/in3
• Thermal Conductivity: 37.0 Btu
• Brinell Hardness: 160-200
• Elongation: 23%
• Tensile Strength: 72,000-140,000 psi
• Yield Strength: 35,000-60,000 psi
• Compliance: ANSI/AWS A5.7, ASME SFA 5.7
