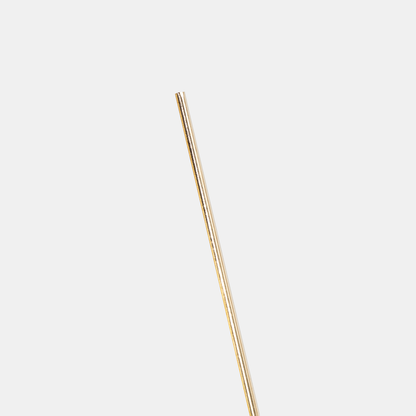

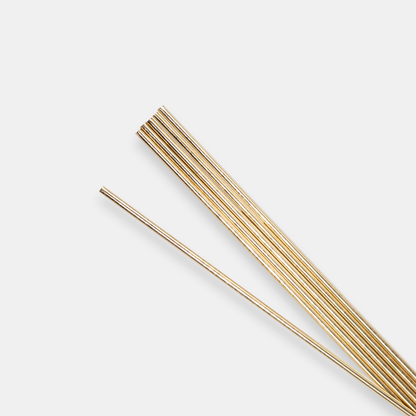

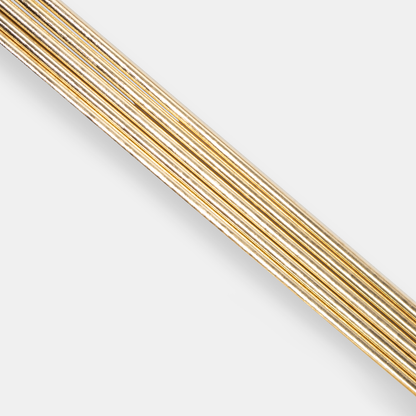

Washington Alloy, TCU AB-1/06, Aluminum Bronze Filler Metal, 1/8 in; 36 in, ERCuAl-A1, 60,000-68,000 psi

Washington Alloy Aluminum Bronze A-1 is an iron-free aluminum bronze filler metal used for MIG and TIG overlay welding of bearing and wear-resistant surfaces exposed to corrosive environments such as salt or brackish water and commonly used acids. Aluminum Bronze A-1 is not recommended for joining

• Size: 1/8 in.
• Length: 36 in.
• Weight: 10 lb
• Material: Aluminum Bronze
• Alloy Type: ERCuAl-A1
• Tensile Strength: 60,000-68,000 psi
• Yield Strength: 25,000-29,000 psi
• Brinell Hardness: 85-115
• Elongation: 48%
• Density: 0.274 lbs/in3
• Thermal Conductivity: 39.0 Btu
• Electrical Conductivity: 13.8% IACS
• Solidus Temperature: 1890 F
• Liquidus Temperature: 1910 F
• Iron Content: Iron-free
• Aluminum Content: 6.0-8.5%
• Copper Content: Remainder
• Zinc Content: 0.20% max
• Silicon Content: 0.10% max
• Lead Content: 0.02% max
• Other Elements Total: 0.50% max
• Compliance: ANSI/AWS A5.7, ASME SFA 5.7
