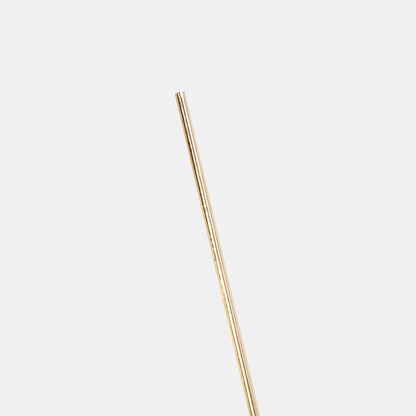

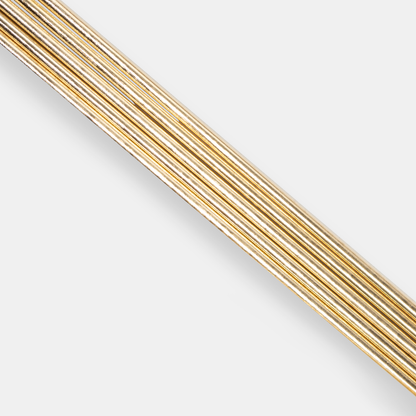

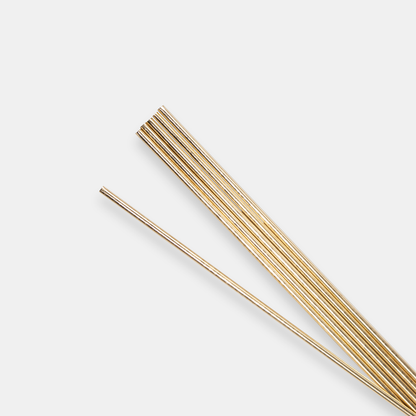

Washington Alloy, TCU AB-1/03, Welding Filler Metal, 0.045 in, 36 in, Aluminum Bronze, AWS A5.7 Class ERCuAl-A1

Washington Alloy Aluminum Bronze A-1 is an iron-free aluminum bronze filler metal used for MIG and TIG overlay welding of bearing and wear-resistant surfaces exposed to corrosive environments such as salt or brackish water and commonly used acids. Aluminum Bronze A-1 is not recommended for joining

• Size: 0.045 in.
• Length: 36 in
• Material: Aluminum Bronze
• AWS A5.7 Class: ERCuAl-A1
• Weight: 10 lb
• Compliance: ANSI/AWS A5.7, ASME SFA 5.7
• Composition Zinc: 0.20%
• Composition Iron: 0.0%
• Composition Silicon: 0.10%
• Composition Aluminum: 6.0-8.5%
• Composition Lead: 0.02%
• Composition Copper: Remainder
• Solidus Temperature: 1890 F
• Liquidus Temperature: 1910 F
• Electrical Conductivity: 13.8% IACS
• Density: 0.274 lbs/in3
• Thermal Conductivity: 39.0 Btu
• Elongation: 48%
• Tensile Strength: 60,000-68,000 psi
• Brinell Hardness: 85-115
• Yield Strength: 25,000-29,000 psi
