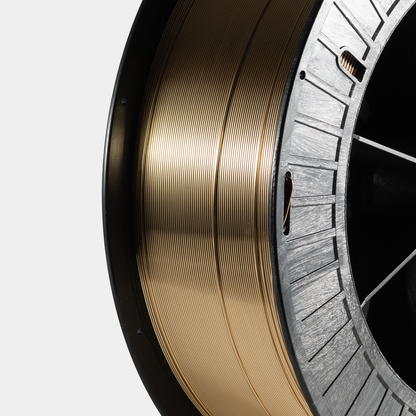

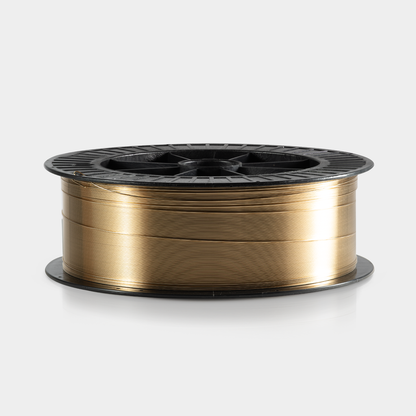

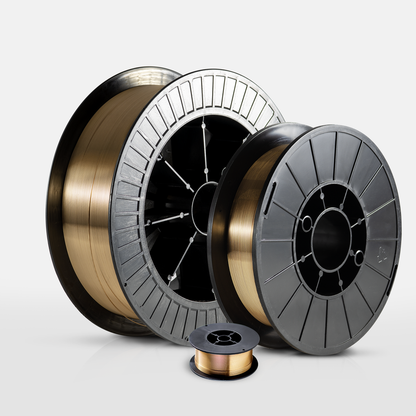

Washington Alloy, TCU AB-1 07, Filler Metal, 0.035 in; Aluminum Bronze A-1; 60,000-68,000 psi Tensile Strength; AWS A5.7 Compliance

Washington Alloy Aluminum Bronze A-1 is an iron-free aluminum bronze filler metal used for MIG and TIG overlay welding of bearing and wear-resistant surfaces exposed to corrosive environments such as salt or brackish water and commonly used acids. Aluminum Bronze A-1 is not recommended for joining

• Wire Diameter: 0.035 in.
• Weight: 2 lb
• Alloy Type: Aluminum Bronze A-1
• Tensile Strength: 60,000-68,000 psi
• Yield Strength: 25,000-29,000 psi
• Brinell Hardness: 85-115
• Elongation: 48%
• Density: 0.274 lbs/in3
• Thermal Conductivity: 39.0 Btu
• Electrical Conductivity: 13.8% IACS
• Solidus Temperature: 1890 F
• Liquidus Temperature: 1910 F
• Material Composition: Aluminum 6.0-8.5%, Copper remainder, Zinc 0.20%, Silicon 0.10%, Lead 0.02%, Iron trace max 0.50% total others
• Compliance Standards: AWS A5.7 ERCuAl-A1, ASME SFA 5.7 ERCuAl-A1
