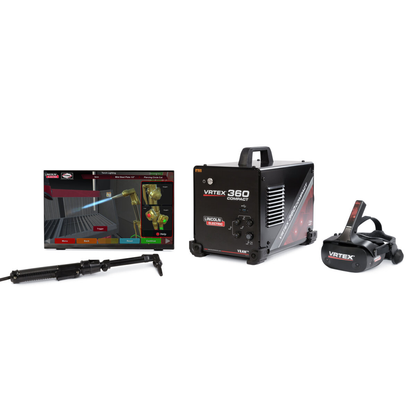

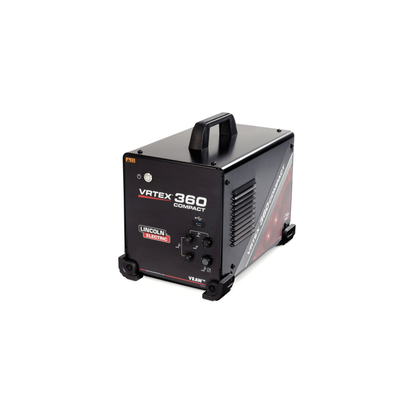

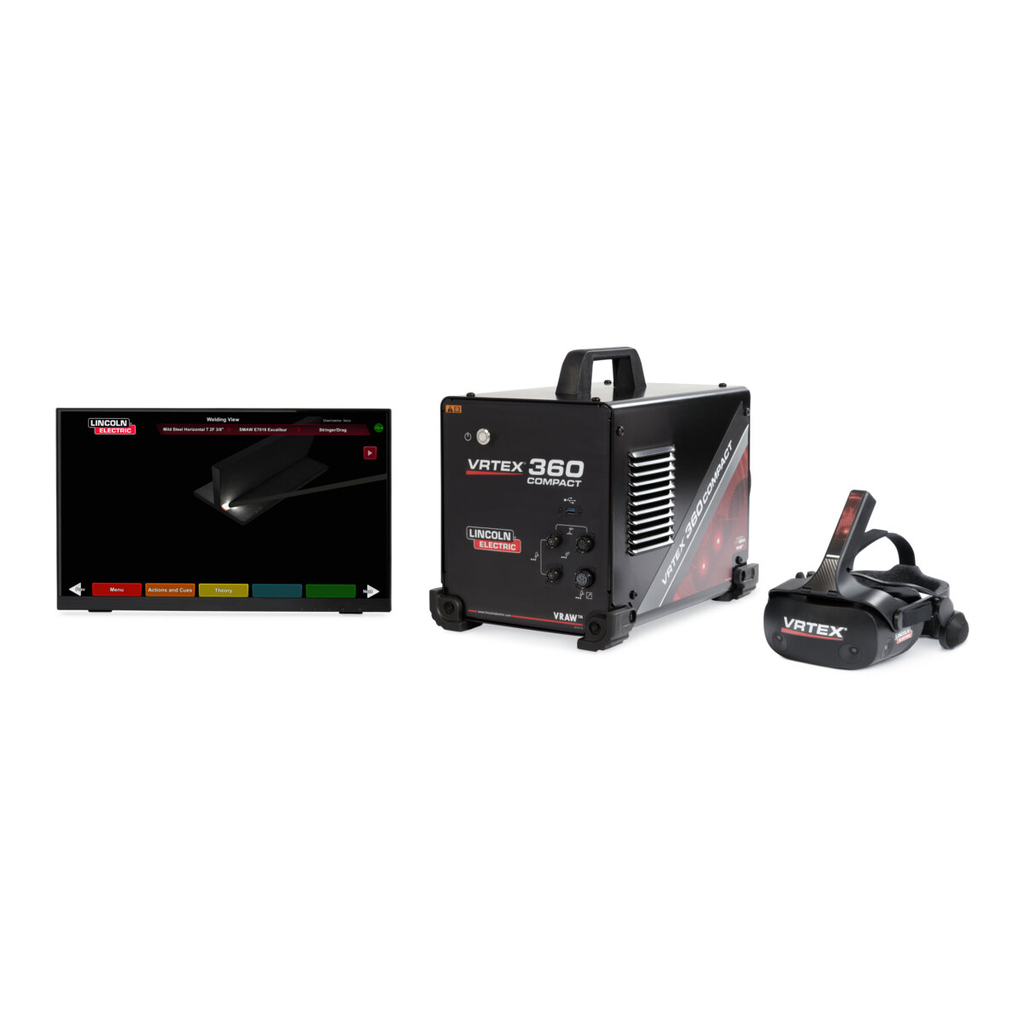

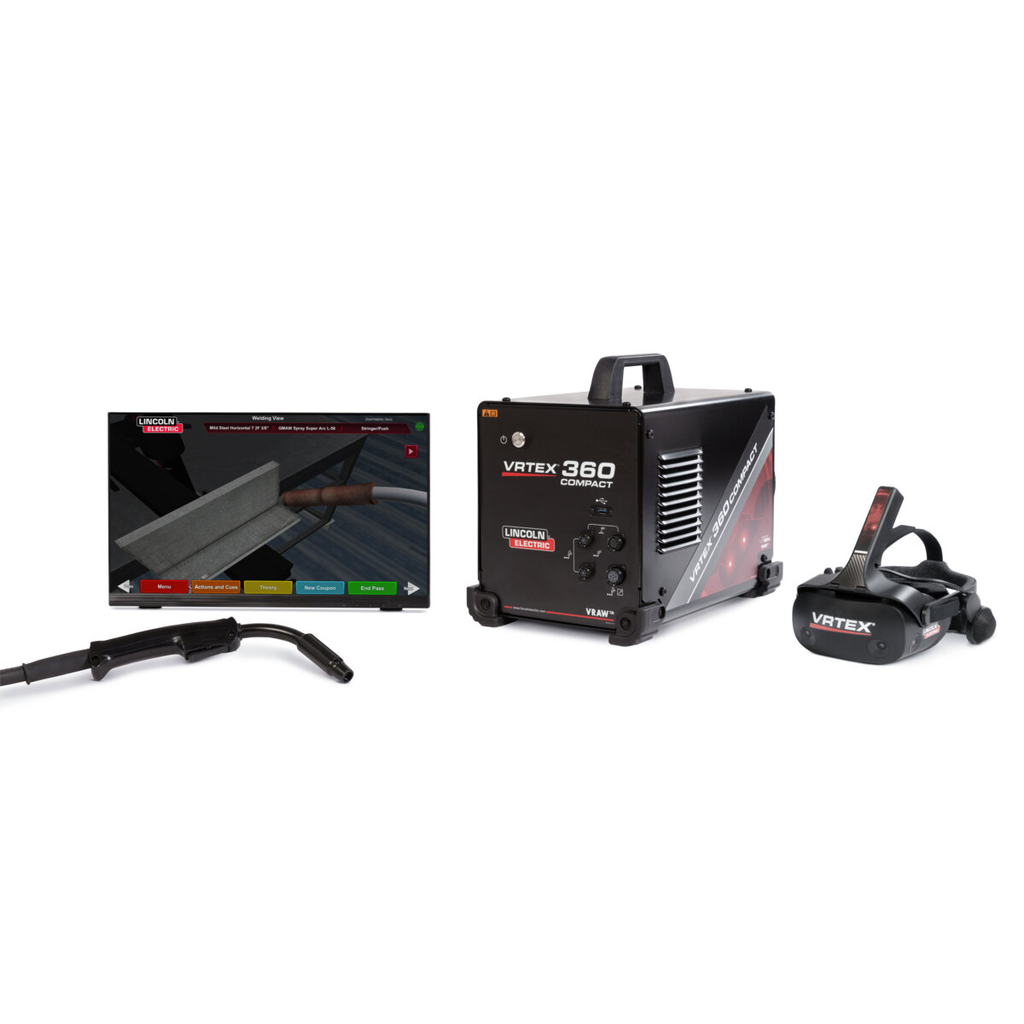

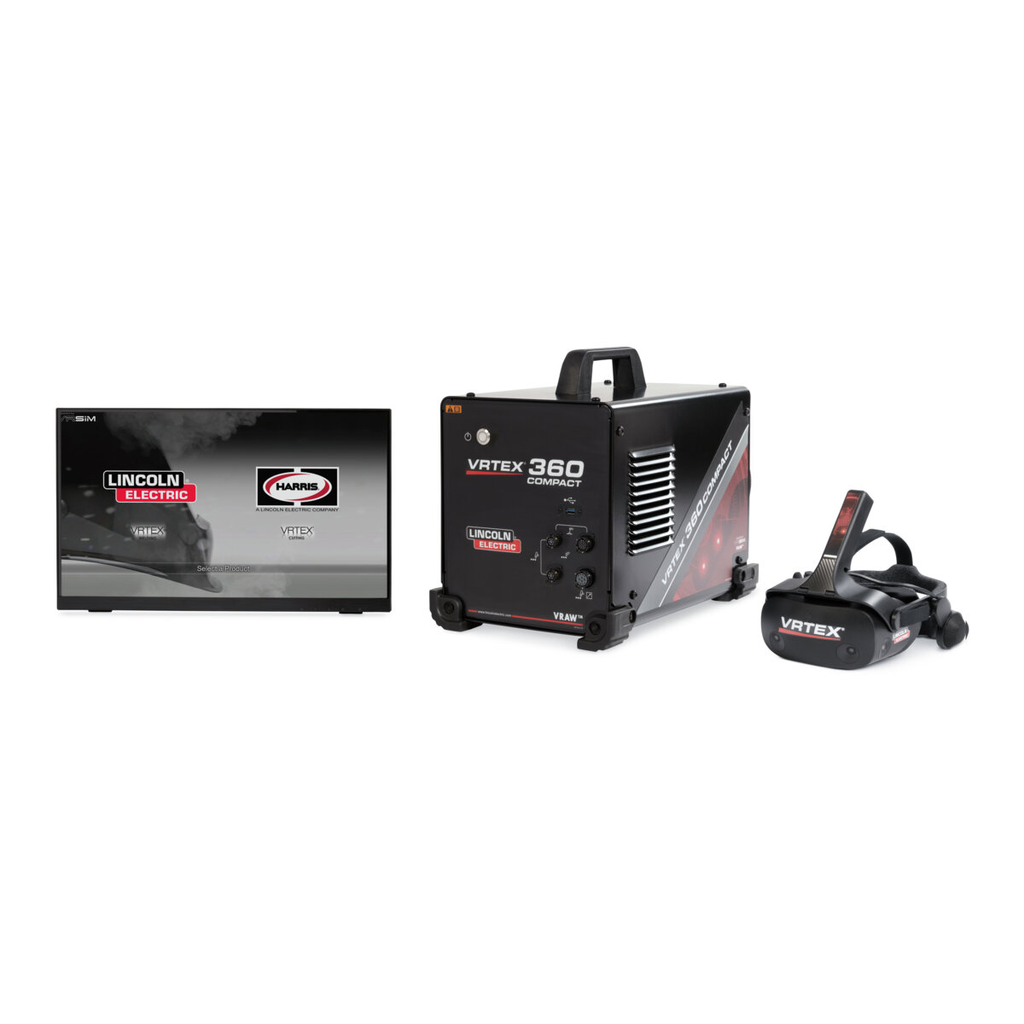

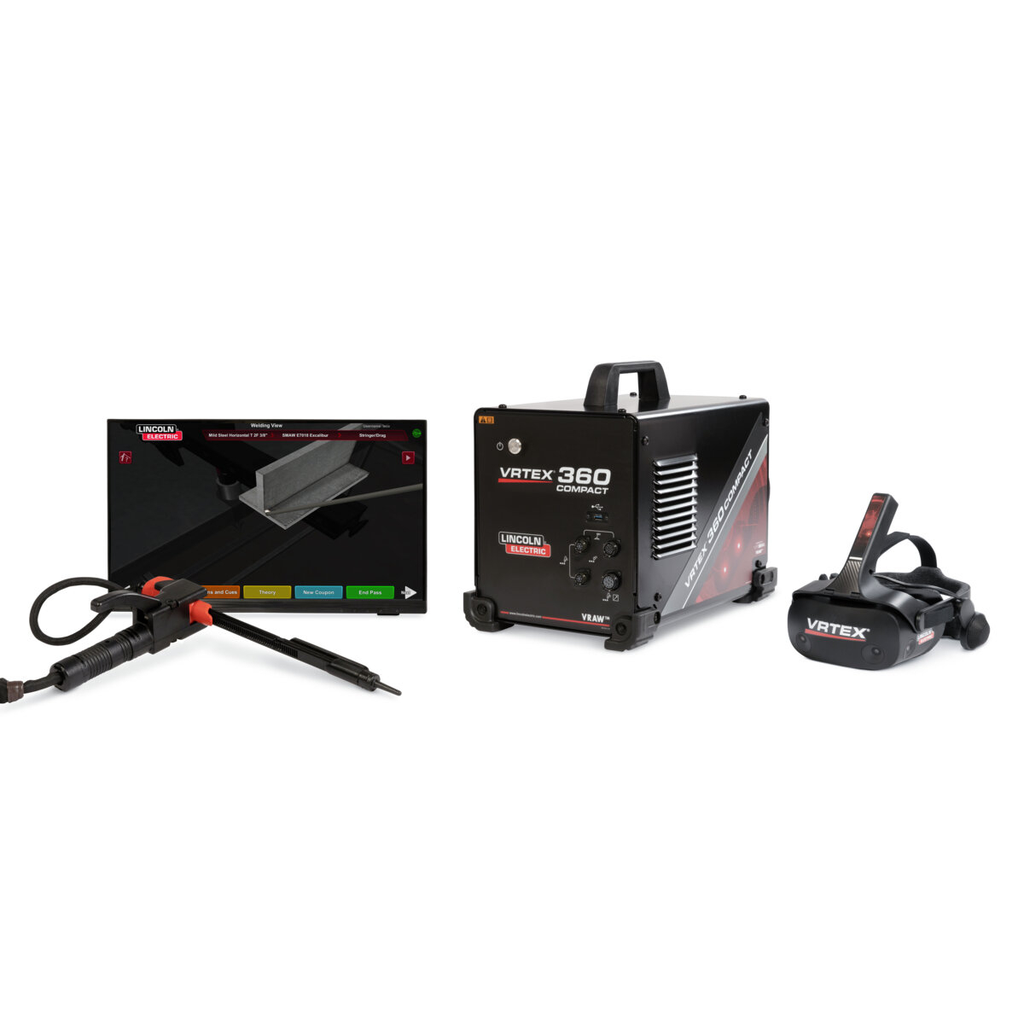

Lincoln Electric, K4914-15, Virtual Welding Trainer, Compact Bundle, Realistic Puddle Simulation, Tracks Weld Parameters

Life-like Welding Environment: Realistic puddle and actual welding sound helps welders learn to respond and adjust welding technique. Simulates sparks, slag, grinding and weld cooling. Welding discontinuities appear when improper welding technique is used. Virtual bend test provides results instantly and reveals what causes a weld to pass or fail. Reinforcement for Students: Demos of successful welds. Replicates proper machine set-up using a Welding Procedure Specification. Students must select gas type, process, gas flow, amperage/voltage and wire-feed speed in the system. Tracks and scores key weld parameters including work angle, travel angle, travel speed, distance and position.

Features

• Virtual bend test provides results instantly and reveals what causes a weld to pass or fail.
• Extremely realistic weld puddle is visually and audibly responsive to operator behavior, helping welders learn when to adjust welding technique. Welding discontinuities appear when improper technique is used.
• Demo, Replay & Lesson Mode mode helps instructors and welders identify what went wrong or well.
• Practice flat, horizontal, vertical and overhead 5G and 6G on mild steel, aluminum, stainless steel.
• Tracks and scores key weld parameters including work angle, travel angle, travel speed, distance and position.
• Included on USB:K3205-1 First Edition-SMAW Welding Training Curriculum,K3206-1 First Edition-GMAW/FCAW Welding Training Curriculum,K4057-1 VRTEX Project Based Lesson 1-Student Workbook,K4057-2 VRTEX Project Based Lesson 1-Instructor Guide(Table shown in image is not included)
• Simulates sparks, slag, grinding and weld cooling.

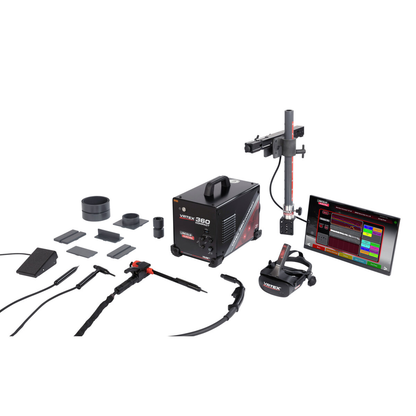

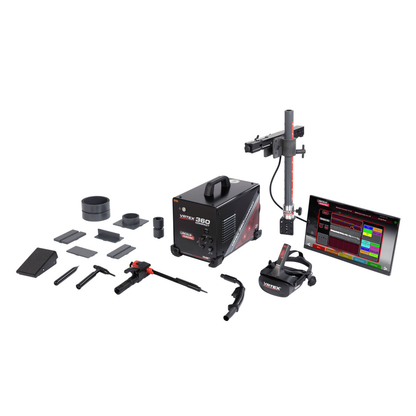

• Retractable SMAW stick stinger, GMAW/FCAW gun and GTAW TIG torch, filler metal and adaptive foot pedal devices realistically simulate the look, feel and action of actual guns and torches.

• Processor: Intel Core i7
• Graphics Card: NVIDIA GeForce GTX-1050Ti
• RAM: 4 GB DDR4-1600
• Storage: 120 GB SSD NVMe SATA 2.5 in.
• Display Size: 22 in.
• Display Resolution: 1920x1080
• Vision Module Resolution: 2160x2160 per eye
• Power Supply: 115-230 VAC 1 phase 50/60 Hz
• Operating Temperature: 0-45 C
• Humidity Range: 10-80%
• Welding Positions: 2F/PB, 3F/PF, 4F/PD, 5F/PH, 1G/PA, 2G/PC, 3G/PF, 4G/PE, 5G/PH/PJ, 6G/H-L045/J-L045
• Simulated Welding Processes: GMAW Short Arc, GMAW Axial Spray, GMAW Pulse, FCAW Gas-Shielded, FCAW Self-Shielded, SMAW E6013, SMAW E7018, SMAW E6010, GTAW with/without filler metal
• Supported Materials: Mild Steel, Stainless Steel, Aluminum
• Compliance: CE, CSA, RCM, EAC, ISO 9001, ISO 14001
• Country of Origin: United States
• Operating System: Windows 10 Pro
• Languages Available: 15 (including English, French, Spanish, German, Russian, Portuguese, Polish, Japanese, Chinese, Turkish, Finnish, Italian, Korean, Swedish, Norwegian)
