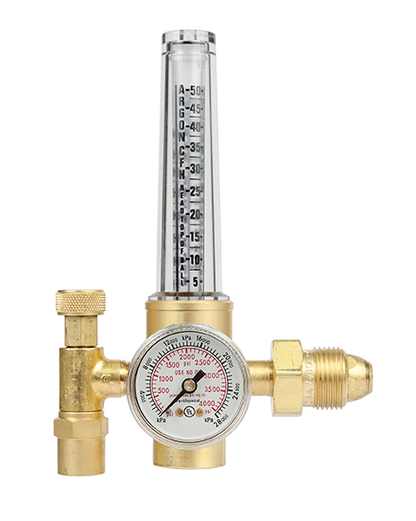

Victor, 0781-2723, Flowmeter Regulator, CGA-580, 50 cfh Argon, 38 cfh CO2, 1-1/2 in Gauge Diameter

Victor® CutSkill® HRF 1425 Light Duty Flow Meter offers up to 50 CFH flow range for argon and up to 38 CFH for carbon dioxide. Flow meter provides 3000 psig maximum inlet pressure and 25 psig outlet pressure. Flow meter with CGA 580 inlet connection and 5/8" - 18 RH(F) outlet connection features single stage piston design. Flow meter in machined brass construction consist of PTFE seat and is ideal for measuring as well as regulating gas flow.

Features

• Machined brass body
• Available in CGA 320 and 580 inlet connections
• Single stage piston design
• For measuring and regulating gas flow
• Teflon seat
• Optional MIG kit available with 10' (3.1 m) hose

• Flow Rate: 38 cfh Carbon Dioxide, 50 cfh Argon
• Gauge Diameter: 1.5 in
• Inlet Connection: CGA-580
• Outlet Connection: 5/8 in - 18 RH Female
• Physical Size: 6.2 x 7.6 x 7.2 in
• Material: Brass, PTFE
• Trade Name: Cutskill
• Fuel Gas: Argon, Carbon Dioxide
• Workload: Light Duty
• Model: HRF1425-580
• Regulator Type: Flowmeter Regulator
• Regulator SubType: Flowmeter Regulator
• Country of Origin: Mexico
