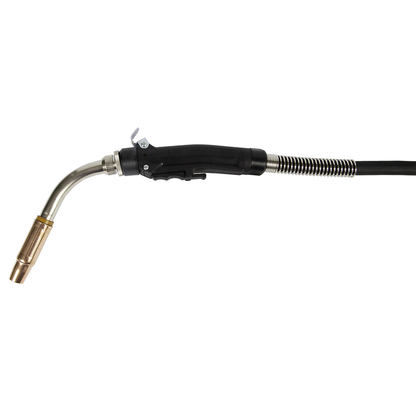

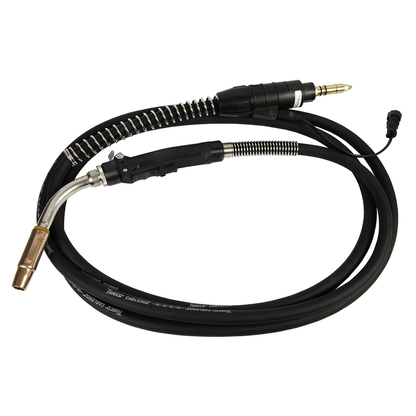

Tweco, 10481260, MIG Gun, 450 A, 15 ft, .035" - .045", Air Cooled, Miller Style Connector

Tweco® Eliminator® 450 A MIG Gun accommodates wires of size 0.035 - 0.045" and features metal jacketed conductor tube for long lasting usage. Air-cooled MIG gun featuring strain relief front and rear spring with cable support offers 60% duty cycle with CO2 gas. 15' Power cable offers good wire feedability and features Miller® style rear connection. Gun has dual spring and rubber strain reliefs on both ends. Gun incorporating standard 60 deg conductor tube offers to swivel 360 deg around handle and can be rapidly removed and replaced without removing the conduit. MIG gun features fully insulated Mig-Kwik connection that lets user to connect or disconnect at the wire feeder.

Accessories

• Cable Clamp 136 2060-2690
• Rear String Relief Spring 235RSSR 2060-2035
• Rear Cable Connector Repair Kit(Euro) 174X-M 2040-2181
• Front Cable Connector Repair Kit ELC100-2RK 2020-2182
• Protective Cable Wrap, 50 ft (15.2 m) per box TCR50 9900-1150
• Conductor Tube (on all guns up to 15ft (4.6m) EL64J-60 1640-1137
• Binder Posts & Screws (2Required) ELC124FM 2060-2648
• Trigger ELC94 2060-2647
• Nut Insulator EL66-CR 2060-2667
• Cablehoz Assembly, 15ft(5 m)(Euro) XELC415R 1740-2532
• Control Wire (Direct Plug Only) MS354-DSM 2060-2140
• Nut Cover Ring & Sleeve EL66-CR21 2060-2666
• Conductor Tube (on all guns over 15ft (4.6m) EL64J-45 1640-1136
• Handle (Includes Items #10 ) ELC84-H 2060-2643
• Rear Case (Euro) X6RC 2060-2006
• Gun Hanger 152 2020-2152
• Rear Case (Direct Plug) C6RC 2060-2041
• Front Strain Relief Spring & Cap MS144 2060-2131 Cablehoz Assembly, 15ft(5 m)(Direct Plug) ELC415R 1720-2142
• Nozzle Insulator 63J-3 1630-1121
• Trigger Blade Assembly ELC94-BL 2060-2671
• Diffuser EL54-SW 1560-1114

Features

• Wide welding applications: Spray transfer and pulse welding modes - straight CO2 or mixed gases
• Rated at 60% duty cycle using co2 gas
• Durable metal jacketed conductor tube
• Improved feedability
• Metal jacketed articulating conductor tube standard, or fixed locking conductor tube optional, 4 trigger wires
• Improved performance patented contact tip: No threads - cam style interface between contact tip and gas diffuser for increased surface contact
• Spare trigger leads in Cablehoz®
• Front and rear spring strain relief and cable support
• Field repairable mechanical cable connections for Cablehoz®
• The Eliminator® has been taken to new heights by the following improvements: Dual spring and rubber strain reliefs on both ends of MIG Gun
• Field repairable: Split-half handle case provides access for ease of repair
• Ball and socket conductor tube design: Articulating conductor tube - three layer conductor tube construction (copper tube/silicon resin fiberglass insulator/metal jacket)
• Patented, extended life consumables
• Operator appeal: Ergonomic handle to reduce operator fatigue extended trigger length to reduce radiated heat to welder's gloved hand
• Compact, ergonomic handle design

Applications

• Farm
• Garage
• Shop Jobs
• Production
• Maintenance And Repair Applications
• Artistic Metal Working
• Hobby/DIY

• Amperage: 450 A
• Cable Length: 15 ft
• Wire Size Range: 0.035 - 0.045 in
• Cooling Method: Air Cooled
• Connector Style: Miller Style
• Physical Size: 14.6 x 23 x 3.2 in
• Wire Type: Solid, Flux Cored Gas Shielded, Flux Cored Self-Shielded, Aluminum
• Country of Origin: Mexico
