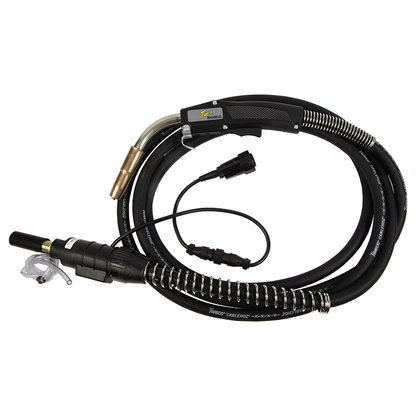

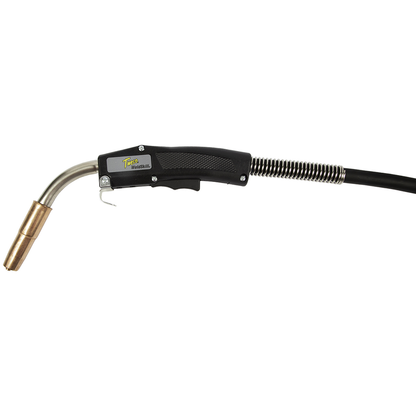

Tweco, 10471077, MIG Gun, 400 A, 15 ft, Air Cooled, Lincoln Style Connector, .035" - .045" Wire Size

Tweco® Weldskill®® 400 A MIG Gun accommodates wires of size 0.035 - 0.045" and features metal jacketed conductor tube. Air-cooled MIG gun is designed for light/medium duty fabrication and offers 60% duty cycle with CO2 gas. 15' Power cable offers good wire feedability and features Lincoln® style rear connection. Gun incorporating standard 60 deg conductor tube offers to swivel 360 deg around handle and can be rapidly removed and replaced without removing the conduit. MIG gun features fully insulated Mig-Kwik connection that lets user to connect or disconnect at the wire feeder.

Accessories

• Cable Clamp 136 2060-269015 Front Strain Relief Spring WM4SSR 2040-2141
• Gas Diffusers WS54A 1540-1145
• Rear Case (Euro Style) X6RC 2060-2006
• Conductor Tube (on all gunsover 15ft (4.6m) 64J-45 1640-1105
• Cablehoz® 400 1740-2100
• Rear Strain Relief Spring 235RSSR 2060-2035
• Binder Post & Screw –(2 ea. Required) 122FM 2020-2122
• Front Cable Connector 104 2040-2104
• Binder Post & Screw – (2 ea. Required) 122FMS 2020-2123
• Adapter (Direct Plug) M170-4H 2020-2166
• Gun Hanger 152 2020-2152
• Control Wire (Standard) MS354-DSM 2060-2140Control Wire (Dual Schedule) 194DS 2040-2195
• Nozzle Insulators WS34A 1340-1125
• Rear Case (Direct Plug) R6RC 2060-2040
• Conductor Tubes (on all guns up to 15ft (4.6m) WM400J-60 1640-1305
• Trigger Assembly WM92 2020-2096
• Rear Cable Connector (Euro Style) 174X-M 2040-2181
• Trigger Blades 92C 2020-2094
• Handle Assembly WM4-80 2042-2031
• Trigger Control Wire Terminal (2 ea.) 244 2040-2244

Applications

• Artistic Metal Working
• Maintenance And Repair Applications
• Garage
• Shop Jobs
• Hobby/DIY
• Farm
• Production

Features

• Operator appeal: Oval handle shape reduces operator fatigue
• Heavy-duty contact tips in high heat applications offered
• Metal jacketed conductor tube - 60° @ 3" Radius
• Rated at 60% duty cycle using co2 gas
• Field repairable: Split-half handle case provides access for ease of repair - Easily repair Cablehoz®, no additional connectors required
• Durable and dependable for industrial applications: Heavy-duty design
• Front and rear spring strain relief
• High impact resistant handle and components
• Three layer conductor tube construction (copper tube/ silicon-resin glass insulator/metal jacket)
• Improved performance with longer life consumables: Wide selection of front end consumables available

• Amperage: 400 A
• Cable Length: 15 ft
• Cooling Method: Air Cooled
• Wire Size: 0.035" - 0.045"
• Connector Style: Lincoln Style Connector
• Wire Type: Solid, Flux Cored Gas Shielded, Flux Cored Self-Shielded, Aluminum
• Physical Size: 14.3 x 23.3 x 3.3 in
• Country of Origin: Mexico
• Conductor Tube Material: Metal Jacketed
• Duty Cycle: 60%
• Gas Type: CO2
