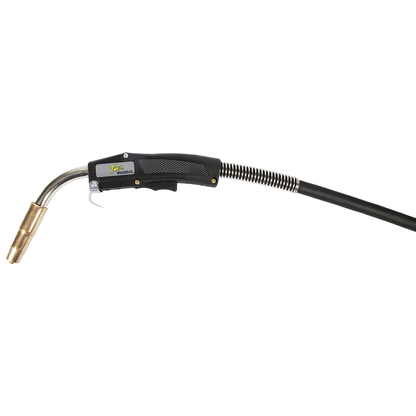

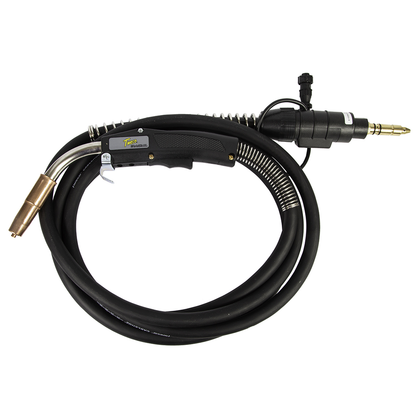

Tweco, 10471032, MIG Gun, 400 A, 15 ft; Air Cooled, Miller Style Connector, 1/16" Wire Size

Tweco® Weldskill®® 400 A MIG Gun accommodates wires of size up to 1/16" and features metal jacketed conductor tube. Air-cooled MIG gun is designed for light/medium duty fabrication and offers 60% duty cycle with CO2 gas. 15' Power cable offers good wire feedability and features Miller® style rear connection. Gun incorporating standard 60 deg conductor tube offers to swivel 360 deg around handle and can be rapidly removed and replaced without removing the conduit. MIG gun features fully insulated Mig-Kwik connection that lets user to connect or disconnect at the wire feeder.

Applications

• Artistic Metal Working
• Shop Jobs
• Production
• Garage
• Hobby/DIY
• Maintenance And Repair Applications
• Farm

Features

• Metal jacketed conductor tube - 60° @ 3" Radius
• High impact resistant handle and components
• Operator appeal: Oval handle shape reduces operator fatigue
• Front and rear spring strain relief
• Improved performance with longer life consumables: Wide selection of front end consumables available
• Durable and dependable for industrial applications: Heavy-duty design
• Heavy-duty contact tips in high heat applications offered
• Rated at 60% duty cycle using co2 gas
• Field repairable: Split-half handle case provides access for ease of repair - Easily repair Cablehoz®, no additional connectors required
• Three layer conductor tube construction (copper tube/ silicon-resin glass insulator/metal jacket)

Accessories

• Binder Post & Screw –(2 ea. Required) 122FM 2020-2122
• Trigger Assembly WM92 2020-2096
• Adapter (Direct Plug) M170-4H 2020-2166
• Handle Assembly WM4-80 2042-2031
• Binder Post & Screw – (2 ea. Required) 122FMS 2020-2123
• Front Cable Connector 104 2040-2104
• Conductor Tubes (on all guns up to 15ft (4.6m) WM400J-60 1640-1305
• Rear Case (Euro Style) X6RC 2060-2006
• Trigger Blades 92C 2020-2094
• Nozzle Insulators WS34A 1340-1125
• Cablehoz® 400 1740-2100
• Conductor Tube (on all gunsover 15ft (4.6m) 64J-45 1640-1105
• Gun Hanger 152 2020-2152
• Control Wire (Standard) MS354-DSM 2060-2140Control Wire (Dual Schedule) 194DS 2040-2195
• Rear Strain Relief Spring 235RSSR 2060-2035
• Rear Case (Direct Plug) R6RC 2060-2040
• Cable Clamp 136 2060-269015 Front Strain Relief Spring WM4SSR 2040-2141
• Gas Diffusers WS54A 1540-1145
• Trigger Control Wire Terminal (2 ea.) 244 2040-2244
• Rear Cable Connector (Euro Style) 174X-M 2040-2181

• Amperage: 400 A
• Cable Length: 15 ft
• Cooling Method: Air Cooled
• Duty Cycle: 60% at CO2 gas
• Wire Size: Up to 1/16 in
• Rear Connection: Miller Style Connector
• Swivel: 360 deg
• Physical Size: 14.3 x 23.2 x 3.3 in
• Wire Type: Solid, Flux Cored Gas Shielded, Flux Cored Self-Shielded, Aluminum
• Conductor Tube: Metal jacketed
• Country of Origin: Mexico
• Trade Name: Tweco, Weldskill WM400
