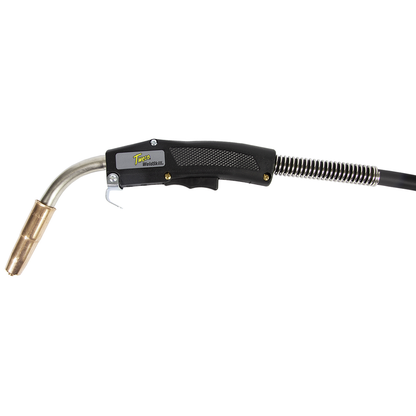

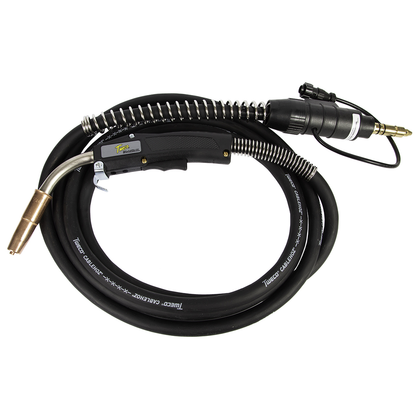

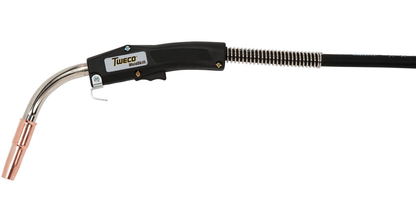

Tweco, 10471027, MIG Gun, 400 A, 15 ft, Air Cooled, .035" - .045", Miller Style Connector

Tweco® Weldskill®® 400 A MIG Gun accommodates wires of size 0.035 - 0.045" and features metal jacketed conductor tube. Air-cooled MIG gun is designed for light/medium duty fabrication and offers 60% duty cycle with CO2 gas. 15' Power cable offers good wire feedability and features Miller® style rear connection. Gun incorporating standard 60 deg conductor tube offers to swivel 360 deg around handle and can be rapidly removed and replaced without removing the conduit. MIG gun features fully insulated Mig-Kwik connection that lets user to connect or disconnect at the wire feeder.

Accessories

• Rear Strain Relief Spring 235RSSR 2060-2035
• Binder Post & Screw – (2 ea. Required) 122FMS 2020-2123
• Front Cable Connector 104 2040-2104
• Control Wire (Standard) MS354-DSM 2060-2140Control Wire (Dual Schedule) 194DS 2040-2195
• Gas Diffusers WS54A 1540-1145
• Nozzle Insulators WS34A 1340-1125
• Trigger Control Wire Terminal (2 ea.) 244 2040-2244
• Cable Clamp 136 2060-269015 Front Strain Relief Spring WM4SSR 2040-2141
• Rear Case (Euro Style) X6RC 2060-2006
• Gun Hanger 152 2020-2152
• Trigger Assembly WM92 2020-2096
• Handle Assembly WM4-80 2042-2031
• Conductor Tubes (on all guns up to 15ft (4.6m) WM400J-60 1640-1305
• Binder Post & Screw –(2 ea. Required) 122FM 2020-2122
• Adapter (Direct Plug) M170-4H 2020-2166
• Conductor Tube (on all gunsover 15ft (4.6m) 64J-45 1640-1105
• Rear Case (Direct Plug) R6RC 2060-2040
• Rear Cable Connector (Euro Style) 174X-M 2040-2181
• Trigger Blades 92C 2020-2094
• Cablehoz® 400 1740-2100

Features

• Metal jacketed conductor tube - 60° @ 3" Radius
• Front and rear spring strain relief
• Field repairable: Split-half handle case provides access for ease of repair - Easily repair Cablehoz®, no additional connectors required
• Durable and dependable for industrial applications: Heavy-duty design
• Three layer conductor tube construction (copper tube/ silicon-resin glass insulator/metal jacket)
• Heavy-duty contact tips in high heat applications offered
• Rated at 60% duty cycle using co2 gas
• High impact resistant handle and components
• Improved performance with longer life consumables: Wide selection of front end consumables available
• Operator appeal: Oval handle shape reduces operator fatigue

Applications

• Artistic Metal Working
• Shop Jobs
• Garage
• Maintenance And Repair Applications
• Farm
• Production
• Hobby/DIY

• Amperage: 400 A
• Cable Length: 15 ft
• Cooling Method: Air Cooled
• Wire Size: 0.035 - 0.045 in
• Wire Type: Solid, Flux Cored Gas Shielded, Flux Cored Self-Shielded, Aluminum
• Connector Style: Miller Style Connector
• Physical Size: 14.4 x 23.3 x 3.5 in
• Country of Origin: Mexico
