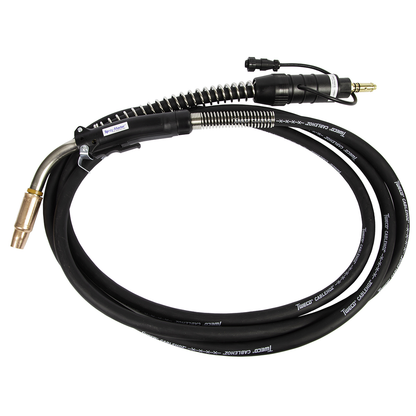

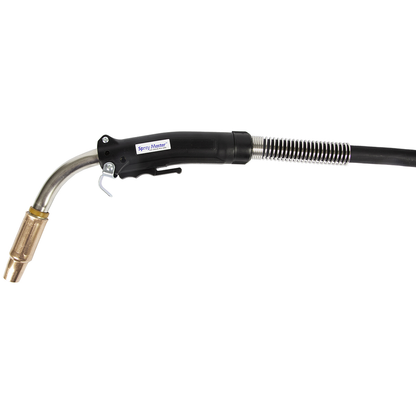

Tweco, 10401052, MIG Gun, 450 A, 15 ft Cable, Air Cooled, .045" - 1/16" Wire Size, Tweco Style Connector

Tweco® Spray Master® Series 450 A MIG Gun with heavy-duty contact tip accommodates wires of size 0.045 - 1/16" and has ergonomic handle design that reduces welders fatigue. Air-cooled MIG gun is ideal for spray as well as pulse welding applications and features simplified direct rear plug for easy installation. 15' Power cable offers good wire feedability and features Tweco® style rear connection. MIG gun offers 80% duty cycle with argon/CO2 gases and has capacity to deliver under pressure. It is easy to repair and requires less maintenance. It features a diffuser for enhanced performance in high heat applications.

Features

• Standard gun configurations options: Standard trigger on/off operation
• Field repairable mechanical cable connections for Cablehoz® spare trigger leads in Cablehoz®
• Field repairable: Split-half handle case provides access for ease of repair
• Thick-walled, three-layer conductor tube for higher electrical conductivity, act as heat sink and durable
• Optional dual schedule and locking trigger
• Balanced to pivot at the center of the handle for ease of use in different welding positions, reduces operator fatigue
• Wide welding applications: Spray transfer mode and pulse welding straight co2 or mixed gases
• Extended trigger length to keep hand away from the arc to reduce radiated heat
• Front and rear spring strain relief and cable support
• Rated at 80% duty cycle using mixed gases
• Lower inventory carrying costs: Interchangeable front end consumables between Tweco® classic no. Series and Tweco® spray master series
• Compact, ergonomic handle design
• Heavy-duty contact tip and diffuser for improved performance in high heat applications
• Lower heat in the handle and conductor tube: Heavy wall conductor tube and front Cablehoz® connection (crimped) for improved electrical conductivity and lower heat in the front end
• Steel spring strain relief provides support to the Cablehoz® coming out the rear of the handle to minimize wire feed issues
• Durable metal jacketed conductor tube
• Optional mechanical locking trigger - Identified with "LC" Part No. suffix
• Heavy-duty thick-walled contact tip and diffuser increases tip life and decreases downtime with tip changes
• Patented, extended life consumables

Applications

• Hobby/DIY
• Garage
• Farm
• Production
• Shop Jobs
• Maintenance And Repair Applications
• Artistic Metal Working

Accessories

• Miller Rear Connector 2035-2111
• Cablehoz Reat Mechanical Connector Replacement Kit 2060-2135
• Dual Schedule Rocker Switch 2060-2694
• Miller Control Wire * Plug 2030-2075
• Miller Dual Schedule Contral Wire & Plug 2040-2195
• Cablehoz Assembly - 25 ft 1740-2118
• Tigger Blade Assembly 2060-2671
• Cablehoz Assembly - 15 ft 1740-2117
• Euro-Kwik Nut 2040-2177
• Handle Locking Triffer 2060-2127
• Tweco Control Wire 2060-2139
• Tweco Rear Connector 2035-2110
• Tweco Dual Schedule Control Wire & Plug 2060-2138
• Cablehoz Rear Euro-Style Mechanical Connector Replacement Kit 2040-2181
• Euro-Kwik Connector Case 2060-2006
• Cablehoz Front Mechanical Connector Replacement Kit 2060-2133
• Tigger-Locking 2060-2693
• Lincoln Rear Connect 2035-2112
• Spray Master Handle 2060-2130
• Handle Dual Schedule (Rocker Switch) 2060-2128
• Euro-Kwik Connection Assembly 2040-2276
• Cablehoz Assembly Euro-Kwik 12 ft 1740-2122
• Cablehoz Assembly - 12 ft 1740-2116
• Cablehoz Assembly Euro-Kwik 12 ft 1740-2123
• Lincoln Control Wire & Plug 2060-2137
• Trigger- Standard & Dual Schedule 2060-2647

• Amperage: 450 A
• Cable Length: 15 ft
• Cooling Method: Air Cooled
• Wire Size: 0.045" - 1/16"
• Duty Cycle: 80%
• Welding Type: Spray, Pulse
• Connector Style: Tweco Style Connector
• Physical Size: 14.3 x 23.3 x 3.3 in
• Material: Heavy-duty contact tip
• Wire Type: Solid, Flux Cored Gas Shielded, Flux Cored Self-Shielded, Aluminum
• Process: MIG (GMAW)
• Country of Origin: Mexico
• Trade Name: Tweco | Spray Master
• MIG Gun Model: Spray Master
