Miller Electric, HBA-30510LP, Heavy Duty Torch Outfit, Propane, Cuts up to 8 in, Includes Hose and Heating Tip

Complete oxy-fuel system that can handle high gas flow for faster cutting, heating, brazing and welding. The SC200 cutting attachment can cut up to 8-inch thick steel with the appropriate tip.

Features

• Cuts up to 8-inch (203 mm) thick steel.
• No wrench is needed allowing for quick and easy tip changes.
• For easy 360-degree torch head rotation to reduce operator fatigue.
• Protects regulator from damage due to inadvertent high-pressure surge. Relief valve will release excessive pressure and automatically reset.
• The forged brass bonnet body is nickel-plated to protects against corrosion.
• The SW200 series is for general and heavy welding and brazing with acetylene gas. Swaged construction provides greater heat concentration for improved “puddle” control. . SW205 can weld up to 1/8 in. (3mm) thick metal.
• The large regulator gauges are easy to read and are constructed from shatter-resistant polycarbonate lenses.
• Usage for both left and right-handed operators.
• Deflects heat and resists corrosion.
• Resists corrosion for extended service life.
• Connections are easily replaced if damaged reducing maintenance costs.
• Eliminates seat burn out due to reverse flow of mixed gases.
• Tube-within-a-tube design provides strength while reducing weight.
• Allows for smooth adjustment and positive seating to eliminate leaks.
• Will not come loose from the valve stem.
• Two-piece medium preheat cutting tips for general hand and machine cutting with propane, propane-based fuel gases and natural gas. SC40-1 can cut from 1/2 in. (13mm) to 5/8 in. (16mm) thick metal.
• Protects the tip seat from nicking for longer use.
• Protects high-pressure regulator seat from debris for reliable operation and long service life.
• PTFE packing provides a gas-tight seal while allowing the "drag" to be adjusted to the individual preference.
• Protects against corrosion.
• Threads are protected from damage if torch is dropped.
• Provides strength, leak resistance and heat deflection.
• Keeps gases separate in the cutting attachment until mixed at the tip for safety. Mixed gas stays farthest away from the operator.
• For extra protection, strength and leak resistance.

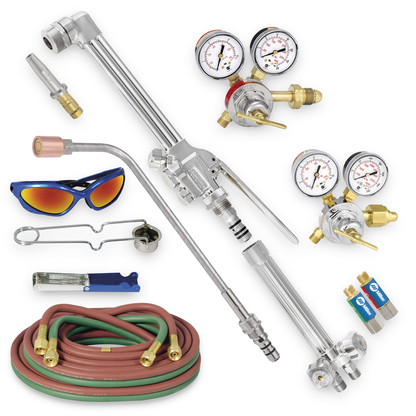

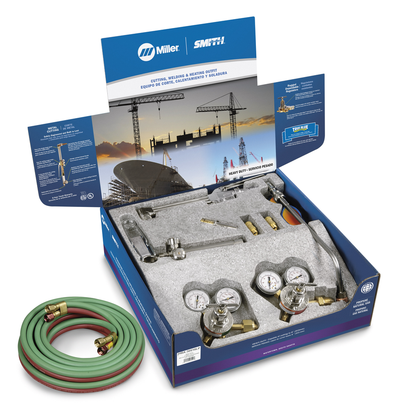

Includes

• Regulator Mount Check Valves (H698)
• Operations Manual
• Torch Handle (WH200A)
• Friction Lighter (N113ANB)
• Cutting Tip (SC40-1)
• Safety Glasses (78000)
• 20-ft 1/4" Twin Hose (TRL1131)
• Cutting Attachment (SC209)
• Oxygen Regulator(30-100-540)
• Heating Tip (ST615)
• Tip cleaner (N250)
• LPG Regulator (30-50-510)

• Fuel Gas: Propane
• Heating BTU: 244000 BTU
• Cutting Thickness Capacity: up to 8 in (203 mm) steel
• Cutting Tip Thickness Range: 0.5 in to 0.625 in (13 mm to 16 mm)
• Material: Nickel-plated Brass
• Regulator Type: LPG and Oxygen regulators
• Cutting Attachment Model: SC200
• Tip Number: SC40-1, SC209, ST615
• Heat Tip: True
• Hose: True
• Country of Origin: United States
