Miller Electric, HBA-30510, Oxy-Fuel Torch Outfit, Acetylene, SC200 Cutting Attachment, Cuts up to 8 in, 25 ft Twin Hose

Complete oxy-fuel system that can handle high gas flow for faster cutting, heating, brazing and welding. The SC200 cutting attachment can cut up to 8-inch thick steel with the appropriate tip.

Features

• Threads are protected from damage if torch is dropped.
• Connections are easily replaced if damaged reducing maintenance costs.
• Usage for both left and right-handed operators.
• Preheat cutting tips for general hand and machine cutting with acetylene gas. This series provides excellent preheat characteristics required for machine cutting. SC12-1 can cut from 1/2 in. (13mm) to 5/8 in. (16mm) thick metal.
• Protects against corrosion.
• The large regulator gauges are easy to read and are constructed from shatter-resistant polycarbonate lenses.
• Allows for smooth adjustment and positive seating to eliminate leaks.
• The SW200 series is for general and heavy welding and brazing with acetylene gas. Swaged construction provides greater heat concentration for improved “puddle” control. . SW205 can weld up to 1/8 in. (3mm) thick metal.
• PTFE packing provides a gas-tight seal while allowing the "drag" to be adjusted to the individual preference.
• Keeps gases separate in the cutting attachment until mixed at the tip for safety. Mixed gas stays farthest away from the operator.
• Protects regulator from damage due to inadvertent high-pressure surge. Relief valve will release excessive pressure and automatically reset.
• Deflects heat and resists corrosion.
• Cuts up to 8-inch (203 mm) thick steel.
• Provides strength, leak resistance and heat deflection.
• Tube-within-a-tube design provides strength while reducing weight.
• For extra protection, strength and leak resistance.
• The forged brass bonnet body is nickel-plated to protects against corrosion.
• Eliminates seat burn out due to reverse flow of mixed gases.
• Protects high-pressure regulator seat from debris for reliable operation and long service life.
• Resists corrosion for extended service life.
• Protects the tip seat from nicking for longer use.
• No wrench is needed allowing for quick and easy tip changes.
• Will not come loose from the valve stem.
• For easy 360-degree torch head rotation to reduce operator fatigue.

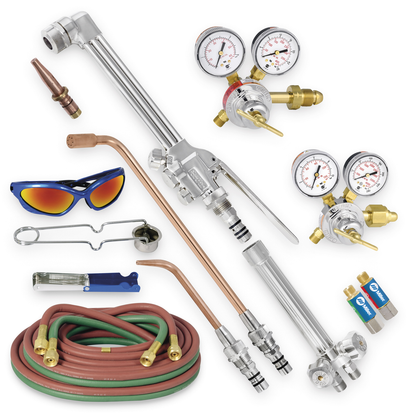

Includes

• Cutting Tip (SC12-1)
• Oxygen Regulator(30-100-540)
• 25-ft 1/4" Twin Hose (RL1131)
• Cutting Attachment (SC209)
• Torch Handle (WH200A)
• Acetylene Regulator (30-15-510)
• Welding Tip (SW205)
• Friction Lighter (16571)
• Safety Glasses (78000)
• Tip cleaner (16570)
• Operations Manual
• Heating Tip (ST602)
• Torch Mount Flashback Arrestors (H743)

• Cutting Thickness Capacity: 8 in
• Cutting Tip Model: SC12-1
• Cutting Tip Thickness Range: 0.5-0.625 in
• Welding Thickness Capacity: 0.125 in
• Welding Tip Model: SW205
• Heating BTU: 40000
• Heating Tip Model: ST602
• Oxygen Regulator Model: 30-100-540
• Acetylene Regulator Model: 30-15-510
• Torch Handle Model: WH200A
• Cutting Attachment Model: SC209
• Flashback Arrestors Model: H743
• Fuel Gas: Acetylene
• Hose: True
• Weld Tip: True
• Heat Tip: True
• Accessories: True
• Material: Nickel-Plated Brass
• Country of Origin: United States
