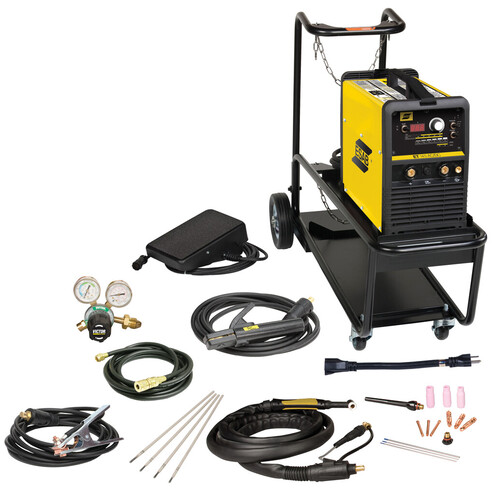

ESAB, W1006314, TIG/Stick Welder Package, 120 V, 140 A, 13 ft Cable, Includes Foot Control, Utility Cart

The ET 141i AC/DC is a complete, multi-process TIG and Stick system ideal for applications where power is limited to 120 VAC. Lightweight and reduced in size for versatility and portability. Fully featured professional performance capability with preset controls for ease of use in DIY applications. HF Arc Start provides non-contact arc starting that eliminates tungsten or material contamination.

Features

• Hot Start ensures good arc starting when Stick welding
• Preflow and postflow preset controls shielding gas before and after the weld
• Lift TIG Start provides optimized TIG arc starting without the use of high frequency
• AC/DC TIG mode selection for aluminum and ferrous alloys, stainless and mild steel, and chrome molys
• AC Frequency preset sets the frequency of the AC square wave and Wave Balance sets the penetration to cleaning ratio when welding on aluminum

Applications

• Light Fabrication
• Transportation
• Hobbyist
• Automotive
• Repair and Maintenance

• Voltage: 120 VAC
• Current Range: 10 - 140 A
• Maximum Output: 140 A
• Duty Cycle: 60% @ 75 A
• Processes: Stick (SMAW), TIG DC (GTAW)
• Frequency: 50/60 Hz
• Phase: Single Phase
• Cable Length: 13 ft
• Dimensions: 18.75 x 22.25 x 21.1 in
• Weight: 22 kg (48.4 lbs)
• Torch Model: 17 Style
• Country of Origin: China
• Compliance: CSA E60974-1, UL 60974-1, IEC 60974-1
