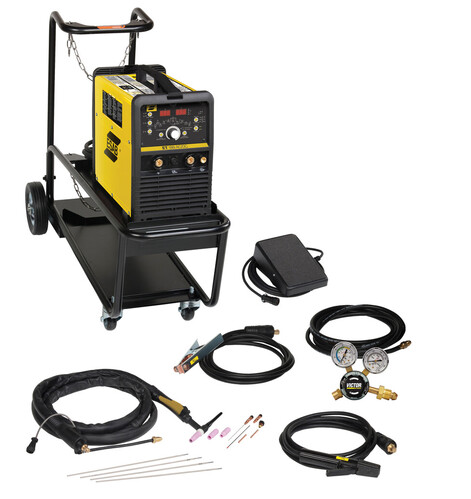

ESAB, W1006304, TIG/Stick Welder, 200 A Max, 10-200 A Amp Range, 208/230 V Input, Includes Foot Control, Basic Utility Cart

The ET 186i AC/DC is a complete, multi-process TIG and Stick welding system. Lightweight and reduced in size for versatility and portability. Fully featured professional performance capability with variable controls for ease of use in a variety applications. HF Arc Start provides non-contact arc starting that eliminates tungsten or material contamination.

Accessories

• Gas Hose, 12.5 ft (3.8 m), Male 5/8-18UNF W4013900
• Foot Control, 15 ft (4.6 m) cable and 8-pin Male Plug W4013200
• TIG Torch and Accessories (required for TIG welding) W4013600
• Victor Argon Flow Gauge Regulator GF-250-50-580 0781-9411
• Electrode Holder 200A and Lead Assembly, 13 ft (4 m), 25 mm 9110-1177
• Ground Clamp 200 A and Lead Assembly, 10 ft (3 m), 25 mm 9255-1140
• Basic Utility Cart, max 7 in. (177.8 mm) diameter cylinder W4014700

Features

• AC and DC output for aluminum and non-ferrous alloys, stainless, mild steel and chrome molys
• Pulse: changes the weld current from high to low at a specified frequency, reduces heat input on thin material (0.5 Hz - 200 Hz)
• AC Frequency: adjustable frequency of the AC square wave when welding on aluminum for optimized set up (15 Hz - 150 Hz)
• HF Arc Start: provides non-contact arc starting that eliminates tungsten or material contamination
• Wave Balance: adjustable for optimized penetration or cleaning action when welding on aluminum

Applications

• Automotive
• Transportation
• Light Fabrication
• Repair and Maintenance

• Output Amperage: 200 A
• Amperage Range: 10 - 200 A
• Input Voltage: 208/230 V
• Frequency: 50/60 Hz
• Duty Cycle: 60% @ 116 A
• Process: Stick (SMAW), TIG DC (GTAW)
• Phase: Single Phase
• Weight: 22 kg (48.4 lbs)
• Dimensions: 475 x 240 x 400 mm (18.7 x 9.5 x 15.8 in.)
• Lead Cord Length: 3 m (10 ft)
• Foot Control Cable Length: 4.6 m (15 ft)
• TIG Torch Lead Length: 3.8 m (12.5 ft)
• Electrode Holder Lead Length: 4 m (13 ft)
• Gas Hose Length: 3.8 m (12.5 ft)
• Torch Model: 26 TIG Torch
• Nominal Open Circuit Voltage: 70.3 VDC/50 VAC
• Rated kVA: 9.5 kVA @ 200 A
• Maximum Input Current: 35.6 A
• Material Compatibility: Aluminum, non-ferrous alloys, stainless steel, mild steel, chrome molybdenum
• Welding Processes: TIG, Stick
• AC/DC Output: Yes
• HF Arc Start: Non-contact arc starting
• Wave Balance: Adjustable for optimized penetration or cleaning action
• Protection Class: IP23S
• Duty Cycle TIG: 20% @ 200 A; 60% @ 116 A; 100% @ 90 A
• Duty Cycle Stick: 15% @ 170 A; 60% @ 100 A; 100% @ 80 A
• Pulse Frequency: 0.5 - 200 Hz
• AC Frequency: 15 - 150 Hz
• Country of Origin: China
• Approvals: IEC 60974-1, CSA E60974-1, UL 60974-1
