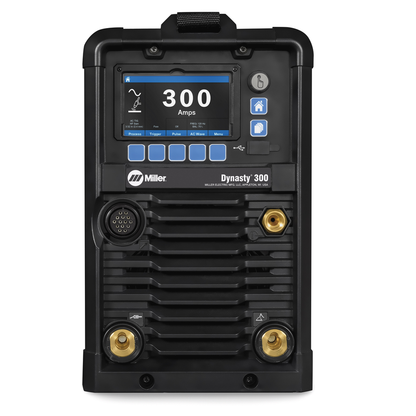

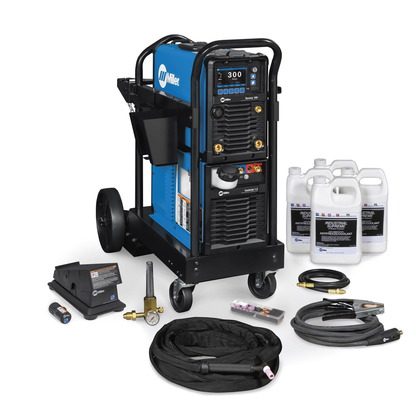

Miller Electric Dynasty 300 208-600 V, Wireless Foot Control Complete - 951937

The Dynasty 300 Series is a powerful combination of capability and portability. Weighing only 55 pounds, it can weld up to 3/8 in. thick material. The AC/DC TIG/Stick power sources feature an energy-efficient inverter design and Auto-Line™ technology.

Features

• Locks and Limits: Provides control of the weld parameter ranges minimizing deviations from the welding procedure specifications (WPS).
• AC Frequency Control: Control the width of the arc cone and can improve directional control of the arc with adjustments between 50-150 Hertz.
• Pro-Set™ Feature: This feature eliminates the guesswork when setting weld parameters. Use Pro-Set when you want the speed, convenience and confidence of pre-set controls. Simply select the feature and adjust until Pro-Set appears on the display. The Pro-Set feature is available for Balance, Frequency, Pulse and DIG parameters.
• QuietPulse™: QuietPulse is activated by changing the waveshape for DC pulse welding, creating a slower, more fluid transition between the background and peak amperage to create the least possible audible noise.
• USB Port: Provides the ability to easily update software, back-up settings and transfer saved weld programs from one unit to the next.
• Auto-Line™ Technology: Allows hookup to either single-phase or three-phase primary input voltage, 208-600 volts dependent on the machine, with no manual linking, providing convenience in any job setting. An ideal solution for dirty or unreliable input power.
• Intuitive Interface LCD Display: Ensure proper machine setup and parameter selection with informative on-screen explanations and dynamic images.
• Program Memory: Allows easy naming, saving and recalling up to 99 custom weld programs.
• Stick Features: Tailored arc control (DIG) allows the arc characteristics to be changed for specific applications and electrodes. Smooth running 7018 or stiffer, more penetrating 6010. Hot Start™ adaptive control provides positive arc starts without sticking.

• Input Voltage: 208 V; 220/230/240 V; 380/400 V; 460/480 V; 575/600 V
• Amperage Range: 1 A - 300 A
• Rated Output: 250 A at 20 V, 60% duty cycle
• Max Open Circuit Voltage: 60 VDC
• Current Type: AC / DC
• Input Phase: Single-phase or three-phase
• Input Hz: 50/60 Hz
• Material Thickness Capacity: Aluminum 0.012 in. (0.3 mm) - 3/8 in. (9.5 mm); Steel 0.004 in. (0.1 mm) - 3/8 in. (9.5 mm)
• Weld Output: CC
• Weldable Metals: Aluminum; Specialty Metals; Stainless Steel; Steel
• Weight: 240 lb
• Dimensions: 39.5 in (L) x 8.5 in (W) x 35 in (H)
• Stick Electrode Range: 5-300 A
• Stick Electrode Maximum Diameter: 7/32 in (5.6 mm)
• Operating Temperature Range: 14 to 104 F (-10 to 40 C)
• Storage Temperature Range: -22 to 149 F (-30 to 65 C)
• IP Rating: IP23
• AC Frequency Control Range: 50-150 Hz
• Pulse Frequency Range: 0.1-500 pps
• Pulse Peak Time: 5-95%
• Pulse Background Amperage: 5-95%
• AC Waveforms: Advanced Square, Soft Square, Sine, Triangular
• DC Pulse Waveforms: Square, Sine, Triangular
• Balance Control Range: 30-99% EN
• AC Frequency Control: 20-400 Hz
• Generator Requirement: 12.5 kW
• Max Tungsten Size: .020, .040, 1/16, 3/32, 1/8 in (.05, 1.0, 1.6, 2.4, 3.2 mm)
• Series: Dynasty
• Country of Origin: United States
• Metal Type: Aluminum; Stainless Steel; Steel
