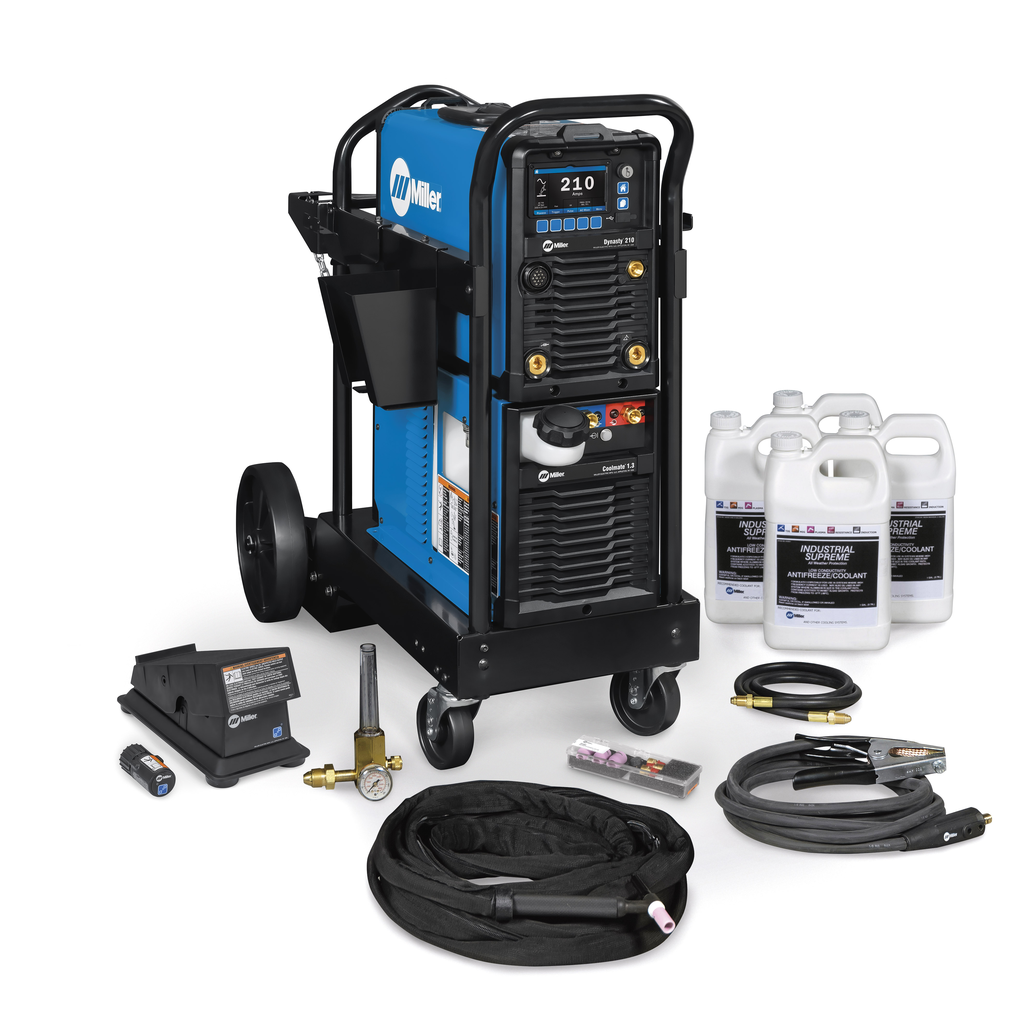

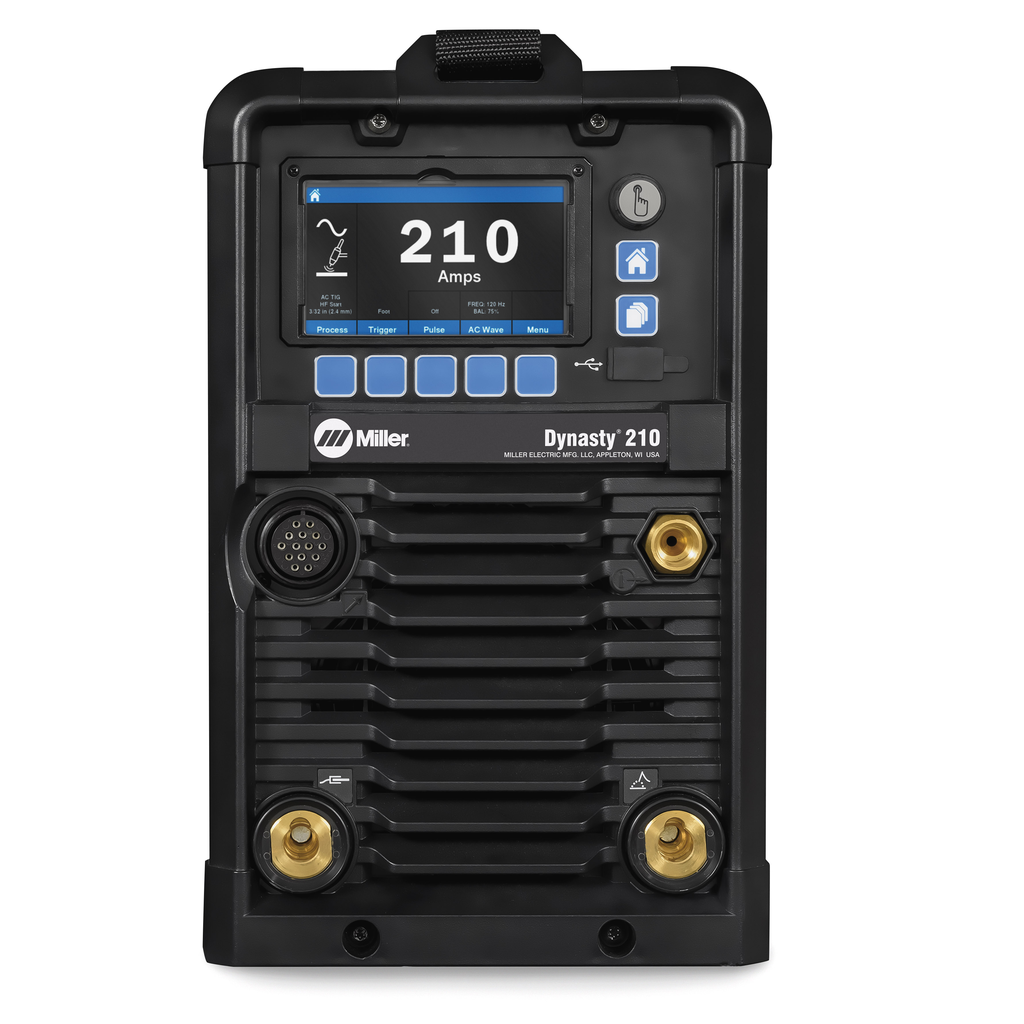

Miller Electric Dynasty 210 120-480 V, Wireless Foot Control Complete - 951936

The Dynasty 210 Series combines inverter technology and advanced features. Weighing only 47 pounds, it can weld up to 1/4 in. thick material and offers the most flexible AC/DC TIG/Stick power supply in the welding industry.

Features

• Intuitive Interface LCD Display: Ensure proper machine setup and parameter selection with informative on-screen explanations and dynamic images.
• Locks and Limits: Provides control of the weld parameter ranges minimizing deviations from the welding procedure specifications (WPS).
• QuietPulse™: QuietPulse is activated by changing the waveshape for DC pulse welding, creating a slower, more fluid transition between the background and peak amperage to create the least possible audible noise.
• Auto-Line™ Technology: Allows hookup to either single-phase or three-phase primary input voltage, 208-600 volts dependent on the machine, with no manual linking, providing convenience in any job setting. An ideal solution for dirty or unreliable input power.
• Pro-Set™ Feature: This feature eliminates the guesswork when setting weld parameters. Use Pro-Set when you want the speed, convenience and confidence of pre-set controls. Simply select the feature and adjust until Pro-Set appears on the display. The Pro-Set feature is available for Balance, Frequency, Pulse and DIG parameters.
• USB Port: Provides the ability to easily update software, back-up settings and transfer saved weld programs from one unit to the next.
• Stick Features: Tailored arc control (DIG) allows the arc characteristics to be changed for specific applications and electrodes. Smooth running 7018 or stiffer, more penetrating 6010. Hot Start™ adaptive control provides positive arc starts without sticking.
• Program Memory: Allows easy naming, saving and recalling up to 99 custom weld programs.
• AC Frequency Control: Control the width of the arc cone and can improve directional control of the arc with adjustments between 50-150 Hertz.

• Input Voltage: 110-120 V; 208 V; 220-240 V; 380-400 V; 460-480 V
• Max Open Circuit Voltage: 80 VDC
• Amperage Range: 1-210 A
• Current Type: AC / DC
• Input Phase: Single-phase or three-phase
• Input Frequency: 50/60 Hz (50-150 Hz AC Frequency Control)
• Duty Cycle TIG: 210 A at 60%
• Duty Cycle Stick: 160 A at 60%
• Material Thickness Range: Aluminum 0.012 in. (0.3 mm) - 1/4 in. (6.4 mm); Steel 0.002 in. (0.05 mm) - 1/4 in. (6.4 mm)
• Weight: 47 lb (21.3 kg)
• Dimensions: 13.88 in H x 8.5 in W x 21.88 in D
• Material: Aluminum; Mild Steel; Most Metals; Stainless Steel; Steel
• Weld Output: CC
• Weldable Metals: Aluminum; Specialty Metals; Stainless Steel; Steel
• Series: Dynasty
• Country of Origin: United States
