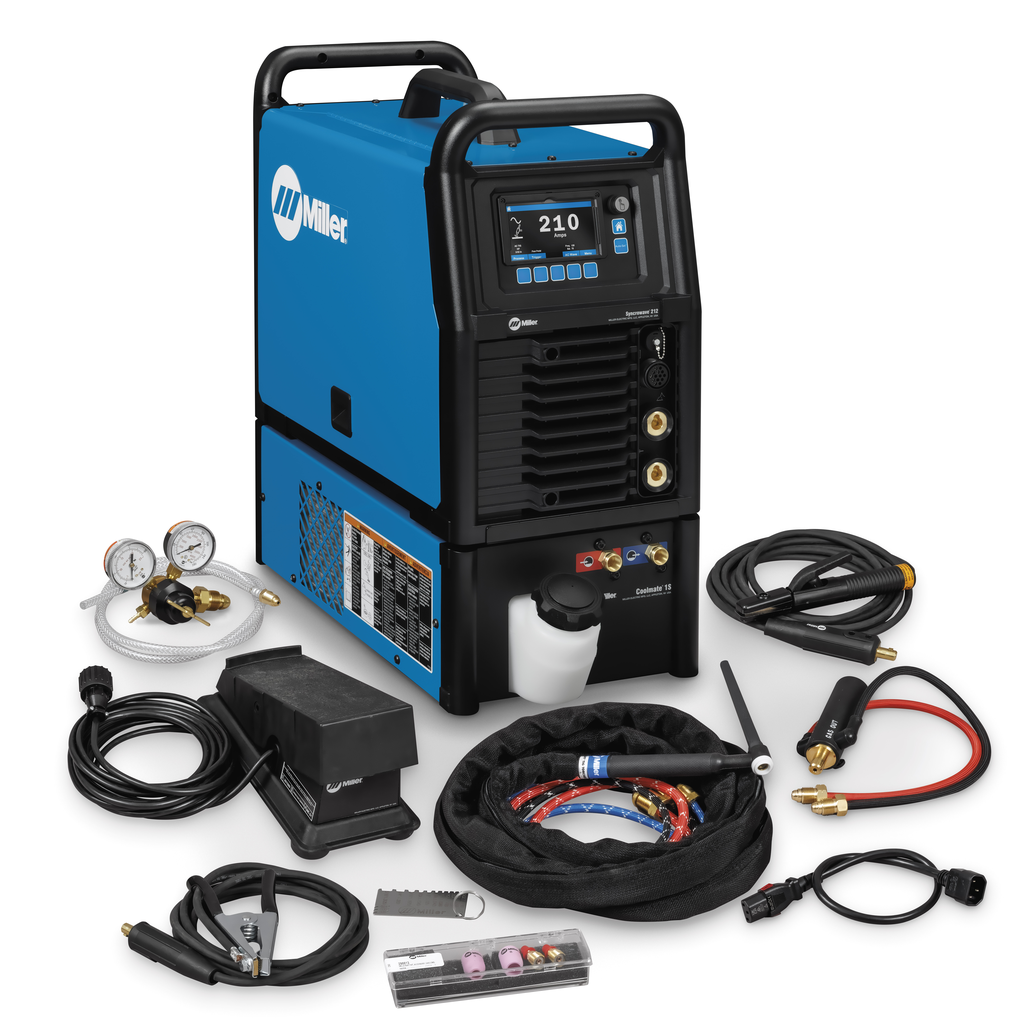

Miller Electric Syncrowave 212, Water-Cooled Package - 951000201

The Syncrowave® 212 is a feature rich TIG power source that gives you the premium arc you expect from Miller. The confidence inspiring LCD display with Auto-Set helps you dial in weld parameters and it’s versatile design provides seamless integration with an optional water cooler or spool gun.

Features

• Easy-to-Use: 1. Turn power on. 2. Select Process: AC TIG, DC TIG, DC Stick or MIG Spool Gun. 3. Set amperage or voltage based on material thickness. Then weld! It’s as easy as 1, 2, 3.
• 14-Pin Controlled Operator Alternatives: The standard 14-pin connector lets you choose your control for a customized experience, whether it’s a foot control, fingertip control, or wireless foot control.
• Pro-Set™ Feature: This feature eliminates the guesswork when setting weld parameters. Use Pro-Set when you want the speed, convenience and confidence of pre-set controls. Simply select the feature and adjust until Pro-Set appears on the display. The Pro-Set feature is available for Balance, Frequency, Pulse and DIG parameters.
• Auto-Set™ Technology: Offers predefined weld settings to increase ease of use and ensure that the job is done right for operators of all skill levels.

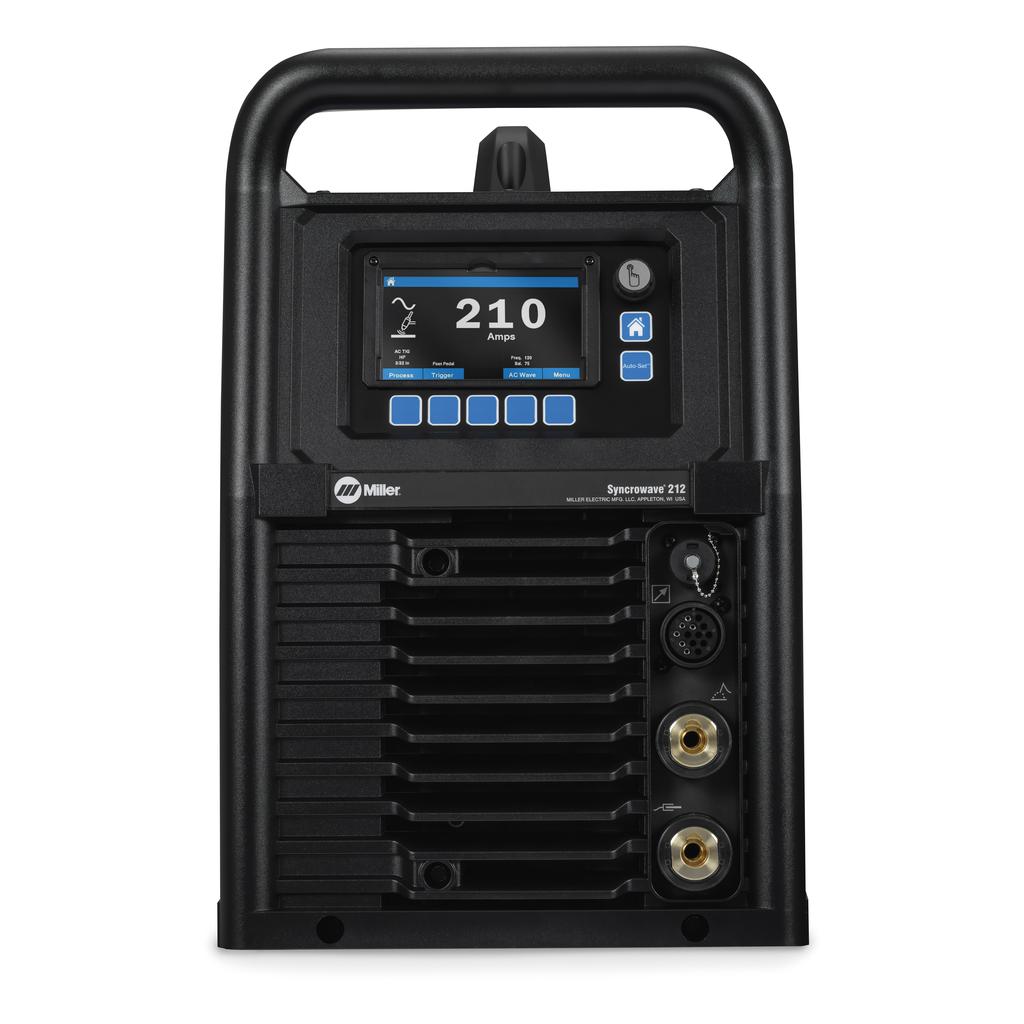

• Intuitive Interface LCD Display: Ensure proper machine setup and parameter selection with informative on-screen explanations and dynamic images.
• Dependable Arc Starts: Provides High-Frequency, non-contact arc starting to eliminate tungsten and material contamination time after time.

• Input Voltage: 120-240 V, 1-Phase, 50/60 Hz
• Current Type: AC / DC
• Amperage Range AC/DC TIG: 20-210 A
• Amperage Range DC Stick: 30-200 A
• Amperage Range MIG: 30-175 A
• Rated Output: 130 A at 15.2 V, 60% duty cycle
• Max Open-Circuit Voltage: 46 V
• Duty Cycle AC/DC TIG: 210 A at 20%, 130 A at 60%, 120 A at 100%
• Duty Cycle DC Stick: 160 A at 20%, 120 A at 60%, 100 A at 100%
• Duty Cycle MIG Spool Gun: 175 A at 20%, 130 A at 60%, 110 A at 100%
• Material Thickness Range: Aluminum 0.020 in. (0.5 mm) - 1/4 in. (6.4 mm); Mild Steel 16 ga. - 3/8 in. (Stick)
• Material Thickness Range AC/DC TIG: 120 V: 20 gauge - 1/8 in, 240 V: 20 gauge - 1/4 in
• Material Thickness Range DC Stick: 120 V: 16 gauge - 3/16 in, 240 V: 16 gauge - 3/8 in
• Material Thickness Range MIG Spool Gun: 120 V: 1/8 in, 240 V: 1/8 - 3/8 in
• Material: Aluminum; Mild Steel; Stainless Steel; Steel
• Weight: 79 lb
• Machine Dimensions: L: 24 in, W: 11.275 in, H: 24.25 in
• Country of Origin: United States
• Series: Syncrowave

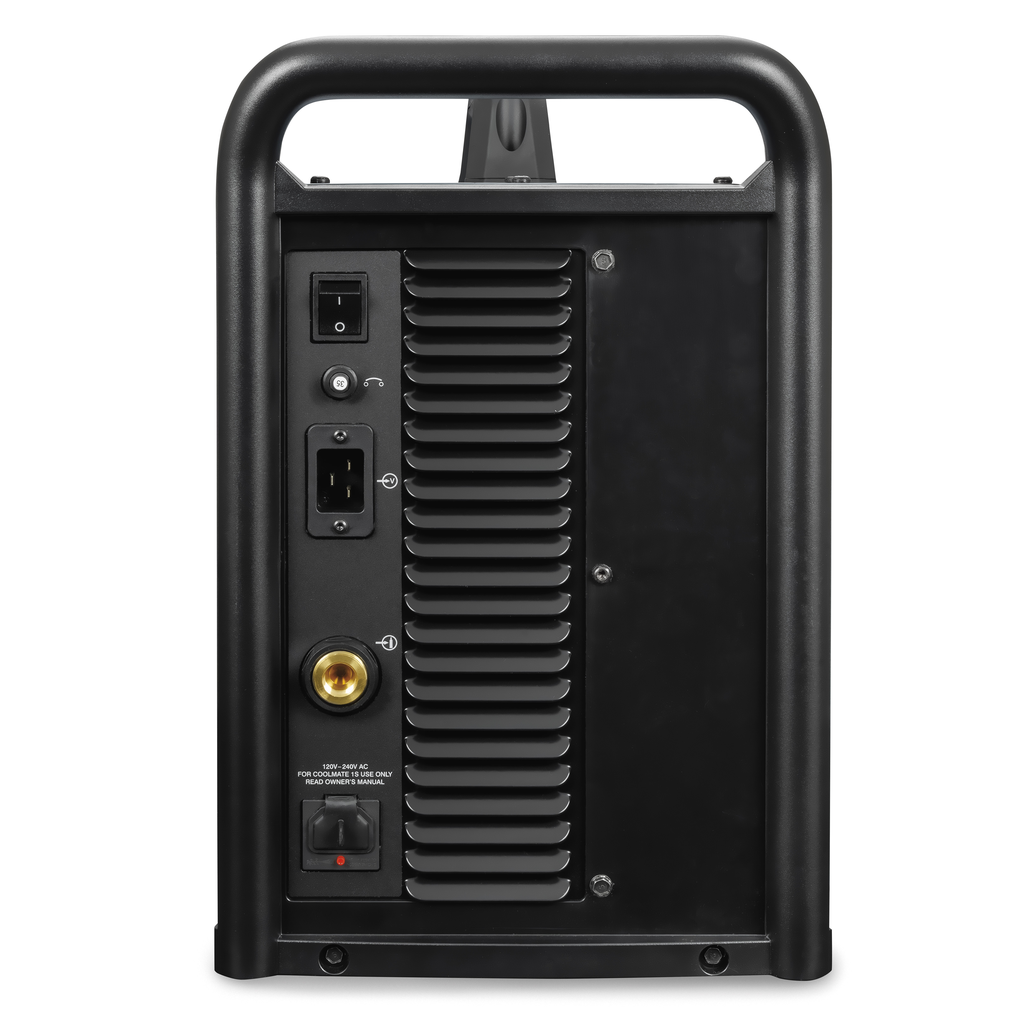

• Cooling Method: Water-cooled
• Cooler Maximum Cooling Capacity: 2,100 W (7,160 Btu/hr)
• Cooler Rated Cooling Capacity: 1,140 W (3,890 Btu/hr)
• Cooler Tank Capacity: 1.0 gal (3.8 L)
• Cooler Net Weight: 25 lb (11 kg)
• Weldcraft W-250 (WP-20) TIG Torch Cooling Method: Water-cooled
• Weldcraft W-250 (WP-20) TIG Torch DC Rating: 250 A, 100% duty cycle
• Electrode Range Weldcraft W-250 (WP-20) TIG Torch: .020 - 1/8 in. (0.5 - 3.2 mm)
