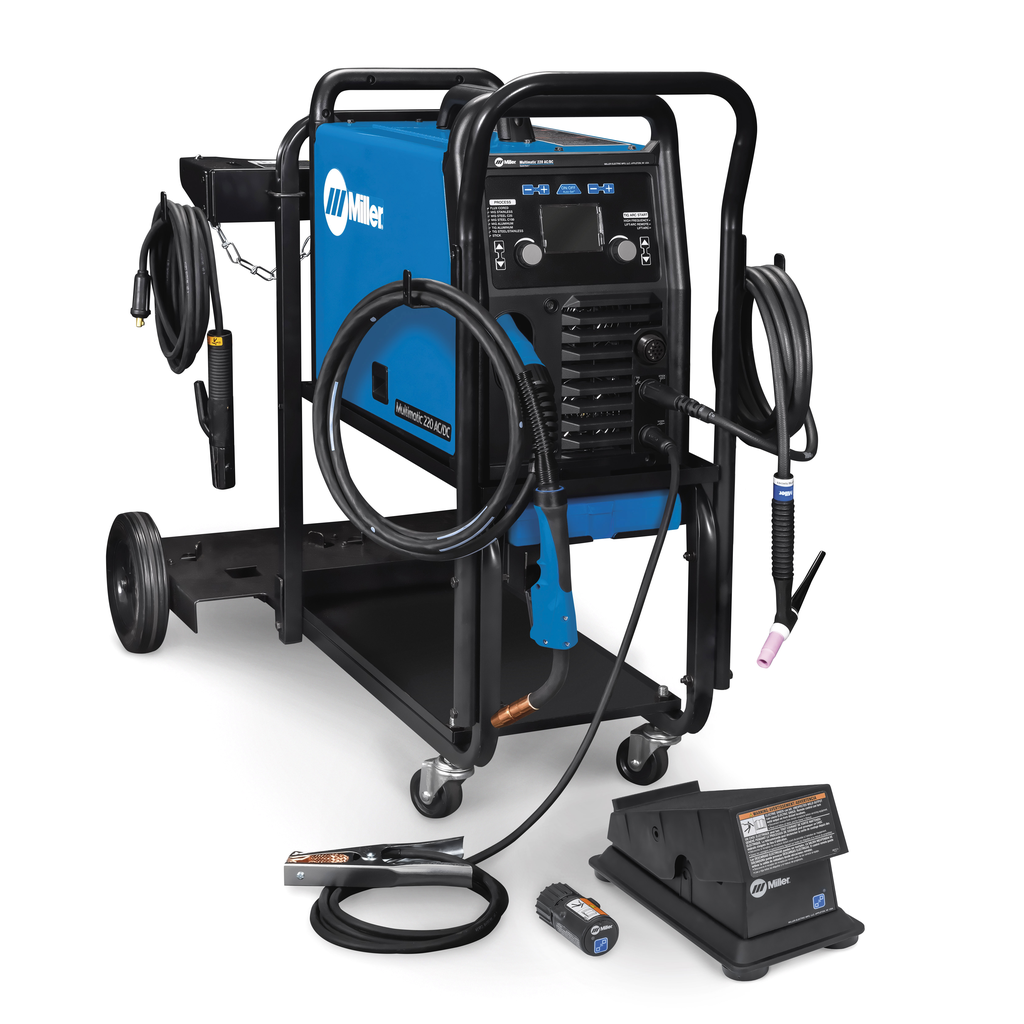

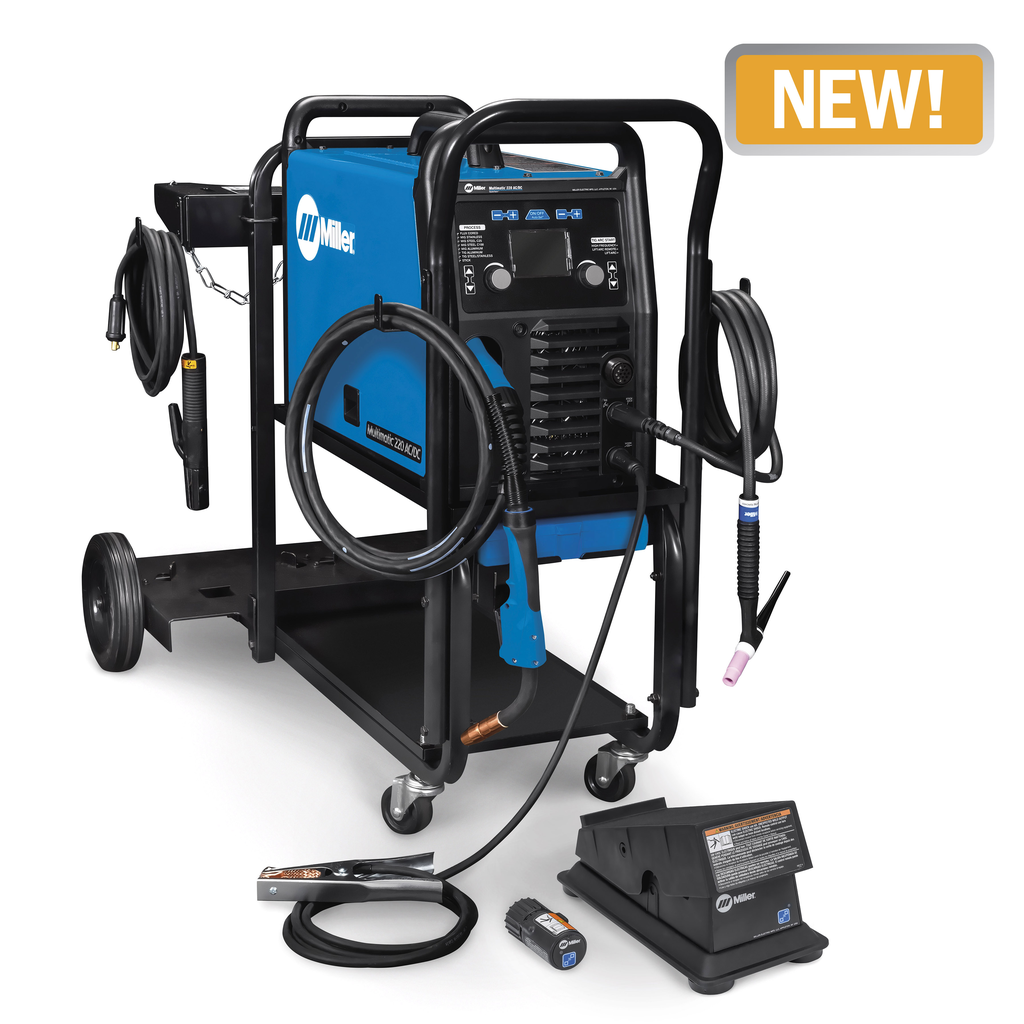

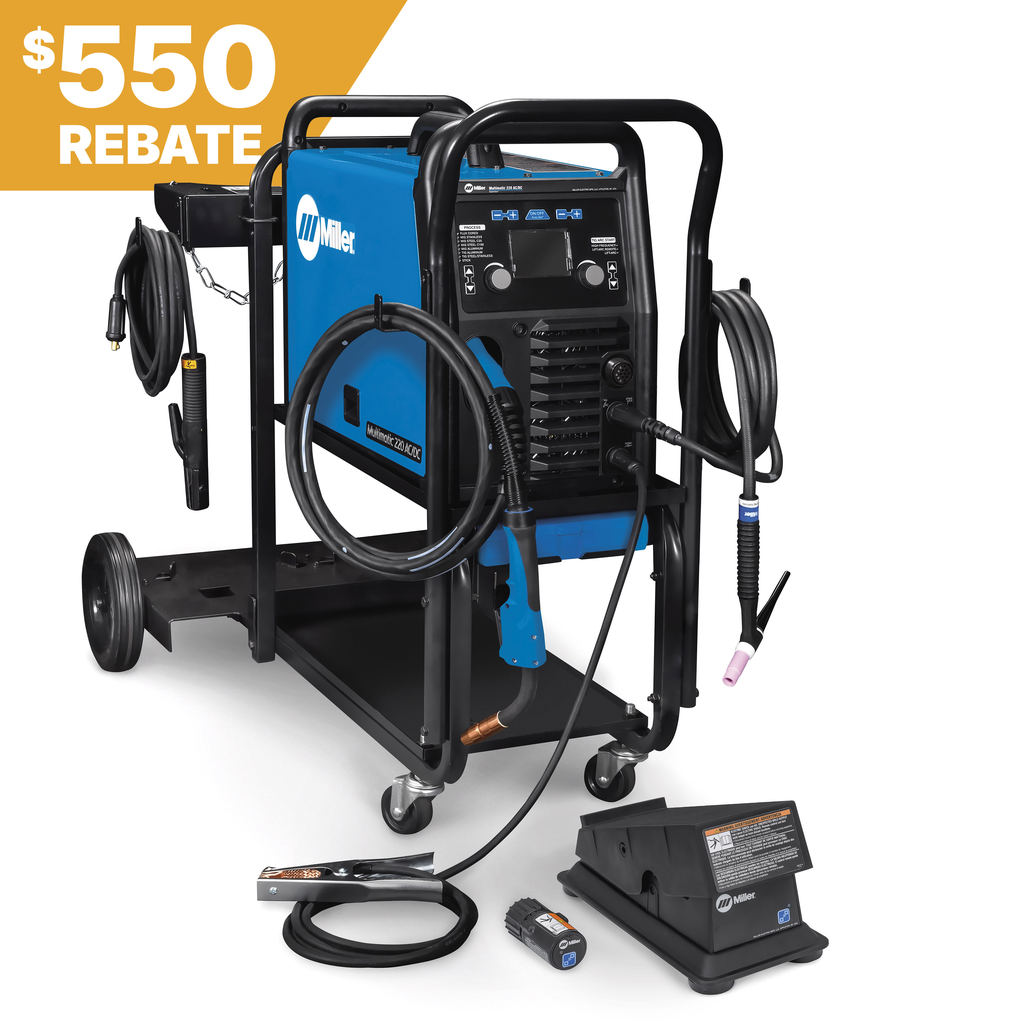

Miller Electric Multimatic 220 AC/DC w/ Dual Cylinder Welding Cart & Wireless Foot Pedal - 951000104

The Multimatic 220 AC/DC is the only machine in its class that offers users the ability to switch welding gas, polarity and welding process automatically while recalling the last MIG or TIG settings.

Includes

• Two contact tips for .030 in (0.8 mm) wire
• Spool of Hobart® .030 in (0.8 mm) solid wire
• 13 ft (4 m) cable electrode holder and 25 mm Dinse-style connector
• Quick Select™ drive roll for .024 in (0.6 mm) or .030/.035 in (0.8/0.9 mm) solid wire, and .030/.035 (0.8/0.9 mm) flux cored wire
• Multimatic® 220 AC/DC
• Wireless Foot Control System (301580)
• 12.5 ft (3.8 m) Weldcraft™ A-150 (WP-17) TIG torch with 25mm Dinse-style connector
• Hook-and-loop cord wraps
• Two Argon and AR/CO2 mix regulator/flow gauge with hoses
• Dual Cylinder Running Gear
• Material thickness gauge #229895
• AK2C TIG torch accessory kit
• 10 ft MDX™-100 MIG Welding Gun
• 6.5 ft (2 m) power cord and MVP™ adapter plugs for 120V and 240V
• 10 ft (3 m) work cable with clamp and 25 mm Dinse-style connector

Does Not Include

• Shielding gas
• Safety Equipment
• Spool gun for aluminum welding

Features

• Allows for connection to 120- or 240-volt receptacles without tools. Choose the plug that fits the receptacle and connect it to the power cord.
• The standard 14-pin connector lets you choose your control for a customized experience, whether it’s a foot control, fingertip control, or wireless foot control.
• The Multimatic 220 will be able to operate and provide full output when powered by generators with 10000 Watt (10K) output or higher, such as a Miller Bobcat or Trailblazer series generator. Limited output will occur when used with smaller generators.
• The Multimatic® 220 AC/DC can go where the work is, plus the added convenience of one machine versus two or more.
• Provides High-Frequency, non-contact arc starting to eliminate tungsten and material contamination time after time.
• Eliminates the guesswork when setting weld parameters. Simply adjust control until Pro-Set™ appears on the display and the number turns blue. Available for AC Balance and Frequency (TIG), DC Pulse (TIG), and DIG (Stick).
• Take on more projects with one machine that has MIG, Stick, AC and DC TIG.
• Automatically determines the polarity. MIG gun and TIG torch can stay connected at the same time. Automatically switches to the right process. Just hit the trigger or the foot control and the machine automatically changes. Automatically recalls the settings from the last process used.
• Superior Stick arc performance even on the difficult-to-run electrodes like E6010.

• Voltage: 120 V, 240 V
• Amperage: 20 A - 230 A
• Frequency: 50/60 Hz
• Input Phase: 1-Phase
• Weld Output: CC/CV
• Welding Processes: MIG, Stick, AC TIG, DC TIG
• Max Open Circuit Voltage: 46 VDC
• Min Wire Feed Speed: 60 IPM (1.5 m/min)
• Max Wire Feed Speed: 600 IPM (15.2 m/min)
• Display Min Thickness Mild Steel: 24 ga.
• Display Max Thickness Mild Steel: 3/8 in.
• Material Thickness Display: Mild Steel 24 ga. - 3/8 in. (MIG), Mild Steel 16 ga. - 3/8 in. (Stick), Mild Steel 24 ga. - 1/4 in. (TIG), Aluminum 24 ga. - 1/4 in. (TIG), Aluminum 18 ga. - 3/8 in. (MIG)
• Spool Size: 8 in.
• Wire Size: .024 in, .030 in, .035 in, 0.8 mm, 0.9 mm
• Drive Roll Wire Size: .024 in, .030 in, .035 in
• TIG Torch Length: 12.5 ft
• Power Cord Length: 6.5 ft
• Work Cable Length: 10 ft
• Cable Length: 13 ft
• Connector Type: 25 mm Dinse-style
• Regulator: Two Argon and Ar/CO2 mix regulator with hoses
• Weldable Metals: Aluminum, Stainless Steel, Steel
• Country of Origin: United States
