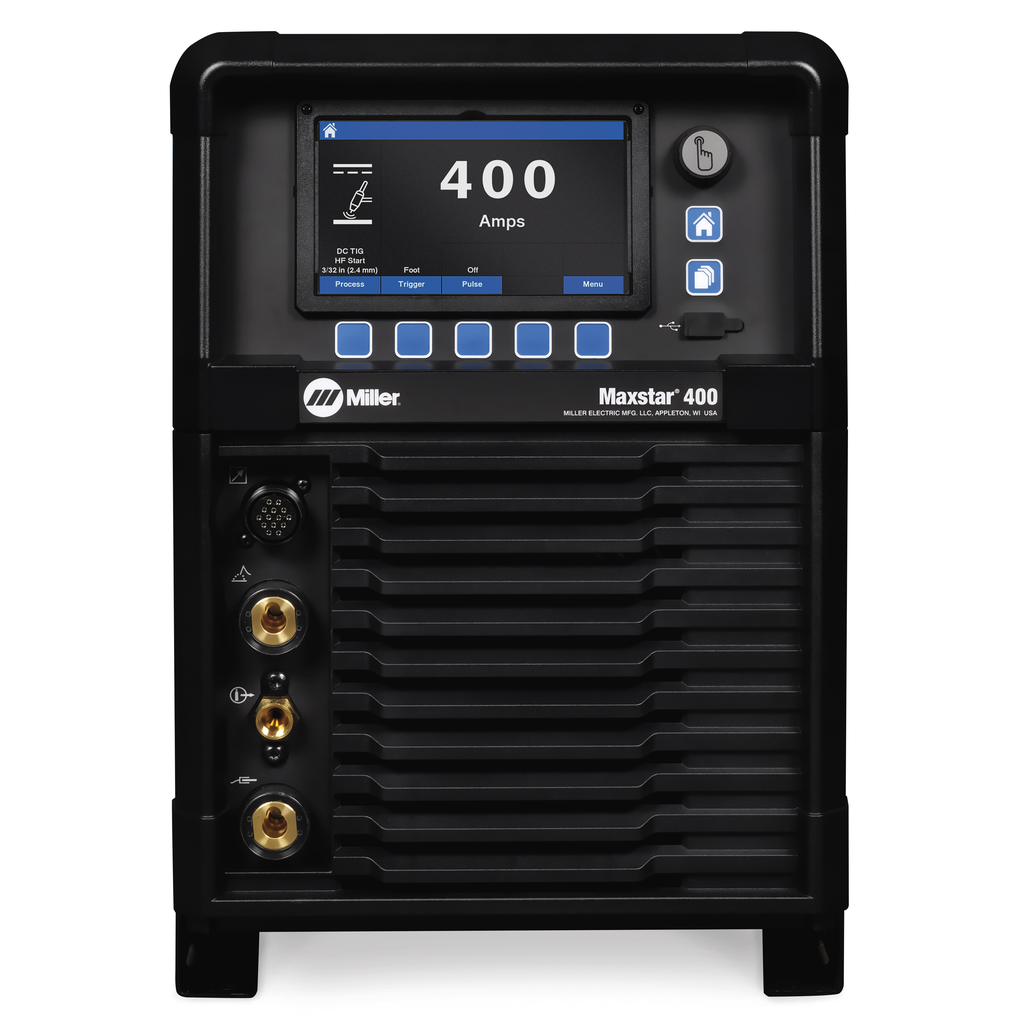

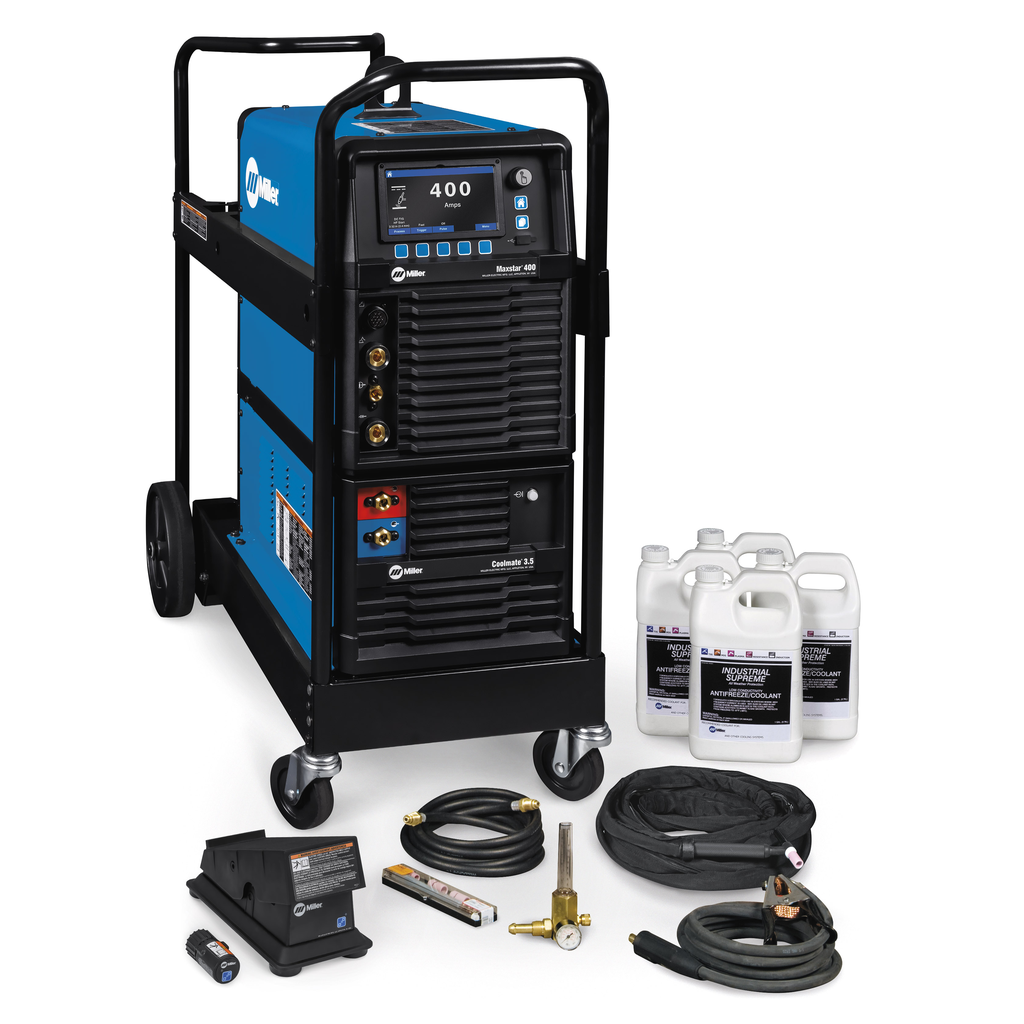

Miller Electric Maxstar 400 Wireless Foot Control Complete - 951000098

The Maxstar 400 Series is a powerful, compact power source capable of welding up to 5/8 in. material. High speed pulse control provides maximum productivity and weld quality while conserving energy compared to traditional welding machines.

Features

• Intuitive Interface LCD Display: Ensure proper machine setup and parameter selection with informative on-screen explanations and dynamic images.
• USB Port: Provides the ability to easily update software, back-up settings and transfer saved weld programs from one unit to the next.
• Blue Lightning™: High-frequency (HF) arc starter for non-contact arc initiation. Provides more consistent arc starts and greater reliability compared to traditional HF arc starters.
• Locks and Limits: Provides control of the weld parameter ranges minimizing deviations from the welding procedure specifications (WPS).
• Stick Features: Tailored arc control (DIG) allows the arc characteristics to be changed for specific applications and electrodes. Smooth running 7018 or stiffer, more penetrating 6010. Hot Start™ adaptive control provides positive arc starts without sticking.
• DC TIG Features: Exceptionally smooth and precise arc for welding exotic materials. High-speed DC TIG pulse controls - Pulse frequency capable of pulsing 5000 pulses per second. Pulsing adds arc stability, reduces heat input and warpage and can increase travel speeds. Other parameters include peak amperage, peak time and background amperage.
• Auto-Line™ Technology: Allows hookup to either single-phase or three-phase primary input voltage, 208-600 volts dependent on the machine, with no manual linking, providing convenience in any job setting. An ideal solution for dirty or unreliable input power.
• Pro-Set™ Feature: This feature eliminates the guesswork when setting weld parameters. Use Pro-Set when you want the speed, convenience and confidence of pre-set controls. Simply select the feature and adjust until Pro-Set appears on the display. The Pro-Set feature is available for Balance, Frequency, Pulse and DIG parameters.
• QuietPulse™: QuietPulse is activated by changing the waveshape for DC pulse welding, creating a slower, more fluid transition between the background and peak amperage to create the least possible audible noise.
• Program Memory: Allows easy naming, saving and recalling up to 99 custom weld programs.

• Amperage Range: 3 A - 400 A
• Rated Output: 300 A at 32 V, 60% duty cycle
• Input Voltage: 208 V;220/230/240 V;380/400 V;460/480 V;575/600 V, 1- and 3-Phase
• Weight: 246 lb
• Dimensions: H: 43.1 in, W: 23.1 in, L: 41.6 in
• Welding Thickness Range: Steel 0.012 in. (0.3 mm) - 5/8 in. (15.9 mm)
• Max Open Circuit Voltage: 75 VDC
• Pulse Frequency: 0.1 5,000 pps
• Pulse Waveforms: Square, Sine, Triangular
• Tungsten Sizes Supported: .020 to 3/16 in (.05 to 4.8 mm)
• Generator Requirement: 20 kVA
• Current Type: DC
• Weld Output: CC
• Metal Type: Mild Steel, Stainless Steel, Steel
• Weldable Metals: Stainless Steel, Steel
• Input Hz: 50/60 Hz
• Series: Maxstar
• Country of Origin: United States
