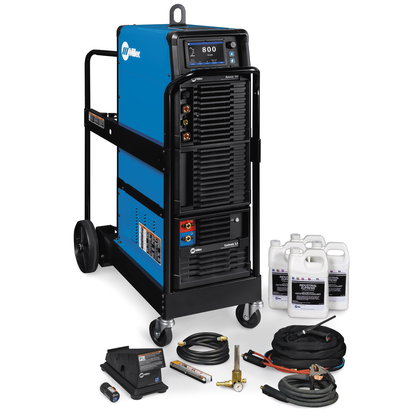

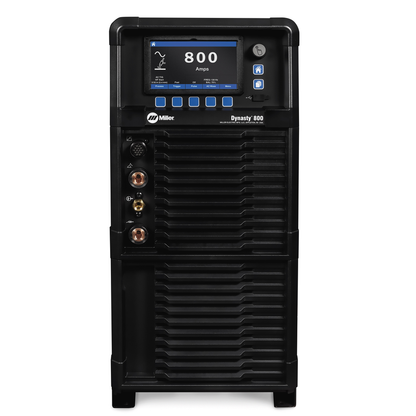

Miller Electric Dynasty 800 208-600 V, Wireless Foot Control Complete - 951000008

The Dynasty 800 Series is a powerful, compact power source capable of welding up to 1 in. aluminum. Total arc control provides maximum productivity and weld quality while conserving energy compared to traditional welding machines.

Features

• Pro-Set™ Feature: This feature eliminates the guesswork when setting weld parameters. Use Pro-Set when you want the speed, convenience and confidence of pre-set controls. Simply select the feature and adjust until Pro-Set appears on the display. The Pro-Set feature is available for Balance, Frequency, Pulse and DIG parameters.
• QuietPulse™: QuietPulse is activated by changing the waveshape for DC pulse welding, creating a slower, more fluid transition between the background and peak amperage to create the least possible audible noise.
• USB Port: Provides the ability to easily update software, back-up settings and transfer saved weld programs from one unit to the next.
• Stick Features: Tailored arc control (DIG) allows the arc characteristics to be changed for specific applications and electrodes. Smooth running 7018 or stiffer, more penetrating 6010. Hot Start™ adaptive control provides positive arc starts without sticking.
• Auto-Line™ Technology: Allows hookup to either single-phase or three-phase primary input voltage, 208-600 volts dependent on the machine, with no manual linking, providing convenience in any job setting. An ideal solution for dirty or unreliable input power.
• AC Frequency Control: Control the width of the arc cone and can improve directional control of the arc with adjustments between 50-150 Hertz.
• Intuitive Interface LCD Display: Ensure proper machine setup and parameter selection with informative on-screen explanations and dynamic images.
• Blue Lightning™: High-frequency (HF) arc starter for non-contact arc initiation. Provides more consistent arc starts and greater reliability compared to traditional HF arc starters.
• Program Memory: Allows easy naming, saving and recalling up to 99 custom weld programs.
• Locks and Limits: Provides control of the weld parameter ranges minimizing deviations from the welding procedure specifications (WPS).

• Amperage Range: 5 A - 800 A
• Input Voltage: 208 V to 600 V
• Max Open Circuit Voltage: 75 VDC
• Input Phase: 1- and 3-Phase
• Current Type: AC / DC
• Material Thickness Range: 0.020 in. (0.5 mm) - 1 in. (25.4 mm)
• Weld Output: CC
• Max Material Thickness: 1 in.
• AC Frequency Control Range: 50-150 Hz
• Pulse Frequency Range DC: 0.1-5000 pps
• Pulse Frequency Range AC: 0.1-500 pps
• Balance Control Range: 30-99% EN
• Pulse Waveshape Options: Square, Sine, Triangular
• AC Waveshape Options: Advanced Square, Soft Square, Sine, Triangular
• Stick Electrode Maximum Diameter: 1/4 in.
• Tungsten Sizes Supported: .020, .040, 1/16, 3/32, 1/8, 5/32, 3/16 in.
• Generator Requirement: 50 kVA
• Dimensions (H x W x D): 52.6 in. H x 23.1 in. W x 41.6 in. D
• Weight: 320 lb
• Weldable Metals: Aluminum, Specialty Metals, Stainless Steel, Steel
• Country of Origin: United States
• Series: DynastyAE
• Compliance: CSA Certified; CE IEC 60974 Series
