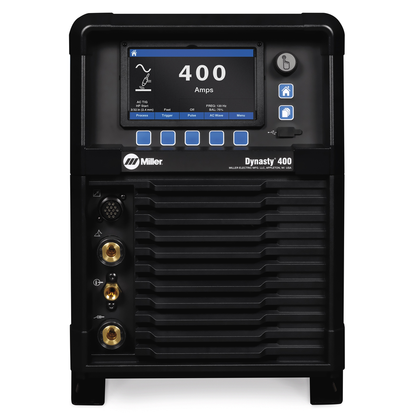

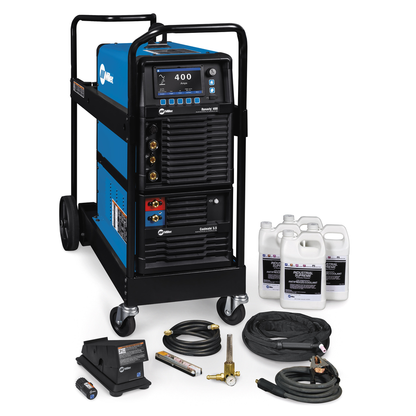

Miller Electric Dynasty 400 208-600 V, Wireless Foot Control Complete - 951000002

The Dynasty 400 Series is a powerful, compact power source capable of welding up to 5/8 in. aluminum. Total arc control provides maximum productivity and weld quality while conserving energy compared to traditional welding machines.

Features

• AC Frequency Control: Control the width of the arc cone and can improve directional control of the arc with adjustments between 50-150 Hertz.
• QuietPulse™: QuietPulse is activated by changing the waveshape for DC pulse welding, creating a slower, more fluid transition between the background and peak amperage to create the least possible audible noise.
• Intuitive Interface LCD Display: Ensure proper machine setup and parameter selection with informative on-screen explanations and dynamic images.
• Program Memory: Allows easy naming, saving and recalling up to 99 custom weld programs.
• Auto-Line™ Technology: Allows hookup to either single-phase or three-phase primary input voltage, 208-600 volts dependent on the machine, with no manual linking, providing convenience in any job setting. An ideal solution for dirty or unreliable input power.
• Stick Features: Tailored arc control (DIG) allows the arc characteristics to be changed for specific applications and electrodes. Smooth running 7018 or stiffer, more penetrating 6010. Hot Start™ adaptive control provides positive arc starts without sticking.
• Locks and Limits: Provides control of the weld parameter ranges minimizing deviations from the welding procedure specifications (WPS).
• Blue Lightning™: High-frequency (HF) arc starter for non-contact arc initiation. Provides more consistent arc starts and greater reliability compared to traditional HF arc starters.
• Pro-Set™ Feature: This feature eliminates the guesswork when setting weld parameters. Use Pro-Set when you want the speed, convenience and confidence of pre-set controls. Simply select the feature and adjust until Pro-Set appears on the display. The Pro-Set feature is available for Balance, Frequency, Pulse and DIG parameters.
• USB Port: Provides the ability to easily update software, back-up settings and transfer saved weld programs from one unit to the next.

• Amperage Range: 3 A - 400 A
• Input Voltage: 208-600 V
• Input Phase: 1- and 3-Phase
• Max Open Circuit Voltage: 75 VDC
• Current Type: AC / DC
• Material Thickness Display: Aluminum 0.015 in. (0.4 mm) - 5/8 in. (15.9 mm); Steel 0.012 in. (0.3 mm) - 5/8 in. (15.9 mm)
• Weld Output: CC
• Dimensions (H x W x D): 24.125 x 13.875 x 24.313 in. (613 x 352 x 618 mm)
• Weight: 246 lb
• Length: 41.6 in.
• Width: 23.1 in.
• Height: 43.1 in.
• Input Hz: 50/60 Hz
• Weldable Metals: Aluminum; Specialty Metals; Stainless Steel; Steel
• Metal Type: Aluminum; Steel
• Series: Dynasty
• Country of Origin: United States
